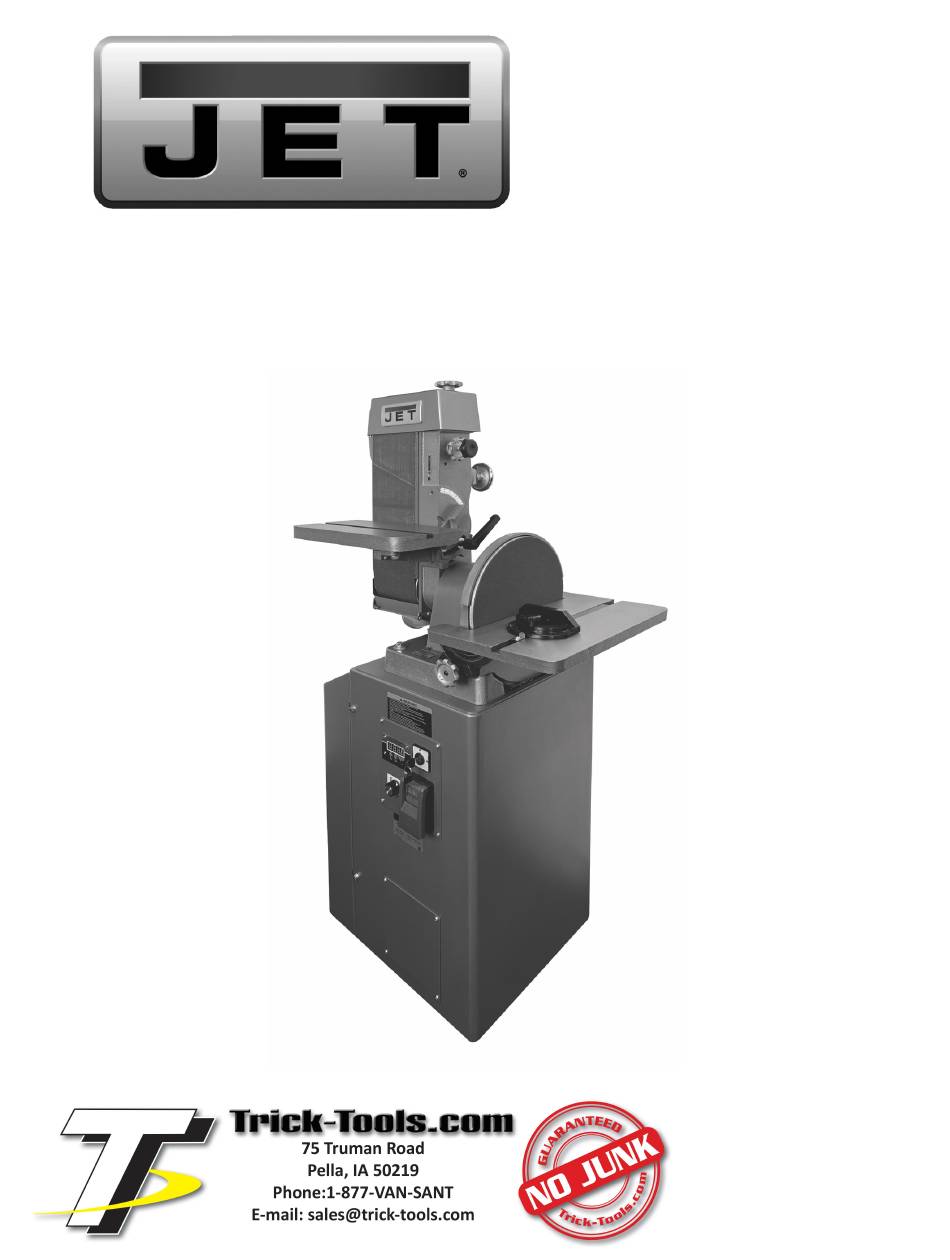

- Page 1 Operating Instructions and Parts Manual Disc/Belt Sander Model: J-64812VS Part No. M-810500 Edition 1 05/2023 Copyright ©2023, JET...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
2.0 Table of Contents Section Page 1.0 Warranty and Service ........................... 2 2.0 Table of Contents ............................3 3.0 Safety Warnings ............................4 4.0 Product Overview ............................6 4.1 Product Dimensions ..........................6 5.0 Specifications ..............................7 6.0 Electrical Connections ..........................8 6.1 Single Phase Electrical Hookup ....................... -
Page 4: Safety Warnings
Read and follow these simple rules for best results maintenance is done on the machine. and full benefits from your machine. Used properly, JET machinery is among the best in design and 14. Maintain all machine tools with care. Follow all safety. However, any machine used improperly can maintenance instructions for lubricating and the be rendered inefficient and unsafe. - Page 5 15. If there is any risk of tipping or sliding, the injury if contacted or inhaled. To avoid such injuries, machinery must be anchored to the floor. must comply with following safety requirements: 16. Secure your work. Use clamps or a vise to hold Always wear protective eyewear when operating your work, when practical.
-
Page 6: Product Overview
With very fine grits, this machine is typically considered a sanding machine. The instructions in this manual will help you use this machine safely and productively. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 7: Specifications
288 lbs. (131 kg.) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Electrical Connections
All electrical service work on your JET sander should be performed by a Level the machine by adjusting the 4-foot pad qualified, licensed electrician who is familiar with levelers in or out. -
Page 9: Disc Table Miter Parallelism Adjustment
Figure 1: Using a square to check the disc table scale Figure 3: Table attachment screws – loosen to adjust miter groove parallelism 7.3 Disc Table Miter Parallelism Adjustment 7.4 Disc Table Gap Adjustment Disconnect power to the machine to prevent Using a scale, check the gap between the edge accidental start-ups. -
Page 10: Belt Table Angle Adjustment
Move the measuring device to the opposite edge of the belt or platen and measure the distance to the miter slot. Adjust table loosening three attachment screws under the table, then move the table until the distance between the miter slot and belt or platen is equal on both sides. -
Page 11: Operating Instructions
8.2 Adjusting the Belt Sander Table You can tilt the table in a range between 20° upward and 45° downward. A single locking handle on the side of the table is used to lock and unlock the table to permit adjustment. There are two positive lock stop positions: at 90°... -
Page 12: Adjusting Disc Sander Table
Unlock the two locking knobs underneath the Never adjust the arm angle table at each end (See Figure 12). while the sander is running. Always turn off the Using the pointer and scale, set the angle to any motor before adjusting the arm angle. required angle between 20°... -
Page 13: Maintenance
Check the drums and platen for scoring or signs 9.0 Maintenance wear which might require service replacement. 9.1 Belt Replacement Check the height of the platen with a straight edge. If it is not 1/32 inch above the drums, Disconnect the power to the machine to prevent adjust it according to the instructions in Platen accidental start-ups. -
Page 14: Installing Abrasive Discs
Take the two keys off the idler pin bracket, wipe off, and re-grease. Reverse the above steps to make the machine ready for reinstallation of the belt according to the Belt replacement instructions. 9.3 Installing Abrasive Discs Disconnect power to the machine to prevent accidental start-ups. - Page 15 Figure 21: Removing the guard and drive disc, together Slide the disc and guard back into position. Reinstall the disc guard bolts underneath the table. Figure 19: Rotating the machine casting to remove Position the drive disc so that it is no more than the disc guard bolts 1/16 inch away from the table, then tighten BOTH set screws by inserting the hex wrench...
- Page 16 Figure 22: Loosening pulley set screws to allow the adjustment of pulley on arbor shaft...
-
Page 17: Troubleshooting
CAUTION: For all the electrical faults and corrections in the above table JET recommends the use of a qualified and licensed electrician for all circuit tracing, diagnosis, and repair. -
Page 18: Replacement Parts
11.0 Replacement Parts Replacement parts are listed on the following pages. To order parts or reach our service department, call 1- 800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. 11.1.1 Belt and Disc Sander Assembly –... -
Page 19: Disc Sander Assembly - Exploded View
11.2.1 Disc Sander Assembly – Exploded View... -
Page 20: Disc Sander Assembly - Parts List
11.2.2 Disc Sander Assembly – Parts List Index No Part No Description Size 1 ....J-5508447G ....Base ......................1 2 ....J-5508438G ....Bearing Housing .................... 1 3 ....5508441 ..... Drive Shaft ..................... 1 4 ....BB-6205ZZ ....Ball Bearing ............. 6205ZZ ......1 5 .... -
Page 21: Belt Sander Assembly - Exploded View
11.3.1 Belt Sander Assembly – Exploded View 11.3.2 Belt Sander Assembly – Parts List Index No Part No Description Size 1 ....5508458 ..... Clamp Ring ....................1 2 ....5544728 ..... Drum Spacer ............11 mm ......1 3 .... - Page 22 17 ....J-5052121G ....Bottom Guard ....................1 18 ....J-5508457G ....Platen ......................1 19 ....TS-2361101 ....Lock Washer ............M10 ....... 3 20 ....TS-1505021 ....Socket HD Cap Screw ..........M10x20 ......3 21 ....J-5051601AG ..... Side Guard ....................1 22 ....
-
Page 23: Stand Assembly - Exploded View
11.4.1 Stand Assembly – Exploded View... -
Page 24: Stand Assembly - Parts List
11.4.2 Stand Assembly – Parts List Index No Part No Description Size 1 ....J64812VS-001 ... Stand ......................1 2 ....J64812VS-302 ... Motor Bracket ....................1 3 ....J64812VS-303 ... Motor ............... 230V, 3Ph ..... 1 4 ....J64812VS-304 ... Motor Pulley ....................1 5 .... -
Page 25: Control Panel Assembly - Exploded View
11.5.1 Control Panel Assembly – Exploded View 11.5.2 Control Panel Assembly – Parts List Index No Part No Description Size 1 ....J64812VS-401 ... Control Panel ....................1 2 ....J64812VS-402 ... ON/OFF Switch ..................... 1 3 ....18MWEVS-045-06 ..Key Switch ............... A201A ......1 4 .... -
Page 26: Electrical Schematic - 230V
12.1 Electrical Schematic – 230V...
