Jet JBOS-5 Owner's Manual
Benchtop oscillating spindle sander
Hide thumbs
Also See for JBOS-5:
- Operating instructions manual (14 pages) ,
- Operating instructions and parts manual (16 pages) ,
- Operating instructions manual (16 pages)
Related Manuals for Jet JBOS-5
Summary of Contents for Jet JBOS-5

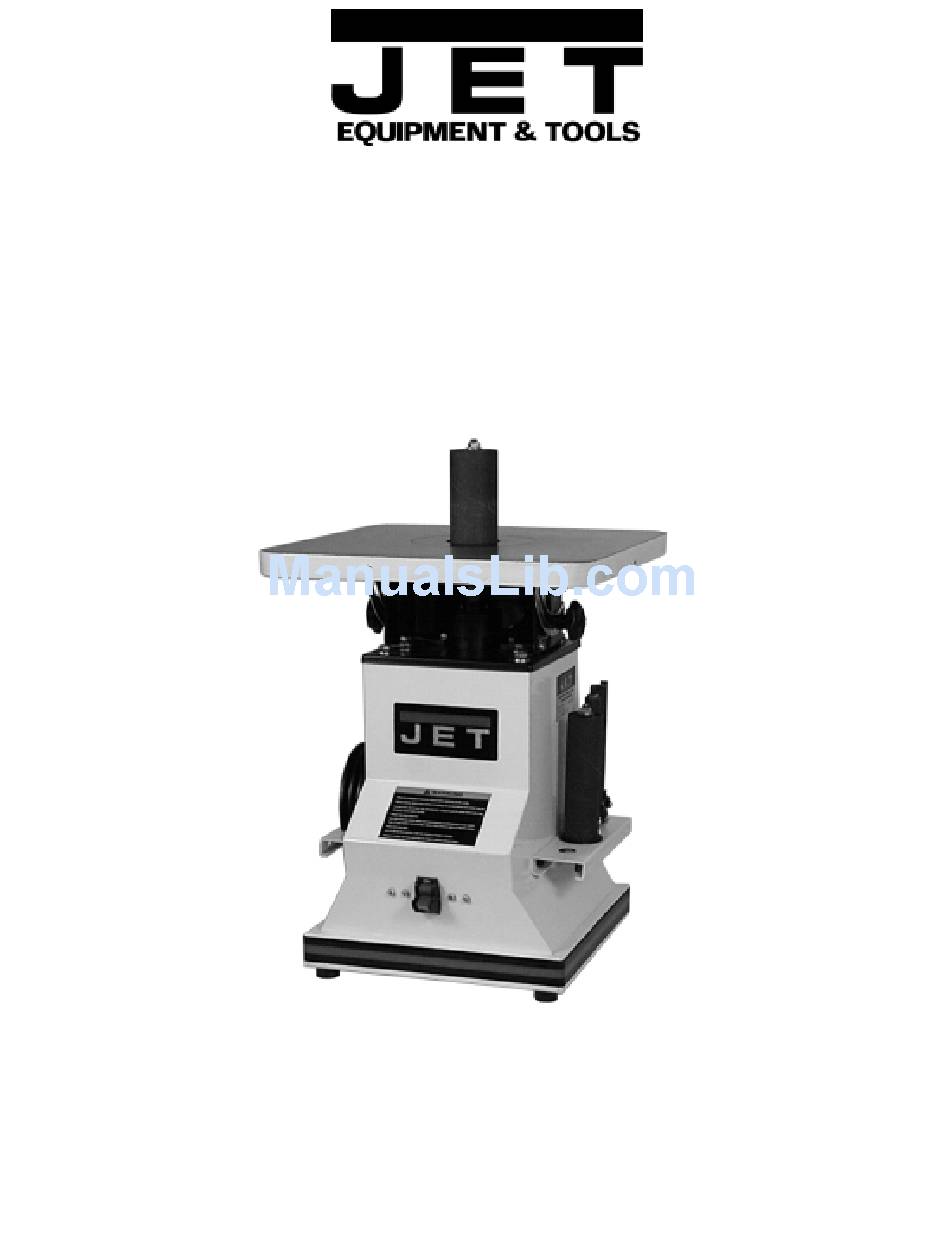

- Page 1 OWNER'S MANUAL JBOS-5 Benchtop Oscillating Spindle JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com Sander P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com Phone:253-351-6000 Fax: 1-800-274-6840 M-708404 10/00...
-
Page 2: Warranty
If our inspection discloses a defect, JET will either repair or replace the product or refund the purchase price, if we cannot readily and quickly provide a repair or replacement, if you are willing to accept such refund. JET will return repaired product or replacement at JET’s expense, but if it is determined there is no defect, or that the defect... -
Page 3: Warnings
Read and understand the entire contents of this manual before attempting assembly or operation. Do not use this tool until proper training and knowledge has been obtained. Keep guards in place and in working order. Keep fingers and hands away from the spindle while in operation. Avoid getting fingers too close to the drum. -
Page 4: Table Of Contents
Net Weight (lbs) ... 77 The specifications in this manual are given as general information and are not binding. JET Equipment & Tools reserves the right to effect, at any time and without prior notice, changes or alterations to parts,... -
Page 5: Unpacking And Clean-Up
Unpacking and Clean-Up 1. Finish removing all contents from the shipping container. Do not discard any shipping material until the sander is set up and running properly. 2. Report damage, if any, to your local distributor and, or shipping company. 3. -
Page 6: Setup For 90
The dust port (B, Fig. 4) can be hooked directly to a 2” hose for dust collection. See your local JET distributor for the complete line of dust collectors and the full line of JET Dust Collector Hoses and Accessories. Customize your installation and obtain maximum performance with JET's dust hoods, hoses, clamps, fittings, and blast gates. -
Page 7: Removing Spindles
Removing Spindles Using the provided wrenches, loosen the spindle nut (A, Fig. 5) clockwise while holding the spindle housing flat (B, Fig. 5) with the other wrench. Changing Sanding Sleeves 1/4", 1/2" and 5/8” 1. Loosen the clamp (A, Fig. 6) with a cross point screwdriver. -
Page 8: Parts Breakdown
Table Assembly for the JBOS-5... - Page 9 Base & Motor Assembly for the JBOS-5...
-
Page 10: Parts List
Parts List for the JBOS-5 Index Part Description Size Qty. 1...6286914W... Base..1 2...6286891... Top Plate..1 3...JBOS5-03 ... On/Off Switch ..1 4...6286915... Strain Relief Bushing ..1 5...6286916... Power Cord ..1 6...6286485... Phillips Pan Head Screw... M6x22mm...4 7...6286918... - Page 11 Index Part 53 ...JBOS5-53 ... Support Trunnion-Right..1 54 ...JBOS5-54 ... Support Trunnion-Left..1 55 ...JBOS5-55 ... JET Lock Knob ... M6x15 ...2 56 ...JBOS5-56 ... Hex Socket Cap Screw... M5x15 ...6 57 ...6286492... Set Screw... M6x5 ...1 58 ...6286961... Pointer..1 59 ...6286493...
- Page 12 575807 ...1/2" ...80 Grit 575808 ...1/2" ... 100 Grit 575809 ...1/2” ... 120 Grit 575810 ...5/8” ...60 Grit 575811 ...5/8” ...80 Grit 575812 ...5/8” ... 100 Grit 575813 ...5/8” ... 120 Grit 575838 ...1-1/2” ...60 Grit 575839 ...1-1/2” ...80 Grit 575840 ...1-1/2”...
