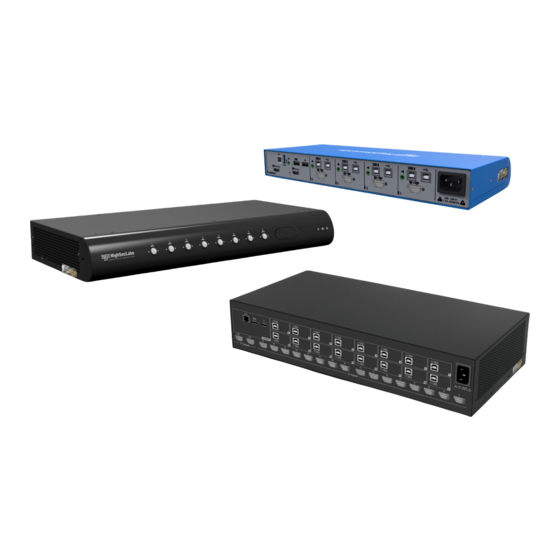

- Page 1 SECURE 4/8/16 PORT K VM COMBINER | USER MANUAL Models: SC42PHU-4 – 4 to 2 secure DP\HDMI to HDMI secure KVM combiner with DPP and analog audio SC82PH-4 – 8 to 2 DP\HDMI to DP\HDMI secure KVM combiner SC162PH-4 – 16 to 2 DP\HDMI to DP\HDMI secure KVM combiner HDC17272 Rev.
- Page 2 SECTIONS Table of Contents TaBlE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Operation .
- Page 3 SECTIONS Table of Contents INTRODUCTION HSL Secured KVM Combiner HSl’s secure KVM Combiner enables you to view and interact with multiple computers presented on the same display at the same time, using a single set of keyboard, video, mouse, USB, and audio, peripherals.
- Page 4 SECTIONS Table of Contents INTRODUCTION Secured KVM Combiner Main Features • Secured by design • 4K support HSl KVM Combiners are designed to meet security requirements for high quality viewing, HSl Combiners support 4K resolution at demanded by government agencies and military customers. both the source and the output.
-
Page 5: Before Installation
SECTIONS Table of Contents INTRODUCTION Before Installation Tamper-Evident Labels • The KVM Combiner Switch uses a holographic tamper-evident label Unpacking the Product to provide visual indications in case of enclosure intrusion attempts. • Before opening the product’s sealed packaging, inspect the seal’s These labels indicate white dots or the text “VOID”, once removed. - Page 6 SECTIONS Table of Contents INTRODUCTION KVM Specifications Part Number SC42PHU-4 SC82PH-4 SC162PH-4 No . of Sources Console Ports Displays 2 x HDMI 1.4 2 x HDMI 1.4 2 x HDMI 1.4 Max Output Resolution Supporting UHD 4K resolutions up to 3840x2160 Supporting UHD 4K resolutions up to 3840x2160 Supporting UHD 4K resolutions up to 3840x2160 Mouse and Keyboard...
- Page 7 SECTIONS Table of Contents INTRODUCTION Dual Connector Configuration of HSL Combiner To assure easy and intuitive interoperability with different sources the The interface used to configure the HSl KVM Combiner is comprised HSl KVM Combiner includes a special type of video input connector, of the keyboard hotkeys that can be entered by the user at any time.
- Page 8 SECTIONS Table of Contents INSTallaTION Cable Installation Overview Secondary Display Primary Display Smart-Card Computers Reader Audio Keyboard Mouse fUSB Cable Audio Cable Mouse Cable CONSOLE PORTS COMPUTER/SOURCE PORTS Display Cable Keyboard Cable HSL Secure 4/8/16-Port KVM Combiner User Manual...
- Page 9 SECTIONS Table of Contents INSTallaTION Cable Installation Overview - SC42PHU-4 10 9 Index: Primary Power DP/HDMI Inputs fUSB Output Keyboard/Mouse USB Mouse USB RDC Output Keyboard/Mouse USB Keyboard USB HDMI Output audio Input audio Output HDMI Output Notes: • Make sure all cables are connected and all computers are powered on before powering on the KVM Combiner. •...
- Page 10 SECTIONS Table of Contents INSTallaTION 8/16-Port Combiner Cable Installation Overview Secondary Display Primary Display Mouse Computers Keyboard Mouse Cable Display Cable CONSOLE PORTS COMPUTER/SOURCE PORTS Keyboard Cable HSL Secure 4/8/16-Port KVM Combiner User Manual...
- Page 11 SECTIONS Table of Contents INSTallaTION Cable Installation Overview - SC82PH-4/SC162PH-4 Index: Primary Power Mouse USB HDMI Output Keyboard/Mouse USB Keyboard USB HDMI Output DP/HDMI Inputs Remote Control Notes: • Make sure all cables are connected and all computers are powered on before powering on the KVM Combiner. •...
-
Page 12: Initial Setup
SECTIONS Table of Contents INSTallaTION Initial Setup HSl’s KVM Combiners are equipped with an OSD interface for easy Once the HSl KVM Combiner has been initiated, it defaults to a single installation and configuration. display at 4K 30HZ and presents all input channels in tile view. To open OSD, use the: Please note that if the display used is not supporting 4K user may get a “L Ctrl | R Ctrl | O”. - Page 13 SECTIONS Table of Contents OPERaTION Basic use of the KVM Combiner Channel Select To select a channel, use the: The HSl KVM Combiner enables you to view and interact with up to 16 “L Ctrl | L Ctrl | 1-0 / F1-F6” key combination.for example, to select computers simultaneously.
- Page 14 SECTIONS Table of Contents OPERaTION Cursor Navigation (Virtual Display Technology - VDT) To enable cursor navigation, use the: “L Ctrl | L Ctrl | F11 | c” key With cursor navigation, you can move from one highly isolated combination. (to disable, use: “L Ctrl | L Ctrl | F11 | b”). computer system to another, by simply moving the cursor across display borders.
- Page 15 SECTIONS Table of Contents OPERaTION Initial Setup Summary Toggling Options Most useful toggling options: Once you have connected all the sources and completed the initial Action steps, you can start workingwith the Combiner. The next section Keyboard Mouse Description explains howto switch between operation modes and operatethe Click the side-mouse Combiner, using its versatile view and control options.
- Page 16 SECTIONS Table of Contents OPERaTION Windows Resizing and View Mode HSl’s KVM Combiner gives you a lot of flexibility regarding windows positioning and different view modes. In general, any windows setup is possible! The section below explains how to increase or decrease window size, move it on the window, and choose scaling.
- Page 17 SECTIONS Table of Contents OPERaTION Resize channel window & content at the same time: Setup Channel 1 Channel 2 Channel 3 Channel 4 Scale Tile Setup Channel 1 Channel 2 Channel 3 Channel 4 Scale Tile Action Description Keyboard Mouse Touch Screen In Scale view: Tap 4 times on the enlarged window.
- Page 18 SECTIONS Table of Contents OPERaTION Drag and Rearrange Channel Windows: Setup Channel 1 Channel 2 Channel 3 Channel 4 Scale Tile Action Description Keyboard Mouse Touch Screen In Scale view: Tap 4 times on the enlarged window. Click the side-mouse button to toggle Enter System Mode CTRL | CTRL | o between System / User modes.
- Page 19 SECTIONS Table of Contents OPERaTION Presets It is possible to create and save user defined presets that enable you to switch quickly between different view modes. To create a preset, you can customize the display with the view you would like to see. Once ready, you can save the preset using the: ”L Ctrl | L Ctrl | f11 | Ins | Fx”...
- Page 20 SECTIONS Table of Contents OPERaTION Save custom views as presets: Action Description Keyboard Mouse Touch Screen In Scale view: Tap 4 times on the enlarged window. Click the side-mouse button to toggle between Enter System Mode CTRL | CTRL | o In Tile view: Touch and hold the uppermost right System / User modes.
- Page 21 SECTIONS Table of Contents OPERaTION View Mode Summary Direct Mode (Not applicable for 4-port) It is possible to view the input channel with extra low latency – below • Once in Operator mode, you can select any channel using the 10ms –...
-
Page 22: Advanced Settings
SECTIONS Table of Contents OPERaTION Advanced Settings Freeze Channel Layer By default, the KVM Combiner displays the active channel on top of all By default, when pressing or selecting the channel in the background the other channels. In some cases, you may want to change that and (channel x), that channel moves to the front and covers channel y. - Page 23 SECTIONS Table of Contents OPERaTION Custom Layout Remote Configuration While the 8 and 16 KVM Combiners are not controllable by an RS232, it The operation types are: is possible to use an external RS232-to-keyboard translator that enables 1. Window top-left X location you to send remote commands to the Combiner.
-
Page 24: Keyboard Shortcut Options
SECTIONS Table of Contents OPERaTION Keyboard Shortcut Options Note: To enable all commands below, first use the: L Ctrl | L Ctrl key combination. Action Description Keyboard Action Description Keyboard [1…0] F11 F R Switch to channel 1..10 (applicable for -N units only) Unfreeze all channel layers [F1…F6] Enable/disable virtual desktop on... - Page 25 SECTIONS Table of Contents OPERaTION Keyboard Shortcut Options Note: To enable all commands below, first use the: L Ctrl | L Ctrl key combination. Action Description Keyboard Action Description Keyboard F11 INS L L F3 m1 … F11 q Tile mode with full windows (also refer to kb shortcut 23) for example, m1 = 1, m2 = 6, m3 = 8.
- Page 26 SECTIONS Table of Contents OPERaTION Quick Control via Numeric Pad for even quicker control, use the shortcuts below, via the numeric pad on your keyboard. Note: To enable the use of the numeric pad shortcuts, you need to perform command 47 first. for example, to perform command #49, using six out of eight windows, Action Description Keyboard...
- Page 27 SECTIONS Table of Contents OPERaTION Keyboard Shortcut Options Action Description Keyboard Control exact channel location and appearance L Ctrl | L Ctrl | F11 | INS | O | “channel number” – Hide Channel The different operation types are: 1. Window top left X location 2.
