HighSecLabs SC21H-4 Quick Installation Manual

Quick Installation Guide
2 Ports High Security HDMI KVM Combiner Switches
Introduction
Thank you for purchasing this HSL Secure 2 Ports KVM Combiner. This KVM Combiner is designed for use in secure defense and intelligence
environments across wide security gaps.
Unlike a regular secure KVM switch that enables the user to view and interact with one of the connected computers at the time, this secure KVM
Combiner enables viewing all connected computers on the same screen simultaneously and interact with both easily and intuitively.
Objectives
This guide includes instructions for installing and basic operation of HSL's HDMI KVM Combiner SC21H-4 device.
For further assistance please refer to HSL website:

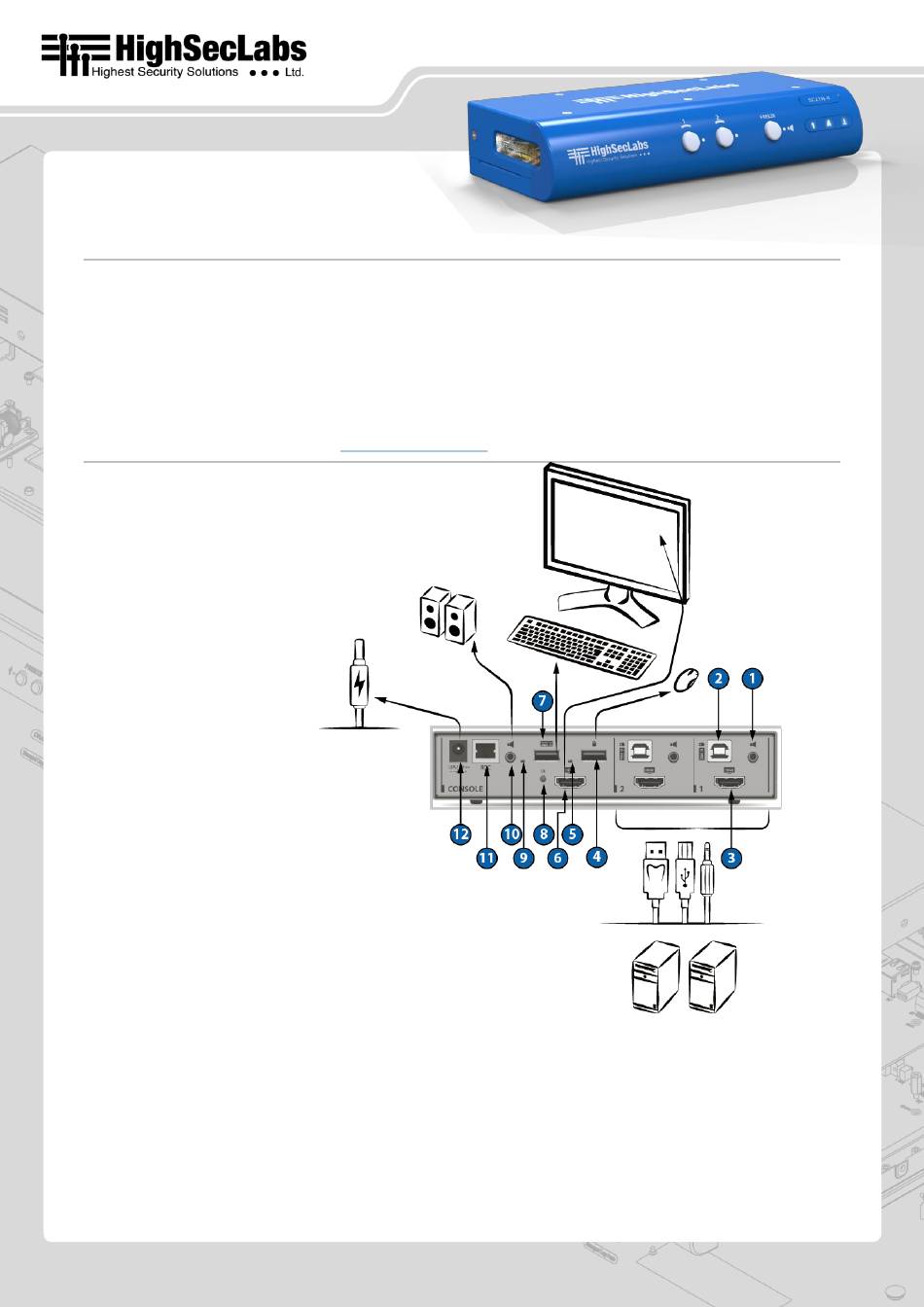

Rear Panel Index:
1. Analog audio input
2. PC Keyboard/Mouse input
3. HDMI input
4. Console Mouse
5. Console Mouse LED
6. HDMI Output
7. Console Keyboard
8. Display EDID LED
9. Console Keyboard LED
10. Analog audio output
11. Remote Desktop Control port (for AFP)
12. DC in
Installation Precautions:
Do not connect this product to computing devices that:
•
Are TEMPEST computers
•
Include telecommunication equipment
•
Include frame grabber video cards
•
Include special audio processing cards.
©2019 All rights reserved. HSL logo and product names are trademarks or service trademarks of HighSecLabs Ltd (HSL).
All other marks are the property of their respective owners. Images for demonstration purposes only.
http://www.highseclabs.com
WARNING: Peripherals' Warning - For security reasons, this product
does not support wireless keyboards. It is recommended not to connect
a microphone or headset to the audio output port.
NOTE: In order to comply with the product's Common Criteria
evaluation and to prevent unauthorized administrative access to the
product, the default administrator username and password must be
changed prior to first product use.
| QUICK INSTALLATION GUIDE
SC21H-4
HDC19962 Rev.1.0
