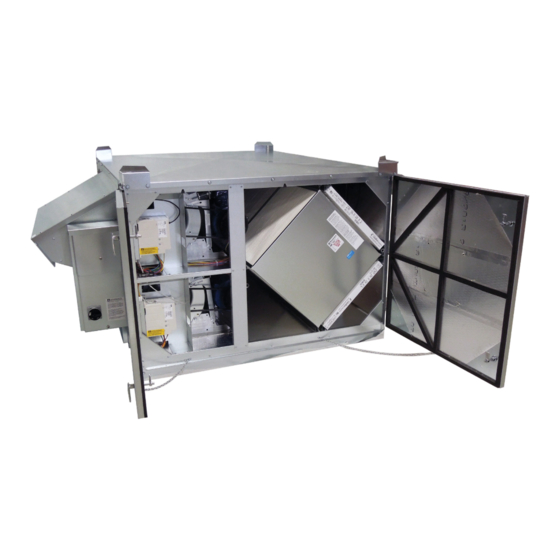

- Page 1 HE SERIES ERV Installation, Operation and Maintenance Manual HE4XRTH HE4XRTF HE4XRTR HE4XRTV HE-4XRTH Shown...
- Page 2 HE-Series Outdoor WARNING CAUTION ARC FLASH AND ELECTRIC SHOCK HAZARD RISK OF CONTACT WITH HIGH SPEED MOVING PARTS Arc flash and electric shock hazard. Disconnect all electric Disconnect all local and remote power supplies, verify with power supplies, verify with a voltmeter that electric power a voltmeter that electric power is off and all fan blades have is off and wear protective equipment per NFPA 70E before stopped rotating before working on the unit.
- Page 3 OWNER INFORMATION HE-Series Outdoor SAVE THIS MANUAL NOTICE This manual contains space for maintaining written records of unit maintenance and/ or repairs. See Section 7.7 Maintenance Records. At the time the ERV is commissioned, a maintenance schedule should be developed by the user to incorporate monthly and seasonal maintenance and include start-up maintenance tasks as described in this manual.
- Page 4 HE-Series Outdoor T H I S P A G E I S I N T E N T I O N A L LY L E F T B L A N K . 1.800.627.4499...
- Page 5 SPECIFICATIONS & DIMENSIONS 4XRT Energy Recovery Ventilator Standard ROOFTOP UNIT SPECIFICATIONS Ventilation Type: Options: Onboard variable frequency drives (VFDs) - Static plate, heat and humidity transfer both airstreams Typical Airflow Range: 1,000-4,400 CFM Shaft grounding ring on motors with VFDs AHRI 1060 Certified Core: Four L125-G5 Fused disconnect Standard Features:...
- Page 6 SPECIFICATIONS & DIMENSIONS Subject to change without notice: RENEWAIRE.COM | 1.800.627.4499...
- Page 7 SPECIFICATIONS & DIMENSIONS Subject to change without notice: RENEWAIRE.COM | 1.800.627.4499...
- Page 8 TABLE OF CONTENTS HE-Series Outdoor 1.0 OVERVIEW 5.5.1 Generic Single-Phase Wiring Schematic ......20 5.5.2 Generic Three-Phase Wiring Schematic ......21 1.1 DESCRIPTION ............11 5.5 EXTERNAL LOW VOLTAGE CONTROL WIRING CONNECTIONS ............22 1.2 AIRFLOW ..............11 1.2.1 Airflow in HE4XRTH ............12 5.5.1 Single 2 - Wire Control, Unpowered ........22 1.2.2 Airflow in HE4XRTF ............12 5.5.2 Single 2 - Wire Control, Separate Power ......22 1.2.3 Airflow in HE4XRTR ............12...
- Page 9 TABLE OF CONTENTS HE-Series Outdoor 7.7 MAINTENANCE RECORDS ........31 7.8 SERVICE PARTS ........... 34 8.0 TROUBLESHOOTING 9.0 FACTORY ASSISTANCE TABLE OF ILLUSTRATIONS Figure 1.2.0 Airflow Orientations ..........12 Figure 2.4.0 E-Box with Motor Starters ........13 Figure 3.2.0 HE4XRT Weights and COG ........15 Figure 4.2.0 HE4XRT Service Clearances ........
- Page 10 CONFIGURATION CODE HE-Series Outdoor CONFIGURATION CODE H E - 4 X MODEL NUMBER DIGIT NUMBER Digit 9: Digit 19: Orientation Unit Control (see Restriction 5) "V", "H", "R", "F" "A" = Standard Unit Control Wiring "V" = Onboard VFD Both Airstreams Digit 11: Wall Type "S"...
- Page 11 OVERVIEW HE-Series Outdoor 1.0 OVERVIEW 1.1 DESCRIPTION NOTE: This unit is The HE4XRT Energy Recovery Ventilator is a device for recovering both sensible energy (heat) and an Energy Recovery latent energy (moisture) from the Exhaust Air from an Occupied Space and injecting those energies Ventilator, or ERV.
- Page 12 OVERVIEW HE-Series Outdoor HERT except 6x 8x, LERT HERT except 6x 8x, LERT HERT except 6x 8x, LERT HERT except 6x 8x, LERT DESCRIPTION OF DUCT MODEL MOUNTING OPTION CONNECTION CONFIGURATION Room Air [RA] enters bottom of unit. HE4XRTV Roof Curb Fresh Air [FA] exits bottom of unit.
- Page 13 COMPONENTS HE-Series Outdoor 2.2 ENTHALPIC CORES CAUTION All HE4XRT ERVs use four static-plate enthalpic cores. The enthalpic cores transfer both latent Low air flow can cause and sensible energies between the airstreams. Cores are bi-directional and may be rotated in fouling of the enthalpic their mounting hardware, but care must be taken to install the correct side of the core toward cores.
- Page 14 SHIPPING/RECEIVING HE-Series Outdoor 2.6 FACTORY INSTALLED OPTIONS All HE4XRT units can be ordered with factory installed options. See Unit Configuration Code on page 10. Factory installed options will have supplemental manuals shipped with the unit. For Isolation Dampers, see Isolation Dampers Supplemental Manual. For Commercial Controls, see Commercial Controls Supplemental Manual.
- Page 15 SHIPPING/RECEIVING HE-Series Outdoor 3.2 RIGGING AND CENTER OF GRAVITY 3.2.1 HE4XRT Hoisting Weights and COG BASIC UNIT WEIGHTS (lbs.) UNIT COG RANGE Motors UNIT 2 HP 3 HP 5 HP ADDITIONAL WEIGHTS FOR OPTIONS (lbs.) Options UNIT Double Wall 74.50" VFDs RA or EA Damper OA or FA Damper...
- Page 16 UNIT PLACEMENT HE-Series Outdoor 4.2 SERVICE CLEARANCES 10" X 52" Damper Location Opening (Optional) (Recessed 3/4") CURB 4X 31" 33 5/8" 76 1/2" O.D. Minimum Service Area 54 1/4" Door Swing Door Swing 37" 4 5/8" 72 3/4" I.D. 19 1/8" FA (RTV) 39 5/8"...
- Page 17 INSTALLATION HE-Series Outdoor 5.0 INSTALLATION 5.1 CURB SPECIFICATIONS For all rooftop curbs, the curb is to be placed in a location specified by the Architect/Engineer as being capable of supporting all known loads. Curbs are to be installed using Industry Best Practices.
- Page 18 INSTALLATION HE-Series Outdoor 5.2.2 Duct Insulation If the inside ducts run through un-conditioned spaces, they must be insulated, with a sealed vapor barrier on both inside and outside of insulation. 5.2.3 Use Dampers to Set and Balance Airflow Rates In most applications, the airflow rate for both the Fresh Air and the Exhaust Air should be roughly equal (or “balanced”) for best performance of the HE4XRT Unit.
- Page 19 INSTALLATION HE-Series Outdoor 5.3.2 Low Voltage Control System NOTICE This ERV is provided with a Class II 24 VAC power supply system that operates the unit’s If primary-side voltage contactor(s) for HE4XRT. The ERV’s 24 VAC Power Supply can also be used to power the is 230 VAC, move black externally-installed controls system: up to 8VA of power is available.
- Page 20 INSTALLATION HE-Series Outdoor 5.4 WIRING SCHEMATICS 5.4.0 GENERIC SINGLE-PHASE WIRING SCHEMATIC 1.800.627.4499...
- Page 21 INSTALLATION HE-Series Outdoor 5.4.1 GENERIC THREE-PHASE WIRING SCHEMATIC 1.800.627.4499...
- Page 22 INSTALLATION HE-Series Outdoor 5.6 EXTERNAL CONTROL CONNECTIONS NOTE: The sim- 5.6.1 Single 2-Wire Control, Unpowered plified schematics below show only See Figure 5.6.0 if the control requires no power from the ERV and acts as a simple ON/OFF switch. the relevant portions of The control must not supply any power to the ERV.
- Page 23 INSTALLATION HE-Series Outdoor AN EXTERNAL CONTROL USING UNIT'S UNIT INTERNAL CONTROL WIRING 24VAC POWER SUPPLY (SIMPLIFIED) 24VAC Available at Terminals 1 & 2 Unit's 24VAC Power Supply Connect Terminals 2 & 3 Isolation Relay Coil (Fresh Air) Isolation Relay Coil (Exhaust Air) Connect Terminals 4 &...
- Page 24 OPERATION HE-Series Outdoor 5.6 QUICK-START FOR TESTING CORRECT 3PH WIRING NOTE: Any chang- All units that run on 3 phase power should be test-run immediately after high voltage wiring es to unit low-volt- connections are made. This will verify that the three phases are properly connected, that the age wiring should dampers will open and close properly and the fans are working properly.
- Page 25 OPERATION HE-Series Outdoor 6.3 UNIT STARTUP 6.3.1 Fixed-Speed Units Most fixed-speed units do not have any external controlling signals and only require turning on the disconnect switch, located on the E-Box. When the disconnect switch is turned ON, any dampers will first move into their correct operating positions and then power is suppled to the motor contactors, causing the fans to run.
- Page 26 OPERATION HE-Series Outdoor 6.4.1 All Fixed-Speed Units For all fixed-speed units, manometer readings are taken and then the adjustable sheaves on the motors are adjusted to reset fan speeds. Equipment Required A magnehelic gauge or other device capable of measuring 0–1.0 in. water of differential pressure.
- Page 27 (4)20x20x2 MERV 8 (IOM) OPERATION HE-Series Outdoor CAUTION DIFFERENTIAL STATIC ACROSS CORE DSP VS. CFM The proper operating air- DP (H 0.20 0.30 0.40 0.50 0.60 0.70 0.80 flow range for this model is Fresh Air (FA) 1450 2030 2600 3180 3760 4340...
- Page 28 OPERATION HE-Series Outdoor 6.4.3 Sheave Adjustment All fan motors that are not controlled by a VFD are equipped with an adjustable sheave. These adjustable sheaves must be re-set in the field to attain optimum performance of the ERV. This adjustment is to be done after all ductwork is connected. Adjustable sheaves are held in position on the drive motor shaft by a set screw that is normally hidden until the belt(s) is removed.
- Page 29 MAINTENANCE HE-Series Outdoor 7.0 UNIT MAINTENANCE WARNING RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the Danger of injury if unit primary areas of attention are the air filters, periodic lubrication of the fan motors and annual starts unexpectedly.
- Page 30 MAINTENANCE HE-Series Outdoor 7.5.1 Belt Tension Premature or frequent belt failures can be caused by improper belt tension (either too loose or too tight) or misaligned sheaves. Abnormally high belt tension or drive misalignment will cause excessive bearing loads and may result in failure of the fan and/or motor bearings. Conversely, loose belts will cause squealing on start-up, excessive belt flutter, slippage and overheated sheaves.
- Page 31 MAINTENANCE HE-Series Outdoor 7.6 ENTHALPIC CORES CAUTION Risk of DAMAGE TO ENTHALPIC CORES Whenever working within the ERV cabinet, protect the enthalpic cores from accidental damage. The core media is subject to damage from dropped tools or other foreign objects. 7.6.1 Enthalpic Core Maintenance The enthalpic core media is a fibrous material that must be kept clean at all times.
- Page 32 MAINTENANCE HE-Series Outdoor 7.7 MAINTENANCE RECORDS MAINTENANCE LOG ENTER DATES OF SERVICE OA FILTER RA FILTER INSPECTION/ CLEAN CLEAN INITIALS CHANGE CHANGE CLEANING CORE BLOWERS 1.800.627.4499...
- Page 33 MAINTENANCE HE-Series Outdoor MISCELLANEOUS SERVICE NOTES DATE SERVICE INITIALS 1.800.627.4499...
- Page 34 MAINTENANCE HE-Series Outdoor 7.8 SERVICE PARTS FIGURE 7.8.0 HE4XRT SERVICE PARTS 1.800.627.4499...
- Page 35 TROUBLESHOOTING HE-Series Outdoor 8.0 TROUBLESHOOTING If problems occur with a RenewAire ERV, the primary resources for trouble-shooting are the unit as-built wiring schematics and the Sequence Of Operation (SOO) for each control scheme. 9.0 FACTORY ASSISTANCE In the unlikely event that you need assistance from the factory for a specific issue, make sure that you have the information called for in the Unit Records page in the Owner Information section of this manual.
- Page 36 About RenewAire For over 35 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size. This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
