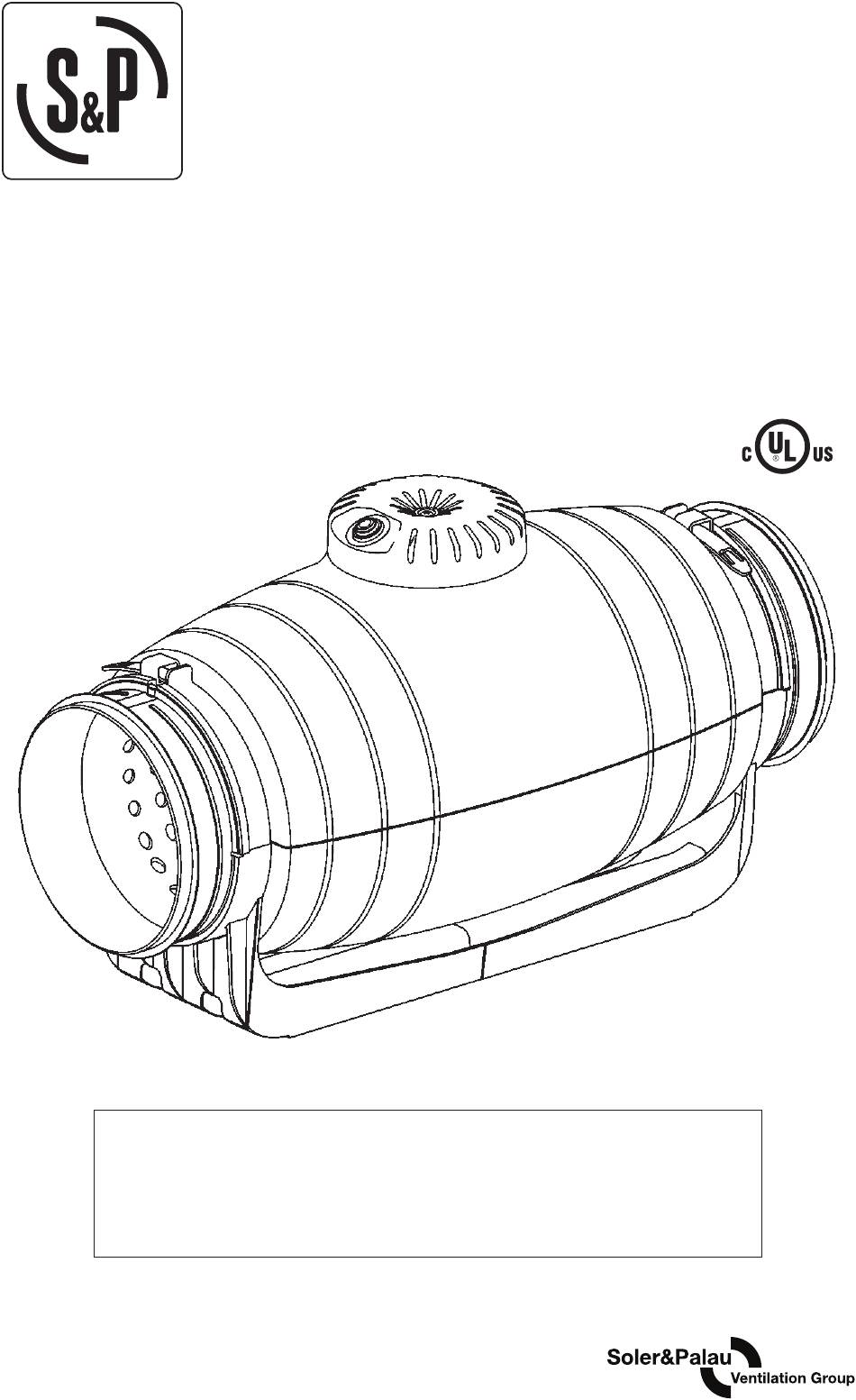

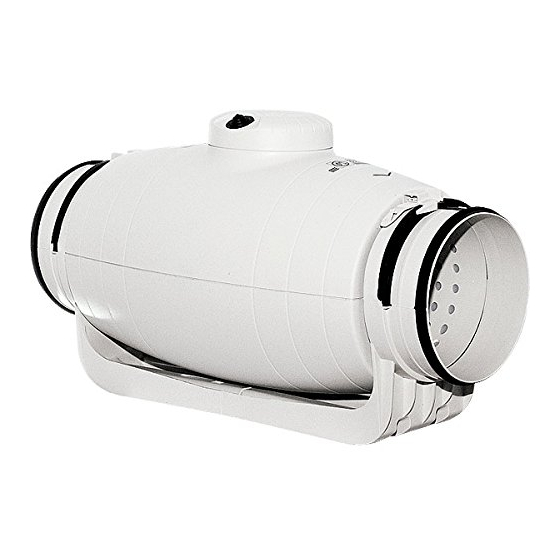

TD-SILENT SERIES (TD)
MIXED FLOW IN LINE DUCT EXHAUST FANS
Models TD-125XS, TD-150S, TD-200S
READ AND SAVE THESE INSTRUCTIONS
The purpose of this manual is to aid in the proper installation and operation of fans
manufactured by S&P. These instructions are intended to supplement good general
practices and are not intended to cover detailed instruction procedures, because of
the wide variety and types of fans manufactured by S&P.
TD-SILENT-IOM_V.3_03-2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Soler & Palau TD-SILENT SERIES
Summary of Contents for Soler & Palau TD-SILENT SERIES
- Page 1 TD-SILENT SERIES (TD) MIXED FLOW IN LINE DUCT EXHAUST FANS Models TD-125XS, TD-150S, TD-200S READ AND SAVE THESE INSTRUCTIONS The purpose of this manual is to aid in the proper installation and operation of fans manufactured by S&P. These instructions are intended to supplement good general practices and are not intended to cover detailed instruction procedures, because of the wide variety and types of fans manufactured by S&P.
-
Page 2: Installation Instructions
Installation Instructions TD-SILENT WARNINGS READ AND SAVE THESE INSTRUCTIONS. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! CAUTION: (1) For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. (2) The TD-SILENT is suitable for operation within indoor environments only. - Page 3 ELECTRICAL CONNECTION All TD-SILENT series fans operate from a standard 120V, 60Hz AC electrical supply. All wiring must be carried out in accordance with National Electrical Code and all applicable state and local buildings codes.
- Page 4 IMPORTANT: BEFORE CARRYING OUT ANY MAINTENANCE OR SERVICING, ENSURE THE UNIT IS DISCONNECTED FROM THE MAIN ELECTRICAL SUPPLY. All TD-SILENT series exhaust fans incorporate sealed for life bearings and therefore do not require any lubrication. We would recommend inspection of the product at least once every twelve (12) months to avoid the excessive accumulation of dust and dirt on the impeller.
- Page 5 2. Motor with Speed Controller WARRANTY S&P USA - S&P Canada warrant that the eGED/eGSD will be free from defective materials and workmanship for the period of (5) years from the date of original purchase. In the event that we find any part is defective the product will be repaired or, in the Company’s discretion, replaced without charge provided that the product has been installed in accordance with the enclosed instructions and all applicable EPA Standards and state and local building codes.
- Page 6 LIMITATION OF WARRANTY AND LIABILITY: This warranty does not apply to any such S&P product or parts which have failed as a result of faulty installation or abuse, or incorrect electrical connections or alterations, made by others, or use under abnormal operating conditions or misapplication of the products and parts. Soler &...
