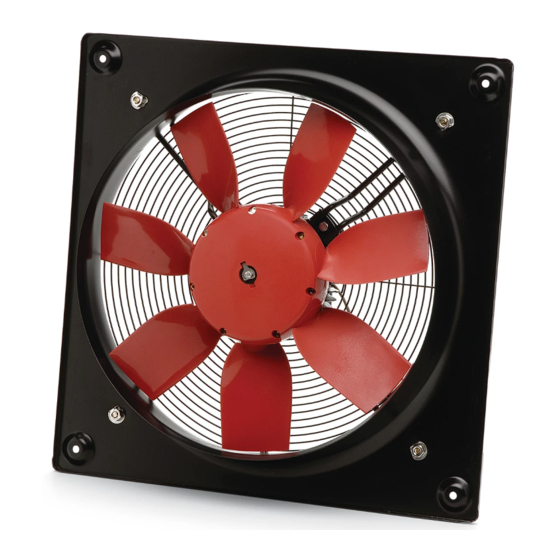

COMPACT SERIES
Wall and Duct Mounted Axial Fans
Ventiladores Helicoidales Murales y Tubulares
Models:
Wall Axial Series
WA12 (HCGB/4-12/G-A)
WA16 (HCGB/4-16/G-A)
WA18 (HCGB/4-18/G-A)
WA20 (HCGB/4-20/G-A)
INSTALLATION AND WIRING INSTRUCTIONS
Duct Axial Series
DA12 (TCGB/4-12/G-B)
DA16 (TCGB/4-16/G-B)
DA18 (TCGB/4-18/G-B)
DA20 (TCGB/4-20/G-B)
INSTRUCCIONES DE MONTAJE
(English / Español)
READ AND SAVE THESE INSTRUCTIONS
LEER Y GUARDAR ESTAS INSTRUCCIONES
U L
C
U
S
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Soler & Palau WA12
Summary of Contents for Soler & Palau WA12
- Page 1 COMPACT SERIES Wall and Duct Mounted Axial Fans Ventiladores Helicoidales Murales y Tubulares Models: Wall Axial Series Duct Axial Series WA12 (HCGB/4-12/G-A) DA12 (TCGB/4-12/G-B) DA16 (TCGB/4-16/G-B) WA16 (HCGB/4-16/G-A) WA18 (HCGB/4-18/G-A) DA18 (TCGB/4-18/G-B) WA20 (HCGB/4-20/G-A) DA20 (TCGB/4-20/G-B) INSTALLATION AND WIRING INSTRUCTIONS INSTRUCCIONES DE MONTAJE (English / Español)
- Page 2 • Figure (1). Installation/Instalacion COMPACT WALL AXIAL FANS / VENTILADORES HELICOIDALES MURALES Models / Modelos: WA12 (HCGB/4-12/G-A) WA16 (HCGB/4-16/G-A) WA18 (HCGB/4-18/G-A) WA20 (HCGB/4-20/G-A) Exhaust wire Louvre protection Shutter grill Persiana Defensa • COMPACT WALL AXIAL FANS / VENTILADORES HELICOIDALES MURALES...
- Page 3 • Figure (2). Installation/Instalacion COMPACT DUCT AXIAL FANS / VENTILADORES HELICOIDALES TUBULARES Models / Modelos: DA12 (TCGB/4-12/G-B) DA16 (TCGB/4-16/G-B) DA18 (TCGB/4-18/G-B) DA20 (TCGB/4-20/G-B) Flexible flange connector Flexible flange connector Wire protection grill Acoplamiento elastico Acoplamiento elastico Defensa Matching flange Duct Matching flange Duct Conducto...
- Page 4 ENGLISH COMPACT WALL AND DUCT AXIAL FANS The COMPACT Wall and Duct Axial fan series has been manufactured in accordance with the rigorous standards of production as defined by the International Quality Standards ISO 9001. All components have been checked and tested at the end of the manufacturing process.
- Page 5 IMPORTANT: When a guard is fitted to the exhaust side of the fan, ensure that there is a gap of at least 4” between the face of the guard and any moving part. MOUNTING: Prepare a circular hole in the wall through which the space is to be vented. The size of the hole and the fixing positions are given in Figure (1).
- Page 6 WARRANTY VALIDATION The end user must keep a copy of the Bill of Sale to verify purchase date. THE ABOVE FIVE (5) YEAR WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, WRITTEN OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE. IN NO EVENT, SHALL SOLER &...
- Page 7 aplicación y conectarse a un CFCI (Ground Fault Circuit Interrupter) – circuito protegido. h) Nunca colocar un interruptor donde se podría alcanzar dede la bañera o la ducha. Esta gama de ventiladores no son permitado que usar las ventiladores de con reguladores de velocidades. ADVERTENCIA: Utilizar solamenta para la ventilación general.
- Page 8 LA GARANTÍA NO CUBRE Daños de transporte, que sean internos o visibles. La reclamación debe ser presentada al transpotista. Daños debidos a una conexión o instalación incorrecta Daños debidos a catástrofes naturals o como resultado de una utilización incorrecta como: mantenimiento incorrecto; mal uso;...
