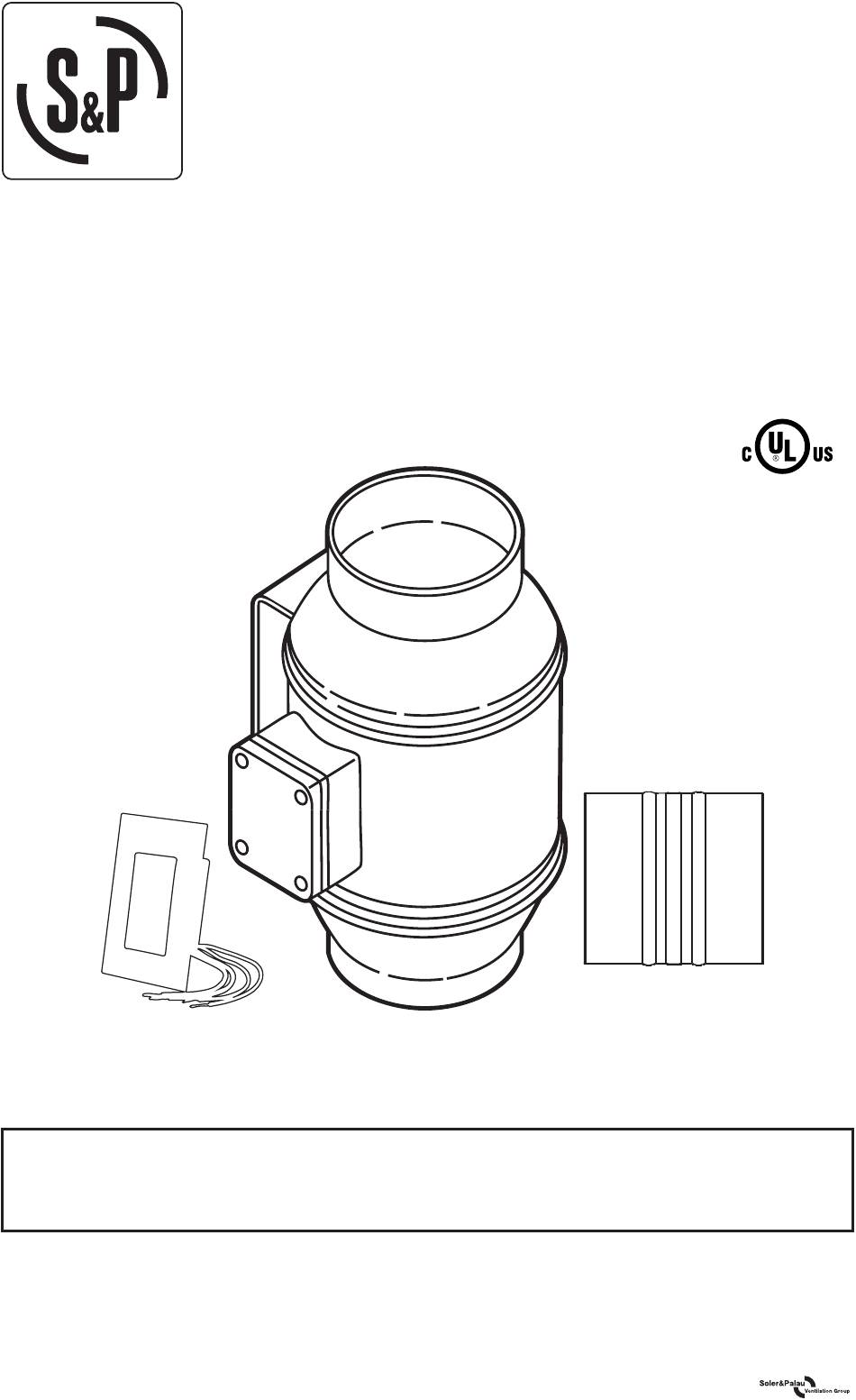

- Page 1 OUTSIDE AIR KIT-125 (OSAK-125) INCLUDES TD-125, CAR-125, FT247 INSTALLATION AND WIRING INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS New July 6, 2017...
- Page 2 IMPORTANT: Model TD-125 is double insulated and is not provided with external OSAK-125 WIRING DIAGRAM ground wire 120 VAC LINE IN BLACK BLACK WHITE FT247 60 HZ WHITE NEUTRAL TD-125 GREEN GROUND OSAK-125 WIRING DIAGRAM - WITH SPEED CONTROL SC-15 120 VAC LINE IN BLACK FT247 60 HZ (2525.5UL)
- Page 3 GREEN GROUND • TD-125 and FT247 with Speed Controller OSAK-125 WIRING DIAGRAM - WITH SPEED CONTROL SC-15 120 VAC LINE IN BLACK BLACK WHITE FT247 60 HZ (2525.5UL) WHITE NEUTRAL TD-125 GREEN GROUND ENGLISH TD - MIXVENT SERIES The TD - MIXVENT mixed flow range of in-line duct exhaust fans have been manufactured in accordance with the rigorous standards of production as defined by the International Quality Standards ISO 9001.
- Page 4 cannot be locked; securely fasten a prominent warning device such as a tag to the service panel. (c) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes & standards including fire rated construction.
-
Page 5: Electrical Connection
To ensure quiet operation of ENERGY STAR qualified inline and remote fans, each fan shall be installed using sound attenuation techniques appropriate for the installation. For bathroom and general ventilation applications, at least 8 feet of insulated flexible duct shall be installed between the exhaust or supply grille(s) and the fan. -
Page 6: Warranty Validation
WARRANTY VALIDATION The end user must keep a copy of the Bill of Sale to verify purchase date. THE ABOVE FIVE (5) YEAR WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, WRITTEN OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE. IN NO EVENT SHALL SOLER & PALAU USA - SOLER &... - Page 7 Setting Current Time: Press and HOLD the “CLOCK” key during this procedure. 1. Press the “HOUR” key to advance the hours. 2. Press the “MIN” key to advance the minutes. 3. Press the “DAY” key to advance the day. 4. If any keys are pressed for a prolonged period, the display will advance rapidly. 5.
- Page 8 This table shows what airflows the OSAK-125 kit can meet if you choose to program the FT247 to run 25% of every 4 hour period. NUMBER OF BEDROOMS DWELLING UNIT FLOOR AREA 0 - 1 2 - 3 4 - 5 6 - 7 >...
- Page 9 This table shows what airflows the OSAK-125 kit can meet if you choose to program the FT247 to run 66% of every 4 hour period. NUMBER OF BEDROOMS DWELLING UNIT FLOOR AREA 0 - 1 2 - 3 4 - 5 6 - 7 >...
- Page 10 Block Programming: When programming “ON/OFF” events, all days are indicated by default. To change the day selection; simply keep pressing the “Day” key and the display will change as follows: Individual Day (MON, TUE, etc.); MON~FRI; SAT~SUN; MON~SAT; MON~SUN; MON-WEDFRI; TUE-THU-SAT; MON-WED; THU-SAT. Follow the steps above to complete programming.
