- Page 1 User Manual Model ID: OVATIONF265WW...
- Page 2 Edition Notes The Ovation F-265WW User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation F-265WW as of the release date of this edition. Trademarks Chauvet, the Chauvet logo, Chauvet Professional, Ovation, and Ovation F-265WW are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Static Mode ........................11 Master/Slave ........................11 Dimmer Curve ........................ 11 Dimmer Profiles......................11 LED Frequency ......................11 Fan Mode ........................12 Back Light ........................12 System Information ......................12 Zoom Reset........................12 Factory Reset......................... 12 Ovation F-265WW User Manual Rev. 7... - Page 4 Table of Contents 5. Technical Information ..............Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Ovation F-265WW User Manual Rev. 7...
-
Page 5: Before You Begin
Useful information. ® Any reference to power connections in this manual assumes the use of Neutrik ® powerCON cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation F-265WW User Manual Rev. 7... -
Page 6: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation F-265WW User Manual Rev. 7... -
Page 7: Safety Notes
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. • In the event of a serious operating problem, stop using immediately If a Chauvet product requires service, contact Chauvet Technical Support. Ovation F-265WW User Manual Rev. 7... -
Page 8: Introduction

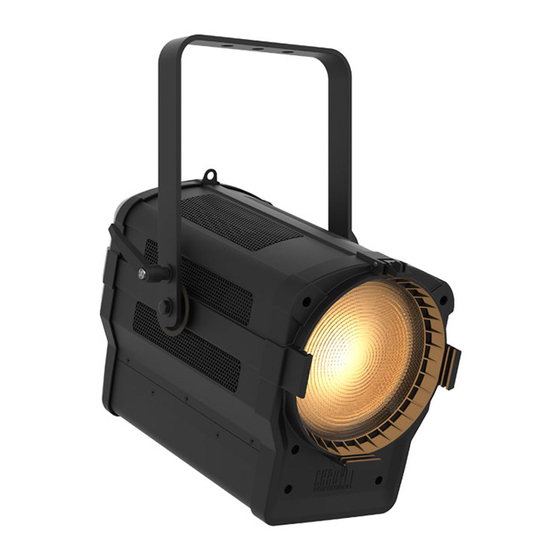

2. Introduction Description The Ovation F-265WW is a warm white Fresnel-style LED lighting fixture with 16-bit dimming resolution for smooth fades. It delivers a beautiful flat, even field of light. Its motorized zoom, with a range between 16° and 68°, can be controlled either manually or via DMX. Simple and complex DMX channel profiles offer programming versatility. -
Page 9: Product Dimensions
Introduction Product Dimensions 15.11 in 384 mm 8.11 in 7.56 in 206 mm 192 mm 12.59 in 320 mm 17.71 in 450 mm 10.63 in 270 mm Ovation F-265WW User Manual Rev. 7... -
Page 10: Setup
Always replace the blown fuse with another of the same type and rating. DMX Linking The Ovation F-265WW can be linked to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, each can be controlled individually with a single DMX controller. -
Page 11: Master/Slave Connectivity
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation F-265WW comes with a bracket to which a mounting clamp (sold separately) can be directly attached. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 12: Operation
Knob 1 Push then turn to increase or decrease the dimmer Knob 2 Push then turn to increase or decrease the zoom Control Options Set the Ovation F-265WW starting address in the 001–512 DMX range. This enables control of up to 102 products in the 5-channel 6Ch: 16bit-Full personality. Programming Refer to the Menu Map to understand the menu options. -
Page 13: Menu Map
Operation Menu Map Refer to the Ovation F-265WW product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (highest channel DMX Address 001–512 restricted to personality chosen) 1Ch: 8bit Dim 1-channel: 8-bit dimmer... -
Page 14: Dmx Values
000 255 0–100% 2Ch: 16bit Dim Channel Function Value Percent/Setting Dimmer 000 255 0–100% Dimmer Fine 000 255 0–100% 1Ch: 8bit Dim Channel Function Value Percent/Setting Dimmer 000 255 0–100% Ovation F-265WW User Manual Rev. 7... -
Page 15: Standalone Configuration
Select the desired option (Linear, Square, I Square, or SCurve). Dimmer Profiles This setting determines how fast the output of the Ovation F-265WW changes when the output value is modified. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 16: Fan Mode
Keep a safe distance from flammable objects. Back Light This setting allows for selection of the amount of time the backlight on the Ovation F-265WW’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 17: Technical Information
Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan using compressed air. Doing so could damage it. Ovation F-265WW User Manual Rev. 7... -
Page 18: Technical Specifications
Cooling System 113 °F (45 °C) Fan-assisted convection I/O Connector Channel Range 3- and 5-pin XLR 1, 2, or 6 Ordering Product Name Item Name Item Code UPC Number Ovation F-265WW OVATIONF265WW 03031388 781462217365 Ovation F-265WW User Manual Rev. 7... -
Page 19: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation F-265WW User Manual Rev. 7...
