Additional description interfaces

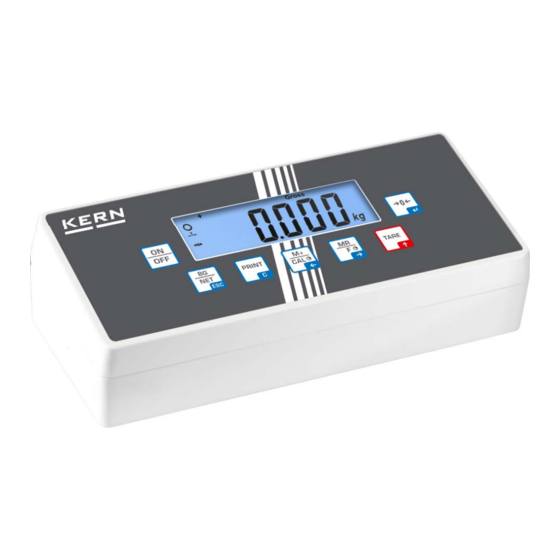

KERN KIB-TM
Version 1.2
2018-04
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
KIB-TM-ZB-e-1812

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIB-TM and is the answer not in the manual?

Questions and answers

Related Manuals for KERN KIB-TM

Summary of Contents for KERN KIB-TM

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Additional description interfaces KERN KIB-TM Version 1.2 2018-04 KIB-TM-ZB-e-1812...

  • Page 2: Table Of Contents

    Additional description interfaces Contents RS 232 (standard) ....................3 Technical data ........................... 3 Printer operation / sample logs (KERN YKB-01N) ................4 Output log (continuous output) ......................6 KERN Communications Protocol (KERN Interface Protocol) ............7 USB interface (KIB-A03) (optional) ..............8 Ethernet (optional) .....................

  • Page 3: Rs 232 (Standard)

    • Use a suitable cable to connect the display unit to the interface of the printer. Faultless operation requires an adequate KERN interface cable. • Communication parameters (baud rate, bits and parity) of display unit and printer must match.

  • Page 4: Printer Operation / Sample Logs (Kern Ykb-01N)

    1.2 Printer operation / sample logs (KERN YKB-01N) • Weighing 1. Continuous data output (menu setting P2 Com  Mode  Com  S0 on) Menu setting P2 Com  LAb 0 / Prt 0: **************************** **************************** ST, GS 53.2 kg US, GS 53.2 kg...
  • Page 5 P2 Com LAb 3 / Prt 4~7: P2 Com LAb 0/Prt 0: Symbols: Stable value Instable value GS / GW Gross weight Net weight Tare weight Number weighing processes TOTAL Total of all individual weighings <lf> Space line <lf> Space line KIB-TM-ZB-e-1812...

  • Page 6: Output Log (Continuous Output)

    1.3 Output log (continuous output) • Weighing HEADER1: ST=STABLE， US=UNSTABLE HEADER2: NT=NET， GS=GROSS KIB-TM-ZB-e-1812...

  • Page 7: Kern Communications Protocol (Kern Interface Protocol)

    1.4 KERN Communications Protocol (KERN Interface Protocol) KCP (KERN communication protocol) contains the commands that are used to control the KERN balances via the interface. • Finish commands with CR/LF character. • Consult the KCP manual for more information, available on our KERN website (www.kern-sohn.com).

  • Page 8: Usb Interface (Kib-A03) (Optional)

    Several programs are available for data transmission on the balance to a PC. The description below refers to "Kern Balance Connection". • A 10-day free trial of the KERN Balance Connection test version is available for download under www.kern-sohn.com/Downloads/Software. How to install a USB driver (In menu "Downloads/Operating Instructions, Single Projects, Conformity...
  • Page 9 Go to device manager of PC and search for "USB Serial CH340 (COM6). (This COM Port will later be entered in Balance Connection.) KIB-TM-ZB-e-1812...
  • Page 10 Open expert mode: Click on OK KIB-TM-ZB-e-1812...
  • Page 11 Right-click on COM 6Open Console and data will be transferred • Now you can set all the other output methods in Balance Connection. • If data transmission is not happening, check the settings described above and re- enter as required. KIB-TM-ZB-e-1812...

  • Page 12: Ethernet (Optional)

     Menu item "P9 Prt"  "oPt"  "ModE"  " Count" (Output mode cont. data output)  Menu item "P9Prt"  "oPt"  "iP1-4" Set IP address KIB-TM as follows: Enter IP address not yet allocated in network: Example: 10.0.1.104...
  • Page 13 As the IP address is saved to the KIB-TM we recommend using a static IP address of the computer. Now enter the IP address for the PC on the display unit:  Menu item "P9Prt"  "oPt""riP_1-4" (IP address PC) ...

  • Page 14: Wlan (Optional)

     The entry prompt will appear  Enter "ipconfig" and press Enter to confirm  The PC‘s IP address will appear on the screen) As the IP address is saved to the KIB-TM we recommend using a static IP address of the computer. KIB-TM-ZB-e-1812...
  • Page 15 • If data transmission is not happening, check the settings described above and re- enter as required. • Restart of KIB-TM is required after making changes to WLAN settings. • After the restart it may take up to 20 sec until the WLAN module is displayed.

  • Page 16: Bluetooth (Option)

    5 Bluetooth (Option) Wireless data transmission over a short distance between devices is possible with the help of Bluetooth. Establish connection between KIB-TM and computer/mobile phone. To that end enter the following: • Password: 0000 (alternatively 1234) • Name: HC-06 The menu items shown below must be set in KIB-TM ...

  • Page 17: Export Of Alibi Memory Data To Computer

     Open an Excel spreadsheet to analyze saved data or, after connecting an optional printer, print them. When the below messages are displayed, confirm them by pressing “Yes”. Sample data exported to Microsoft Excel: Record Date Time of Gross Tare value Net weight Weighing number of weighing weighing weight unit KIB-TM-ZB-e-1812...

  • Page 18: O Interface (Optional)

    • The number on the left of the display designates the output number (connected to OUT1-OUT8 or IN1-IN2). • The number on the right of the display designates the current output status: - “0“ means deactivated - “1“ means activated (test voltage: 12V) KIB-TM-ZB-e-1812...

  • Page 19: Rs 485 Interface (Optional)

    OUT 1 green OUT 2 HIGH OUT 3 black * Voltage is supplied to the indicator light via a single cable. 8 RS 485 interface (optional) The RS-485 interface is used exclusively with the KERN KIB-A07 large-format display. KIB-TM-ZB-e-1812...

  • Page 20: Menu

     The arrow keys can be used to change the available Change settings settings. Acknowledge setting / exit the menu  Either save by pressing or cancel by pressing Return to weighing mode  Press repeatedly to exit menu. KIB-TM-ZB-e-1812...

  • Page 21: Kib-Tm-Zb-E

    One output for stable weighing value Continuous data output of stable weighing values • Output after pressing • Precondition for alibi memory Manual totalizing Press and the weighing value will be added to the summation memory and issued. KIB-TM-ZB-e-1812...
  • Page 22 Linearisation Gravitational constant at place of installation Gravitational constant at place of manufacture Keyboard lock enabled P4 OTH LOCK off* Keyboard lock disabled Animal weighing enabled off* Animal weighing disabled watch as screensaver enabled off* watch as screensaver diabled KIB-TM-ZB-e-1812...
  • Page 23 Factory setting dAtE Setting date: Format: TTMMJJ P8 ind tIME Setting time: Format: HHMMSS ALibi Alibi memory dAtA Number of saved records rdAtA Read the record value ErASE Delete all data ExPT Export data (USB stick) PrEt Enter pre-tare value KIB-TM-ZB-e-1812...
  • Page 24 Test output intF USB, Select connections UdiSK, Bt, WiFi, EnEt ModE no, CoUnt (USB, Bt, Wi-Fi, EnEt) (output) no, Expt (UdiSK) iP_1 IP addresses KIB-TM iP_2 iP_3 iP_4 MASK_1 Subnet mask MASK_2 MASK_3 MASK_4 GAtE_1 KIB-TM Gateway GAtE_2 GAtE_3...
