Ampac ACP-02 Installation Manual

ACP-02 Addressable Manual Call Point
Installation guide

Description

The Ampac ACP-02 double action re-settable Manual
Call Point (MCP) eliminates the possibility of accidental
operation and the cost and labour of replacement of
frangible elements.

Features

• Testing of operation without removal of front cover
• Resettable operation
• LED indication
• Two (2) 20mm conduit entries, one (1) top one (1)
bottom)

Installation

Observe anti-static precautions at all times

Surface Mounting

1. Locate the mounting box over a flat surface and
secure with at least two (2) screws tightened
evenly to prevent distortion
2. Remove the securing screw from the front of MCP
while at the same time pulling the top of the facia
away from the backing plate
3. Terminate cables (See Figure 1)
4. Set the address of the MCP (See Figure 2)

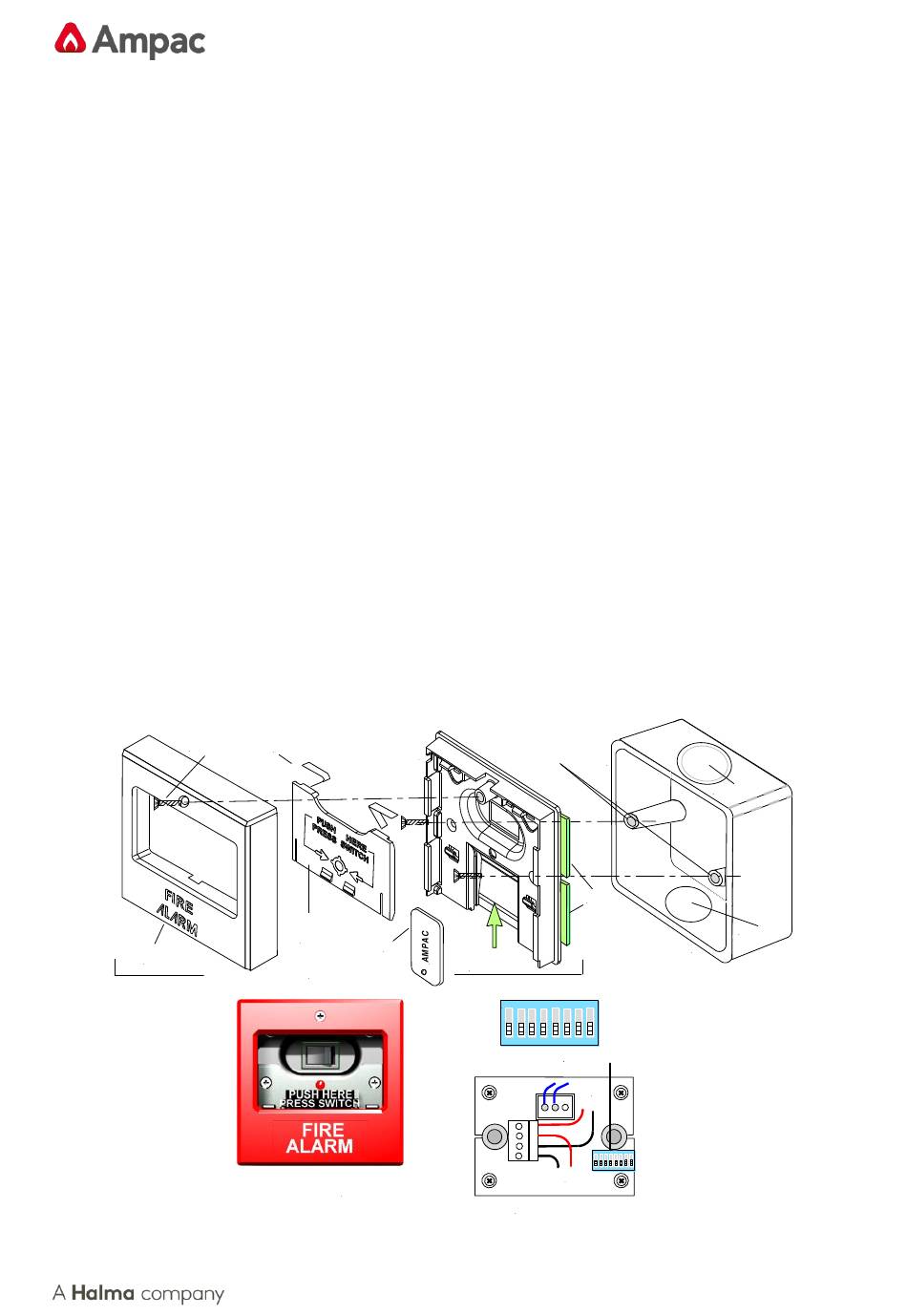

FACIA RETAINING
SCREW
FACIA
OPERATION ELEMENT
BACKING
PRESSURE SPRINGS
PLATE
CLEAR ABS
OPERATION
ELEMENT
KEY
FRONT ASSEMBLY
FACIA WITH THE
OPERATION ELEMENT
IN THE RELEASED POSITION

Figure 1: General Wiring Diagram

5. Remove the two (2) thread protection plugs from
the mounting box and fix the backing plate to it
using the two (2) fixing screws supplied
6. Replace the facia by inserting the two (2) bottom
locating pegs of the facia up into the bottom of the
locating holes of the backing plate, close at the top,
tighten the retaining screw then insert the key (as
shown) to reset the operation element

Testing of MCP Operation

1. Isolate the FACP from calling the fire brigade
2. Press on the clear ABS operation element in the
location indicated, PUSH HERE to drop the
element down
3. Operate the switch, the MCP LED should illuminate
and an alarm at the FACP should be indicated
4. To reset the operation element firmly push the key
up into the slot in the bottom of the facia
Set the
Note 1:
ConfigManager to S90 MCP
To ensure line monitoring integrity always use

Note 2:

one (1) set of terminals for "IN" and one (1) set for
"OUT".
REMOVE PLASTIC THREAD
INSERTS TO SCREW
FRONT ASSEMBLY
TO THE MOUNTING BOX
PCB
MOUNTING BOX
INSERT KEY
TO RESET
ON
1 2 3 4 5 6 7 8
ADDRESS SWITCH
LOOP
+ -
IN
+
+
-
O N
-
1 2 3 4 5 6 7 8
LOOP
+ -
OUT
PCB LAYOUT & WIRING
MAN2692-2
Item Number: 4255-0200
device type in FireFinder
KNOCKOUT
KNOCKOUT
