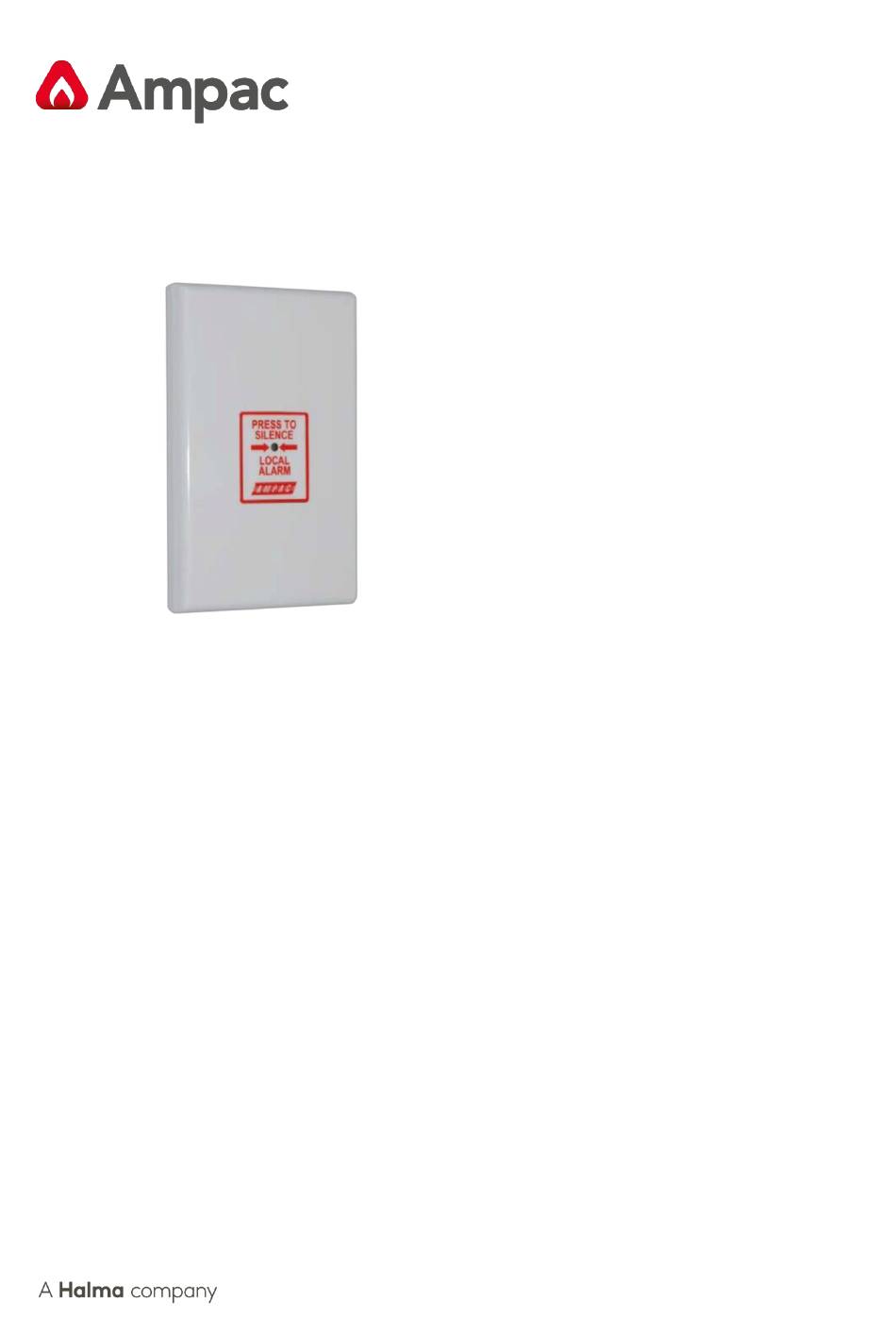

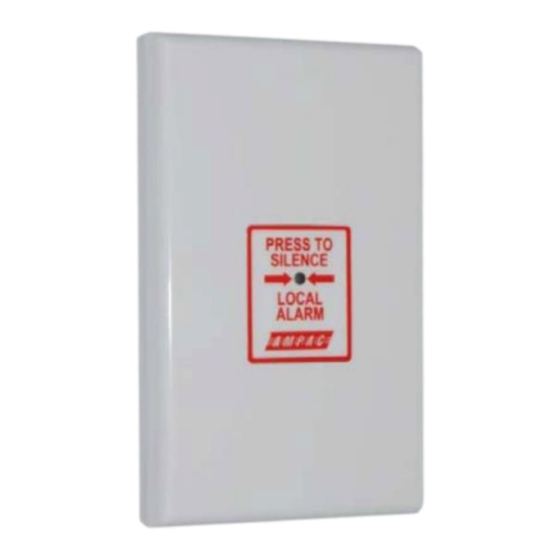

- Page 1 Fire detection and evacuation solutions that save lives. Apartment Module (AM) Installation guide MAN1570-3...
- Page 2 MAN1570-3 Description The Apartment Module (AM) is a loop powered addressable device that helps reduce the costly consequences of an unwanted alarm An occupant is able to silence a local audible warning, activated by a local smoke detector, and allowing a preset time to investigate the cause of the alarm.
- Page 3 MAN1570-3 Installation Observe anti-static precautions at all times Two DIP switches are provided, SW2 for addressing (8 way) and SW1 for module options (4 way) as below. DIP SW1 Name Operational Parameters Not used 2 off: EOL = 10uF (default setting) 2 EOL Zone EOL selection 2 on: EOL = 6K2...
- Page 4 MAN1570-3 Addressing DIL Switch Settings DIL switch setting DIL switch setting DIL switch setting DIL switch setting DIL switch setting Addr 1234567 Addr 1234567 Addr 1234567 Addr 1234567 Addr 1234567 1000000 0101100 1100110 0011001 1010011 0100000 1101100 0010110 1011001 0110011 1100000 0011100 1010110...
