Ampac ACP05 Installation Manual

ACP05 Addressable Manual call point
Installation guide

Description

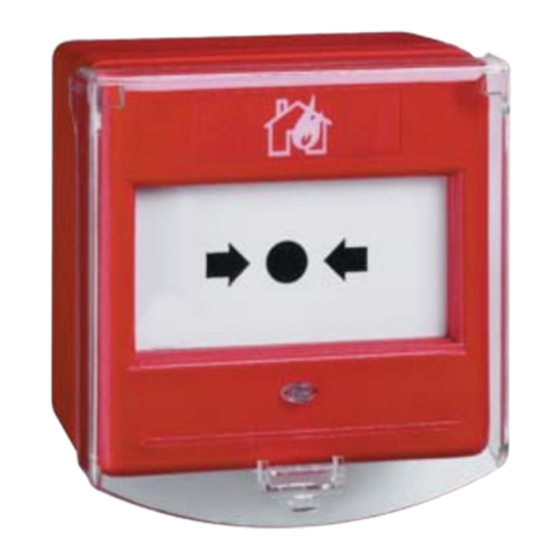

The Ampac ACP-05 double action re-settable Manual
Call Point (MCP) eliminates the possibility of accidental
operation and the cost and labour of replacement of
frangible elements.

Installation

Observe anti-static precautions at all times
1. Remove the PCB mounting plate by unscrewing
the 2 screws holding it to the back box
2. Locate the mounting box over a flat surface and
secure with four (4) screws tightened evenly to
prevent distortion.
3. Set the address of the MCP by way of the 'Address
Switch' See Figure 3.
4. Terminate cabling and MCP switch wiring as per
Figure 1
5. Screw the mounting plate to the mounting box
6. Screw the MCP facia to the mounting box

Testing of MCP Operation

1. Isolate the FACP and set the device type in
FireFinder ConfigManager to S90 MCP
TOP & BOTTOM HOLE POSITIONS FOR
CABLE ENTRY GLANDS
PUSH HERE TO OPERATE
SPRING
CLIP ON FRONT SURROUND
111
111
1
TEST
KEY
2
TEST & RESET
FRONT COVER SURROUND REMOVAL
Figure 2: General Mounting diagram
2. Lift cover and press on the element in the location
indicated above. The element drops down to
confirm operation and the FACP should indicate an
alarm
3. Reset the element by firmly pushing the key up
into the slot in the bottom of the surround as
shown in Figure 2.
FACIA N/C
SWITCH CONTACTS
COMMON
N O
!
N C
Figure 1: General Wiring diagram
USE CAUTION WHEN FITTING GLANDS TO
ENSURE IP67 INTEGRITY IS MAINTAINED
6 5
2 0
BACK BOX
MOUNTING HOLES
2
PUSH
1
FIRMLY
FIXING DETAIL
RELEASE
TEST KEY
NODES
Item Number: 4255-0801
PCB BACK MOUNTING PLATE
LOOP IN
+ -
+
+
-
-
+ -
LOOP OUT
ADDRESS SWITCH
O N
1 2 3 4
BACK BOX
FACIA
&
7 5
9 7
MAN1541-2
O N
1 2 3 4 5 6 7 8
5 6 7 8
