In-Sight
2800 Series
Quick Reference Guide
2023 June 22
Revision: 23.1.1.16

Advertisement

loading
Need help?

Need help?

Do you have a question about the In-Sight 2801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

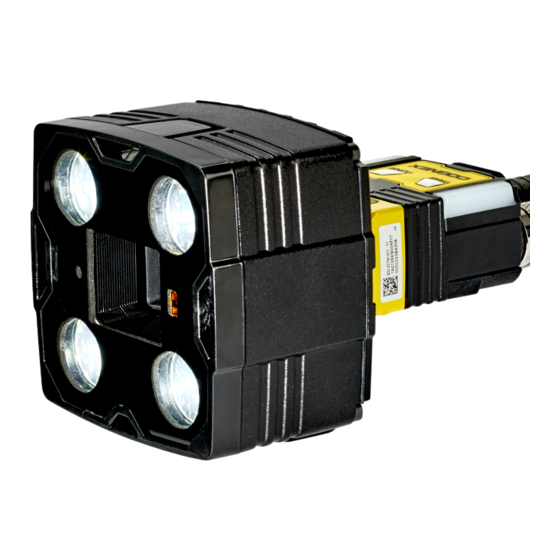

Summary of Contents for Cognex In-Sight 2801

  • Page 1 ® In-Sight 2800 Series Quick Reference Guide 2023 June 22 Revision: 23.1.1.16...
  • Page 2 The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
  • Page 3 Do not expose the image sensor to laser light. Image sensors can be damaged by direct, or reflected, laser light. If your application requires laser light that might strike the image sensor, use a lens filter at the corresponding laser wavelength. For suggestions, contact your local integrator or application engineer.
  • Page 4 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
  • Page 5 Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Lenses Accessory Product Number Illustration 12 mm Manual Focus Lens Module to be used with Multi Torch light 280-TORCH-...
  • Page 6 Illumination Product Accessory Illustration Number Red LED Light for 6.2 mm Lens (Risk Group Exempt acc. IEC 62471) DM150- LED-RED White LED Light for 6.2 mm Lens (Risk Group Exempt acc. IEC 62471) DM150- LED- Blue LED Light for 6.2 mm Lens (Risk Group Exempt acc. IEC 62471) DM150- LED-BLU High-Powered Red LED Light for 16 mm Lens (Risk Group Exempt acc.
  • Page 7 Lens Covers Accessory Product Number Illustration Standard front cover. Use with a 6.2 mm lens only. DM280-CVR-62 DM280-LENS-62CVR-F Standard front cover, fully-polarized. Use with a 6.2 mm lens only. Extended front cover. Use with a 16 mm lens only. DM260-LENS-16CVR Extended front cover, half-polarized.
  • Page 8 Mounting Brackets Accessory Product Number Illustration Universal mounting bracket DM100-UBRK-000 Pivot mounting bracket DM100-PIVOTM-01 Tilted angle pivot bracket DMBK-DMPIVOT- Flat surface mounting plate adapter for Multi Torch 280-BKT-ADAPT configuration...
  • Page 9 Cables Note: Cables are sold separately. Accessory Product Number Illustration Ethernet Cable, X-coded M12-8 to CCB-84901-2001-xx (straight, xx specifies length: RJ-45 2m, 5m, 10m, 15m, 30m) Ethernet Cable, X-coded M12-8 to CCB-84901-2002-xx (right-angled, xx specifies RJ-45 length: 2m, 5m, 10m) Ethernet Cable, Robotic X-Coded CCB-84901-2RBT-xx (straight, xx specifies length: M12-8 to RJ-45...
  • Page 10 Accessory Product Number Illustration I/O Extension Cable CKR-200-CBL-EXT...
  • Page 11 Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the vision system.
  • Page 12 Number Description Power I/O Breakout cable connector Ethernet connector Illumination LEDs Trigger button Note: The Trigger Button is not supported. Tune button Note: The Tune Button is not supported. Indicator LEDs Power LED indicator Train status/Trigger status LED indicator Good/bad inspection LED indicator Communication LED indicator Error LED indicator...
  • Page 13 Dimensions The following sections list dimensions of the vision system. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice. In-Sight 2800 Mini with 6.2 mm lens The following image shows the dimensions of In-Sight 2800, equipped with 6.2 mm lens.
  • Page 14 In-Sight 2800 Mini with 16 mm Lens The following image shows the dimensions of In-Sight 2800 equipped with 16 mm lens.
  • Page 15 In-Sight 2800 Mini with 6.2 mm Lens - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with L- shaped extension and 6.2 mm lens.
  • Page 16 In-Sight 2800 Mini with 16 mm Lens - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with L- shaped extension and 16 mm lens.
  • Page 17 In-Sight 2800 with Multi Torch The following image shows the dimensions of In-Sight 2800 equipped with a Multi Torch.
  • Page 18 In-Sight 2800 with Multi Torch - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with a Multi Torch and L-shaped extension.
  • Page 20 Field of View and Working Distance This section provides the Field of View (FoV)values for the IS2800 with Multi Torch and IS2800 Mini configurations. (On the diagrams, the values at the top are in mm and the values at the bottom of the top values in the brackets are in inch). In-Sight 2800 with Multi Torch and 12 mm Lens Working Distance Horizontal FOV...
  • Page 21 Working Distance Horizontal FOV Vertical FOV Midpoint 300 mm (11.8 in) 100.8 mm (5.95 in) 75.6 mm (2.98 in) Maximum 500 mm (19.69 in) 168 mm (6.61 in) 126 mm (4.96 in) In-Sight 2800 with Multi Torch and 16 mm lens...
  • Page 22 Working Distance Horizontal FOV Vertical FOV Minimum 50 mm (1.97 in) 12.6 mm (0.5 in) 9.45 mm (0.37 in) Midpoint 300 mm (11.8 in) 75.6 mm (2.98 in) 56.7 mm (2.23 in) Maximum 500 mm (19.69 in) 126 mm (4.96 in) 94.5 mm (3.72 in) The following tables list the Field of View (FoV) widths of the 16 mm lens at various distances:...
  • Page 23 Working Distance Horizontal FOV Vertical FOV Minimum 50 mm (1.97 in) 32.5 mm (1.28 in) 24.4 mm (0.96 in) Midpoint 300 mm (11.8 in) 195.1 mm (7.68 in) 146.3 mm (5.76 in) Maximum 500 mm (19.69 in) 325 mm (12.8 in) 243.8 mm (9.60 in) In-Sight 2800 Mini with 16 mm Lens...
  • Page 24 Working Distance Horizontal FOV Vertical FOV Minimum 100 mm (3.94 in) 25.2 mm (1 in) 18.9 mm (0.74 in) Midpoint 300 mm (11.8 in) 75.6 mm (2.98 in) 56.7 mm (2.23 in) Maximum 500 mm (19.69 in) 126 mm (4.96 in) 94.5 mm (3.72 in)
  • Page 25 Mounting the Vision System The vision system provides mounting holes for attachment to a mounting surface. CAUTION: The vision system has to be grounded, either by mounting the vision system to a fixture that is electrically grounded or by attaching a wire from the vision system’s mounting fixture to frame ground or Earth ground.
  • Page 26 Note: Mounting the vision system at a slight angle (15°) reduces reflections and improves performance.
  • Page 27 Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter has to be used to validate the grounding.
  • Page 28 Connecting the Power and I/O Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Perform wiring or adjustments to I/O devices when the vision system is not receiving power. You can clip unused wires short or use a tie made of non-conductive material to tie them back.
  • Page 29 Specifications The following sections list general specifications for the vision system. In-Sight 2800 Series Vision System In-Sight 2800 Specification 6.2 mm: 141 g Weight 16 mm: 169 g Right angle configuration adds 50 g 24 V DC +/- 10%, USB 5V 500mA Power 24 V DC ±...
  • Page 30 FedEx Vibration Testing for packaged products 150 lbs or less (Shipping and Storage) In-Sight 2800 Series Vision System Image Sensor In-Sight 2800 In-Sight 2801 In-Sight 2802 Specification Image Sensor 1/2.8-inch CMOS monochrome and color Pixel size: 2.8 μm (H) x 2.8 μm (V)
  • Page 31 In-Sight 2800 In-Sight 2801 In-Sight 2802 Specification Minimum exposure: 29 μs Electronic Maximum exposure: 10 ms (with internal illumination) Maximum exposure: 200 ms (with external illumination) Shutter Speed Up to 45 Hz Image Acquisition at Full Resolution Multi Torch: Multi Torch:...
  • Page 32 LED and Laser Wavelengths The following table shows LED types and the related peak wavelengths. Model Wavelength In-Sight 2800 Mini with 6.2mm Lens Illumination/with White Chromaticity coordinates acc. to CIE 16mm Lens and High Powered Illumination 1931 • Cx 0.34 (typ.) • Cy 0.33 (typ.) Blue 465 nm 617 nm...
  • Page 33 Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. In-Sight 2800 vision systems have Regulatory Model numbers 50208, 50210, 50215, 50216 and meet or exceed the requirements of all applicable standards organizations for safe operation.
  • Page 34 Safety and Regulatory FCC Part 15, Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 35 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根据 中国 大陆 《 电子信息 产品 污染 控制管 理办 法 》 ( 也称 为中 国大陆 RoHS), 以 下部 份列 出了 本产 品中可 能包 含的 有 毒有 害物 质或 元素的 名称 和含 量 。 Hazardous Substances 有...
  • Page 36 For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 38 Copyright © 2022 Cognex Corporation. All Rights Reserved.
