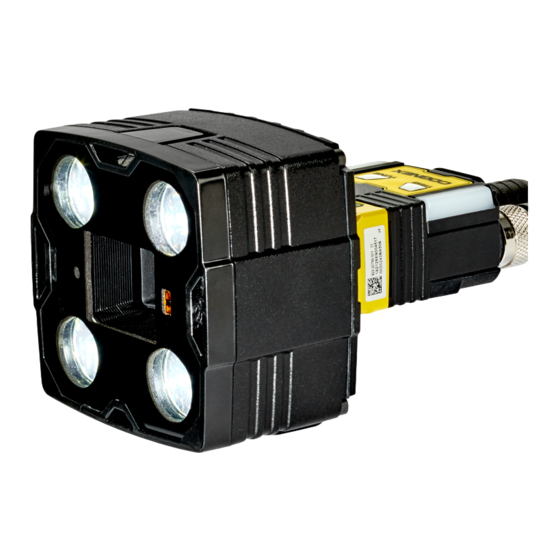

Summary of Contents for Cognex In-Sight 2800 Series
Page 1

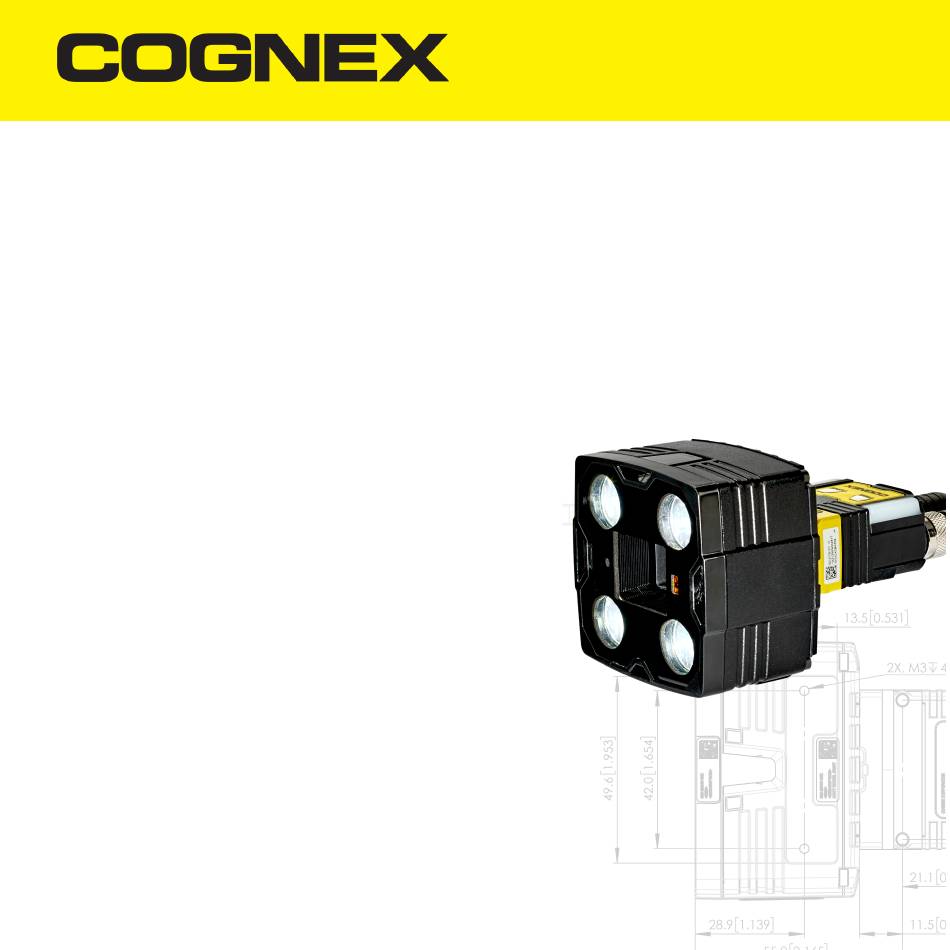

® In-Sight 2800 Series Quick Reference Guide 2023 March 31 Revision: 23.1.0.120...
Page 2
The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
Page 3
Do not expose the image sensor to laser light. Image sensors can be damaged by direct, or reflected, laser light. If your application requires laser light that might strike the image sensor, use a lens filter at the corresponding laser wavelength. For suggestions, contact your local integrator or application engineer.
Page 4
Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
Page 5
Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Lenses Accessory Product Number Illustration 12mm Manual Focus Lens Module to be used with Multi Torch light 280-TORCH- MAN12...
Page 6
Accessory Product Number Illustration 16 mm High Speed Liquid Lens - Visible and Near-IR Light CLN-C16F8FS- HSLL 24 mm High Speed Liquid Lens - Visible and Near-IR Light CLN-C24F6FS- HSLL 16 mm Manual Focus lens for Multi Torch - Visible and Near IR Light CLN-C16F8FS 24 mm Manual Focus lens for Multi Torch - Visible and Near-IR Light CLN-C24F6FS...
Lens Covers Accessory Product Number Illustration Standard front cover. Use with a 6.2 mm lens only. DM280-CVR-62 Standard front cover, fully-polarized. Use with a 6.2 mm lens only. DM260-LENS-62CVR-F Extended front cover. Use with a 16 mm lens only. DM260-LENS-16CVR Extended front cover, half-polarized.
Page 8
Accessory Product Number Illustration 75mm Plastic Lens Cover COV-380-CMNT-75 30mm Lens Cover Extender COV-7000-CMNT-LGX Multi Torch front cover - Diffused 380-TORCH-COVDIF Multi Torch front cover - Cross-Polarized 380-TORCH-COVPOL Multi Torch front cover - Clear 380-TORCH-COVCLR Dome Attachment for 380 platform Multi Torch and DataMan HPIT 380-TORCH-DOME CAUTION: For 280-TORCH-COVPOL, 280-TORCH-COVCLR, and 280- TORCH-COVDIF equipped with a Time-of-Flight sensor, the device has been...
Mounting Brackets Accessory Product Number Illustration Pivot mounting bracket DM100-PIVOTM- Tilted angle pivot bracket DMBK- DMPIVOT-00 Flat surface mounting plate adapter for Multi-Torch configuration 280-BKT-ADAPT Mounting bracket with M3, M4 and 1/4 - 20 mounting holes BKT-INS-01...
Page 11
Accessory Product Number Illustration Converter mounting bracket with M3 socket head screws/wrench ISB-7000-7K Converter mounting bracket with Phillips flat head M3 screws and ISB-7000-5K M4 screws...
Page 12
Cables Note: Cables are sold separately. Accessory Product Number Illustration Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m) Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m) Ethernet Cable, Robotic X-Coded M12-8 to CCB-84901-2RBT-xx (straight, xx specifies RJ-45...
Page 13
Accessory Product Number Illustration I/O Extension Cable CKR-200-CBL-EXT External Light Cable, Yellow IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 Note: This cable supports intensity IVSL-5PM12-J2000 control. External Light Cable, Black IVSL-M12-NSB-300 IVSL-M12-NSB-1000 IVSL-M12-NSB-2000 Note: This cable supports intensity control and is used with standard SVL lights.
Page 14
Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the vision system.
Page 15
Number Description Ethernet connector Illumination LEDs Trigger button Note: The Trigger Button is not supported. Tune button Note: The Tune Button is not supported. Indicator LEDs Power LED indicator Train status/Trigger status LED indicator Good/bad inspection LED indicator Communication LED indicator Error LED indicator...
Page 16
Dimensions The following sections list dimensions of the vision system. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice. In-Sight 2800 Mini with 6.2 mm lens The following image shows the dimensions of In-Sight 2800, equipped with 6.2 mm lens.
Page 17
In-Sight 2800 Mini with 16 mm Lens The following image shows the dimensions of In-Sight 2800 equipped with 16 mm lens.
Page 18
In-Sight 2800 Mini with 6.2 mm Lens - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with L- shaped extension and 6.2 mm lens.
Page 19
In-Sight 2800 Mini with 16 mm Lens - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with L- shaped extension and 16 mm lens.
Page 20
In-Sight 2800 with Multi Torch The following image shows the dimensions of In-Sight 2800 equipped with Multi Torch.
Page 21
In-Sight 2800 with Multi Torch - Right Angle Configuration The following image shows the dimensions of In-Sight 2800 equipped with L- Shaped extension and Multi Torch.
Field of View and Working Distance This section provides the Field of View (FoV)values for the IS2800 with Multi Torch and IS2800 Mini configurations. (On the diagrams, the values at the top are in mm and the values at the bottom of the top values in the brackets are in inch). This section provides the Field of View (FoV) values for 1.6 MP, 3 MP, and 5 MP lenses.
Page 23
Working Distance Horizontal FOV Vertical FOV Minimum 50 mm (1.97 in) 16.8 mm (0.66 in) 12.6 mm (0.5 in) Midpoint 300 mm (11.8 in) 100.8 mm (5.95 in) 75.6 mm (2.98 in) Maximum 500 mm (19.69 in) 168 mm (6.61 in) 126 mm (4.96 in) In-Sight 2800 with Multi Torch and 16 mm lens...
Page 24
Working Distance Horizontal FOV Vertical FOV Minimum 50 mm (1.97 in) 12.6 mm (0.5 in) 9.45 mm (0.37 in) Midpoint 300 mm (11.8 in) 75.6 mm (2.98 in) 56.7 mm (2.23 in) Maximum 500 mm (19.69 in) 126 mm (4.96 in) 94.5 mm (3.72 in) The following tables list the Field of View (FoV) widths of the 16 mm lens at various distances:...
Page 25
Working Distance Horizontal FOV Vertical FOV Minimum 50 mm (1.97 in) 32.5 mm (1.28 in) 24.4 mm (0.96 in) Midpoint 300 mm (11.8 in) 195.1 mm (7.68 in) 146.3 mm (5.76 in) Maximum 500 mm (19.69 in) 325 mm (12.8 in) 243.8 mm (9.60 in) In-Sight 2800 Mini with 16 mm Lens...
Page 26
Working Distance Horizontal FOV Vertical FOV Minimum 100 mm (3.94 in) 25.2 mm (1 in) 18.9 mm (0.74 in) Midpoint 300 mm (11.8 in) 75.6 mm (2.98 in) 56.7 mm (2.23 in) Maximum 500 mm (19.69 in) 126 mm (4.96 in) 94.5 mm (3.72 in)
Page 27
Mounting the Vision System The vision system provides mounting holes for attachment to a mounting surface. CAUTION: The vision system has to be grounded, either by mounting the vision system to a fixture that is electrically grounded or by attaching a wire from the vision system’s mounting fixture to frame ground or Earth ground.
Page 28
Note: Mounting the In-Sight 2800 at a slight angle (15°) reduces reflections and improves performance of the vision system.
Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter has to be used to validate the grounding.
Page 30
Connecting the Power and I/O Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Perform wiring or adjustments to I/O devices when the vision system is not receiving power. You can clip unused wires short or use a tie made of non-conductive material to tie them back.
Specifications The following sections list general specifications for the vision system. In-Sight 2800 Series Vision System Specification In-Sight 2800 6.2 mm: 141 g Weight 16 mm: 169 g Right angle configuration adds 50 g 24 V DC +/- 10%, USB 5V 500mA Power 24 V DC ±...
Page 32
IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Vibration Hz at 100m/s / 15 mm) FedEx Vibration Testing for packaged products 150 lbs or less (Shipping and Storage) In-Sight 2800 Series Vision System Image Sensor In-Sight 2800 IS3803 IS3805 Specification IS3801 1/3-inch CMOS, global shutter 1/1.1-inch CMOS...
Page 33
In-Sight 2800 IS3803 IS3805 Specification IS3801 Minimum exposure: 29 μs Electronic Shutter Speed Maximum exposure: 10 ms (with internal illumination) Maximum exposure: 200 ms (with external illumination) Image Acquisition at Full Resolution Multi Torch: Lens Type Manual focus: 16 mm, 12 mm Autofocus: 16 mm (High Speed Liquid Lens), 12 mm (High Speed Liquid Lens) IS2800 Mini:...
Page 34
LED and Laser Wavelengths The following table shows LED types and the related peak wavelengths. Model Wavelength In-Sight 2800 Mini with 6.2mm Lens Illumination/with White Chromaticity coordinates acc. to CIE 16mm Lens and High Powered Illumination 1931 • Cx 0.34 (typ.) • Cy 0.33 (typ.) Blue 465 nm 617 nm...
Page 35
Model Wavelength 453 nm (blue) In-Sight 3800 with Multi-Torch Multicolor 525 nm (green) Illumination 625 nm (red) Color temperature: 6740 Kelvin (white) Chromaticity coordinates acc. to CIE 1931 Cx 0.31 (typ.) Cy 0.32 (typ.) IR Wavelength: 850 nm Note: For color vision systems, select the White option.
Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. In-Sight 2800 vision systems have Regulatory Model numbers 50208, 50210, 50215, 50216 and meet or exceed the requirements of all applicable standards organizations for safe operation.
Page 37
Safety and Regulatory FCC Part 15, Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
