REVELL Concerta IC15 Owner's Manual

In-ceiling loudspeaker
Hide thumbs Also See for Concerta IC15:
Table of Contents

Advertisement

Quick Links

Download this manual
Revel
®
IC15 In-Ceiling Loudspeaker
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for REVELL Concerta IC15

Summary of Contents for REVELL Concerta IC15

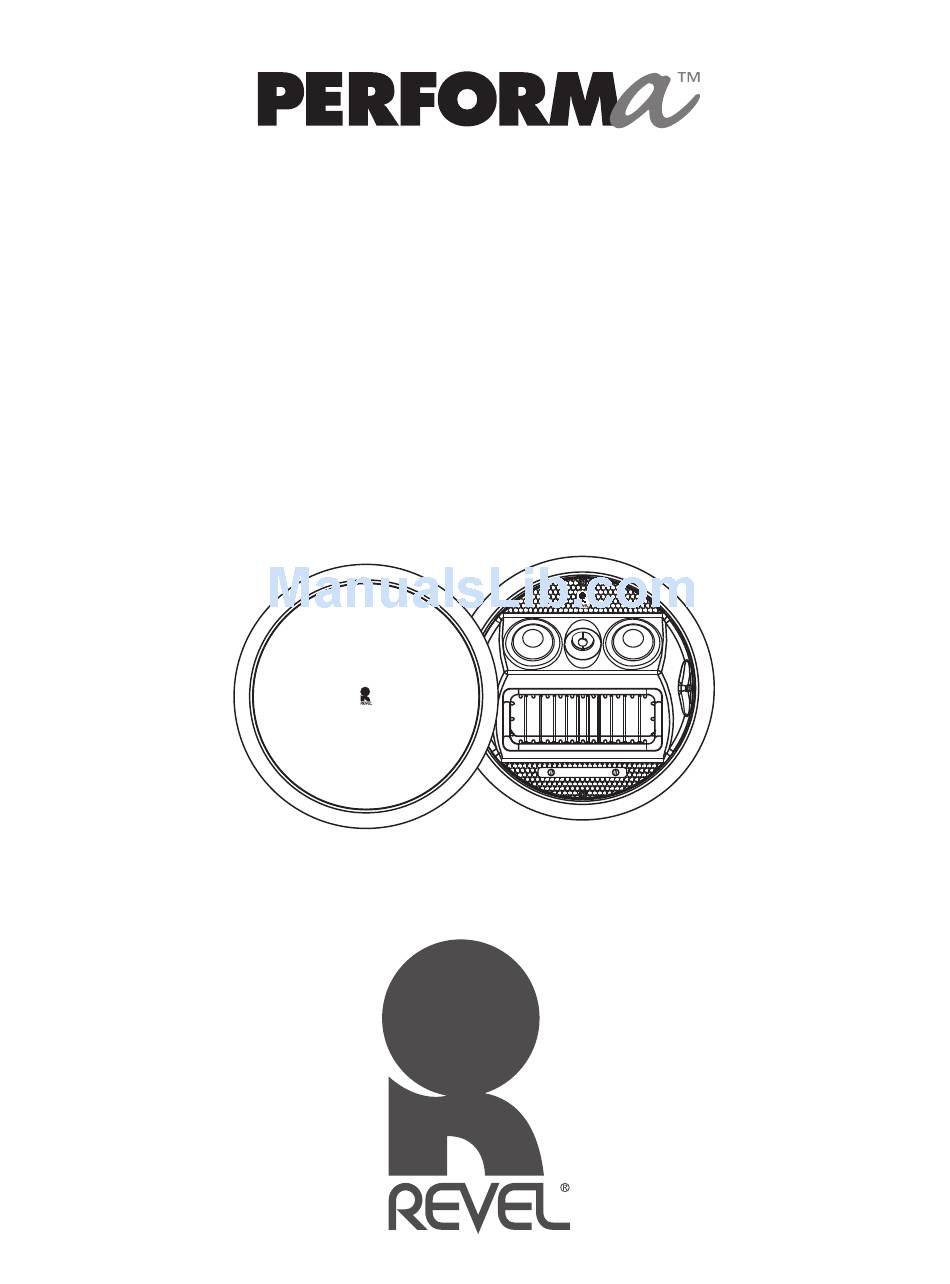

  • Page 1 Revel ® IC15 In-Ceiling Loudspeaker Owner’s Manual...

  • Page 2: Unpacking The Speaker

    PLANNING YOUR SYSTEM Note: Revel IC15 loudspeakers are intended for use with one or more subwoofers. A powered subwoofer will add impact and realism to both music and film soundtracks. Contact your Revel dealer for recommendations on subwoofer models for your application.

  • Page 3: Speaker Connections

    A center channel speaker should go directly above the television. For left and right surround channels, place one speaker on the left and another on the right, to the side of or slightly behind the listening area. In 6- or 7-channel configurations, place the rear channel(s) behind the listening position, as shown in Figure 3.

  • Page 4: Existing Construction

    Cut the drywall. 5. Connect the speaker wires to the speaker. It is recommended that the nylon cable-strain relief tab, located next to the speaker terminals, be used to help prevent the speaker wires from being accidentally dislodged (see Figure 5).

  • Page 5: New Construction

    Before painting, install the paint shield (inner section of template in the assembly kit) securely into the recess in the baffle. This will protect the speaker components and baffle from paint residue. Use a high-quality spray paint, and apply a thin coat of color. Be certain the grille perforations remain free of paint.

  • Page 6: Specifications

    1" (25mm) Pure titanium External Diameter Diameter: 12-3/4" (323mm) Mounting Cutout Diameter Diameter: 11-3/8" (289mm) Mounting Depth 5-5/8" (142mm) Weight (Net) 8 lb (3.6kg) Features, specifications and appearance are subject to change without notice. NOTES Revel Performa IC15 Owner’s Manual...

  • Page 7: Limited Warranty

    (5) years (parts and labor) from any failure as a result of original manufacturing defects so long as: 1. The Revel products were purchased within the 50 United States, its territories, or Canada. 2. The dealer from whom the Revel products were purchased was authorized to sell such products at the time of the original purchase.
  • Page 8 EN 61000-6-1:2001 Laurent Rault Harman Consumer Group, Inc. Château du Loir, France 12/07 Revel, the Revel logo and Performa are trademarks of Harman International Industries, Incorporated, in the United States and/or other countries. Dolby and Pro Logic are registered trademarks of Dolby Laboratories.

This manual is also suitable for:

Performa ic15
