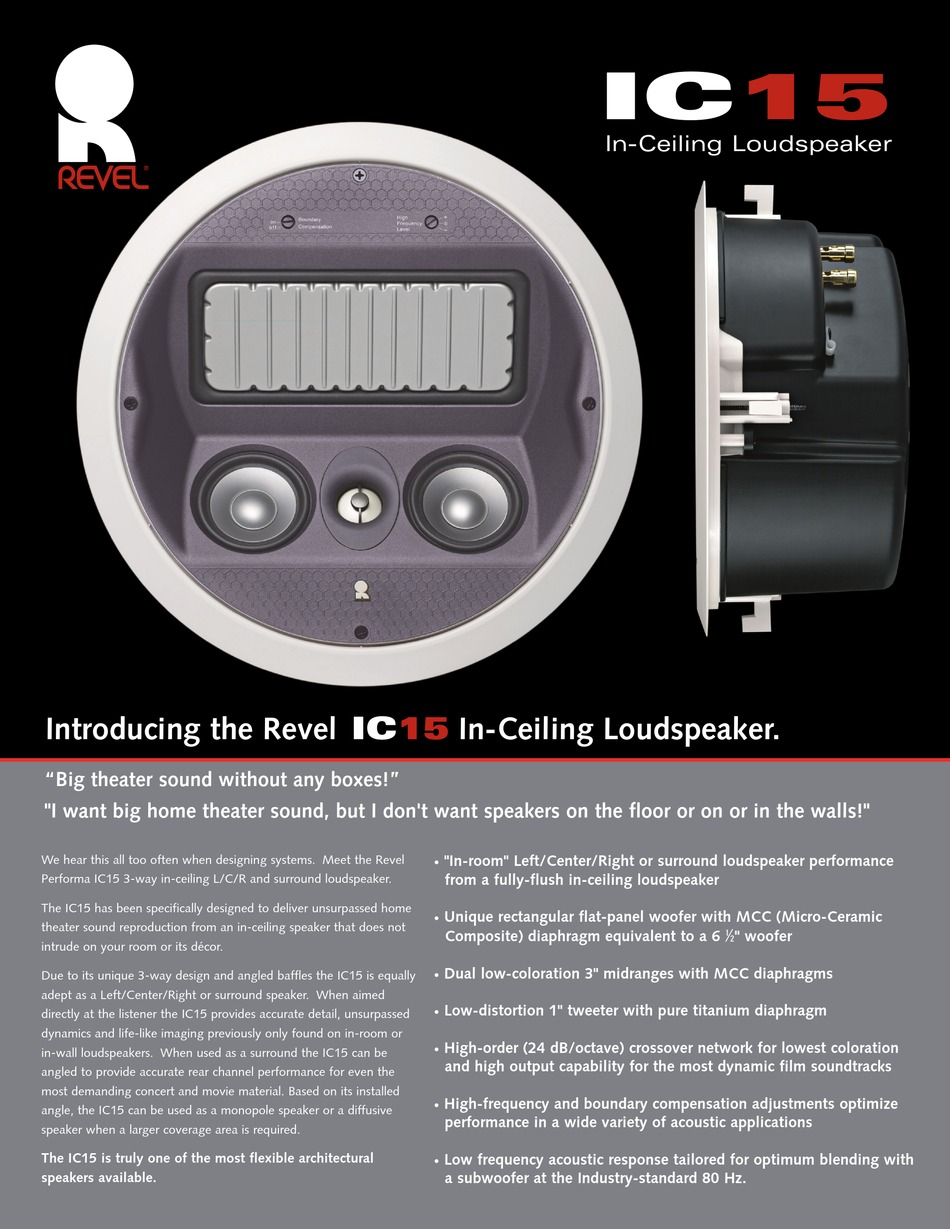

REVELL Concerta IC15 Specifications

Introducing the Revel
"Big theater sound without any boxes!"
"I want big home theater sound, but I don't want speakers on the floor or on or in the walls!"
We hear this all too often when designing systems. Meet the Revel
Performa IC15 3-way in-ceiling L/C/R and surround loudspeaker.
The IC15 has been specifically designed to deliver unsurpassed home
theater sound reproduction from an in-ceiling speaker that does not
intrude on your room or its décor.
Due to its unique 3-way design and angled baffles the IC15 is equally
adept as a Left/Center/Right or surround speaker. When aimed
directly at the listener the IC15 provides accurate detail, unsurpassed
dynamics and life-like imaging previously only found on in-room or
in-wall loudspeakers. When used as a surround the IC15 can be
angled to provide accurate rear channel performance for even the
most demanding concert and movie material. Based on its installed
angle, the IC15 can be used as a monopole speaker or a diffusive
speaker when a larger coverage area is required.
The IC15 is truly one of the most flexible architectural
speakers available.
In-Ceiling Loudspeaker.
IC15
"In-room" Left/Center/Right or surround loudspeaker performance
•
from a fully-flush in-ceiling loudspeaker
Unique rectangular flat-panel woofer with MCC (Micro-Ceramic
•
Composite) diaphragm equivalent to a 6 /" woofer
Dual low-coloration 3" midranges with MCC diaphragms
•
Low-distortion 1" tweeter with pure titanium diaphragm
•
High-order (24 dB/octave) crossover network for lowest coloration
•
and high output capability for the most dynamic film soundtracks
High-frequency and boundary compensation adjustments optimize
•
performance in a wide variety of acoustic applications
Low frequency acoustic response tailored for optimum blending with
•
a subwoofer at the Industry-standard 80 Hz.
IC15
In-Ceiling Loudspeaker
