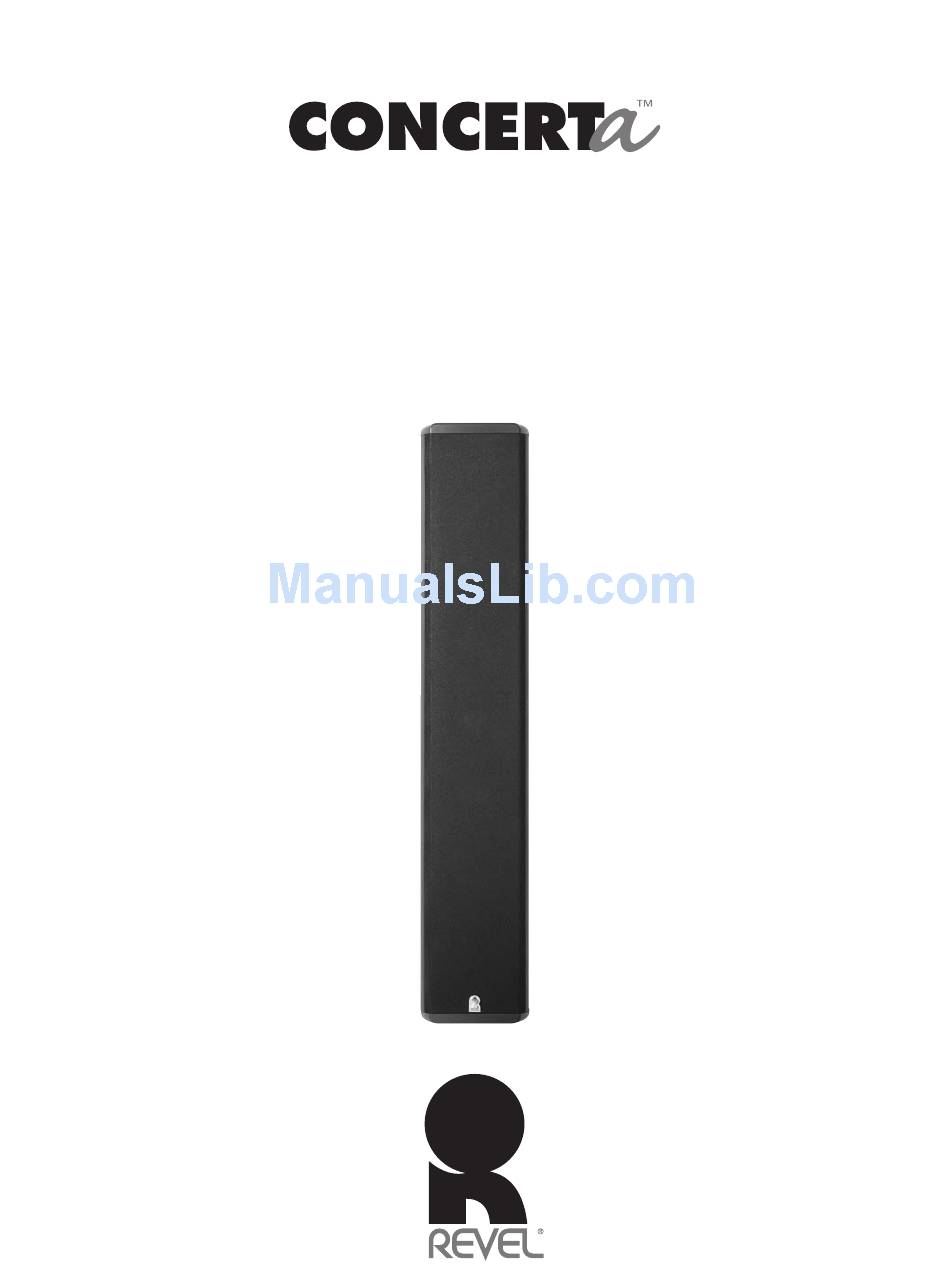

- Page 1 Revel ® Owner’s Manual...
-
Page 2: Table Of Contents
® ™ Revel Concerta M10 Owner’s Manual Table of Contents Introduction Planning Your System Placement Installation Tabletop/Shelf Placement Assembly Wall-Mounting the M10, Using the Included Wall Bracket Wiring the Speaker Maintenance and Service 10 Specifications... -
Page 3: Introduction
The Revel ® Concerta ™ M10 satellite speaker continues the longstanding Revel commitment to accurate sound reproduction. The proprietary transducers utilizing Micro Ceramic Composite (MCC) diaphragms, precision dividing networks, sophisticated high-frequency waveguides and rigid enclosures all combine to deliver uncompromising performance in any stereo or multichannel home theater system. -
Page 4: Planning Your System
Left/right rear channels are for a 7-channel system. The center rear channel is for a 6-channel system. Note: The Revel Concerta M10 is ideally suited for use with a subwoofer. Contact your Revel dealer for recommendations on subwoofer models for your application. -
Page 5: Tabletop/Shelf Placement Assembly
Tabletop/Shelf Placement Assembly Step One Choose one of the three shelf stands on which to mount the satellite. If you decide to place the stand next to a television, the television’s height should be taken into consideration. If you choose the shortest stand, follow steps two to four on page 6. - Page 6 Satellite speaker Revel logo Note: The bottom is the end closest to the Revel logo on the front grille and the speaker connections on the rear. Step Three For Small Table Stand Assembly Assemble the table stand plate, the small section and the foot.
- Page 7 Satellite speaker Revel logo Note: The bottom is the end closest to the Revel logo on the front grille and the speaker connections on the rear. Step Three For Medium and Large Table Stand Assembly Run the speaker wire through the collar. Using three screws, attach the table stand plate to the medium or large section, as shown.
-
Page 8: Wall-Mounting The M10
End cap Satellite speaker Note: The bottom is the end closest to the Revel logo on the front grille and the speaker connections on the rear. Wall bracket Step Five Connect the wires (see page 9). -
Page 9: Wiring The Speaker
After correctly placing and wiring the M10 and the rest of your speaker system, adjust the levels for all of the channels as recommended by the manufacturer of your receiver/processor. -
Page 10: Specifications
Specifications Revel ® Concerta ™ Frequency Response (±3dB) Recommended Amplifier Power Range Sensitivity (2.83V @ 1m, 2π anechoic) Nominal Impedance Crossover Frequency Low-Frequency Drivers LF Extension Mid-Frequency Drivers High-Frequency Driver External Dimensions (H x W x D) Weight (Net) 22.94 30.5... -
Page 11: Limited Warranty
Limited Warranty A valid serial number is required for warranty coverage. This Revel warranty protects the original retail purchaser for a period of five (5) years (parts and labor) from any failure as a result of original manufacturing defects, so long as: 1. - Page 12 Revel, the Revel logo and Concerta are trademarks of Harman International Industries, Incorporated, in the United States and/or other countries. Dolby and Pro Logic are registered trademarks of Dolby Laboratories. DTS is a registered trademark of DTS, Inc. Features, specifications and appearance are subject to change without notice.
