# Action
3 Select setting 10.
("X×" depends on the setting
that you want to select.)
4 Display the value of setting
10.
(there are 8 indoor units
connected)
5 Quit mode 1.
6.1.6

To use mode 2

In mode 2 you can make field settings to configure the system. How
to do this differs slightly depending on the model.

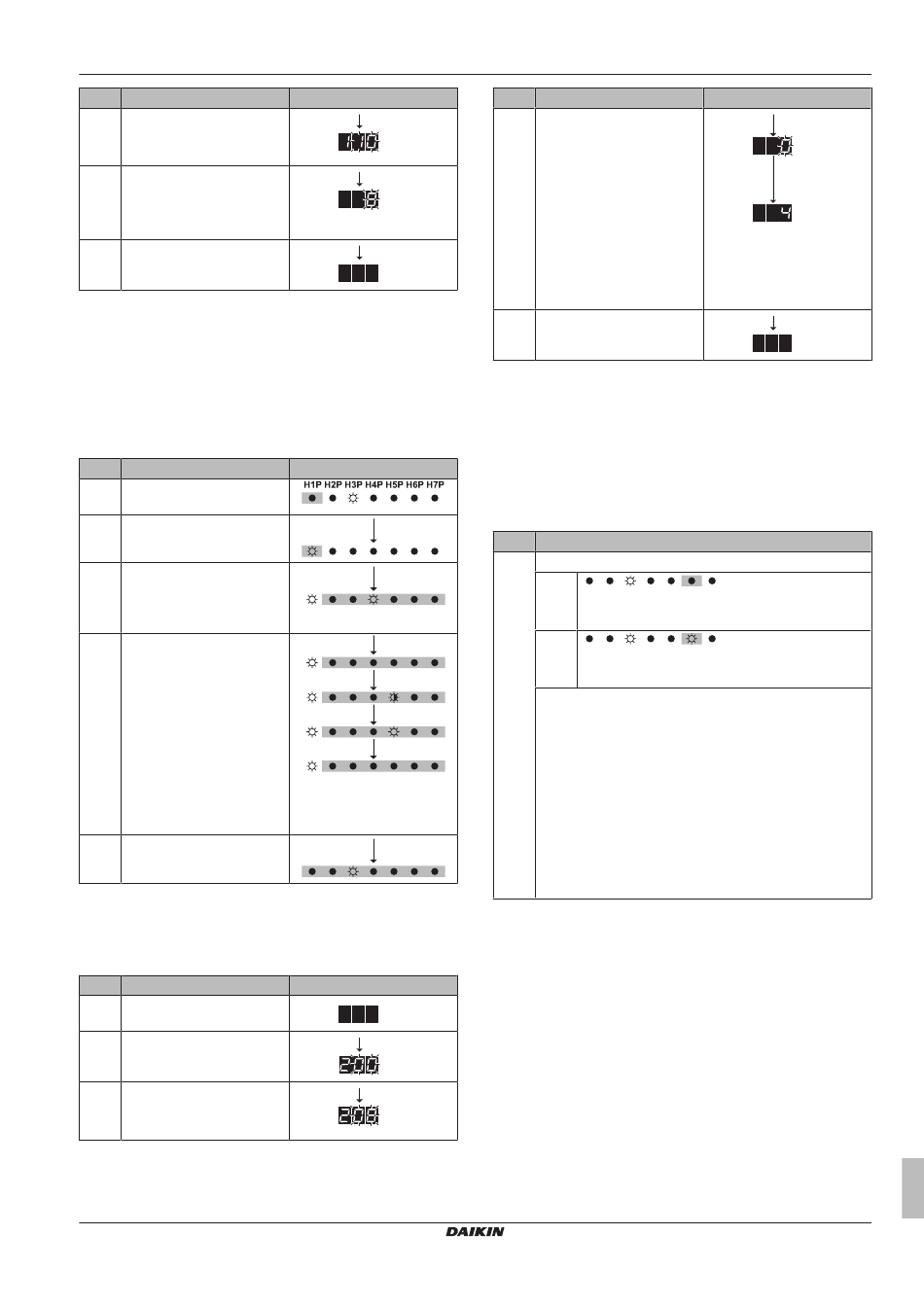

Example: 7‑LEDs display – Mode 2
(in case of RXYSQ8)
You can change the value of setting [2‑8] (= T
during cooling operation) to 4 (= 8°C) as follows:
# Action
1 Start from the default
situation.
2 Select mode 2.
3 Select setting 8.
("X×" depends on the setting
that you want to select.)
4 Select value 4 (= 8°C).
a: Display the current value.
b: Change to 4. ("X×"
depends on the current
value, and the value that you
want to select.)
c: Enter the value in the
system.
d: Confirm. The system starts
operating according to the
setting.
5 Quit mode 2.
Example: 7‑segments display – Mode 2
(in case of RXYSQ10+12)
You can change the value of setting [2‑8] (= T
during cooling operation) to 4 (= 8°C) as follows:
# Action
1 Start from the default
situation.
2 Select mode 2.
3 Select setting 8.
("X×" depends on the setting
that you want to select.)
RXYSQ8~12TMY1B
VRV IV-S system air conditioner
4P400263-1F – 2017.02
Button/display
BS2 [X×]
BS3 [1×]
BS1 [1×]
6.1.7
target temperature
In mode 1 (and in default situation) you can read out some
e
information. What you can read out differs depending on the model.
Button/display
7‑LEDs display – Default situation (H1P OFF)
(in case of RXYSQ8)
You can read out the following information:
BS1 [5 s]
H6P
BS2 [X×]
(= binary 8)
a
BS3 [1×]
b BS2 [X×]
c BS3 [1×]
d BS3 [1×]
BS1 [1×]
target temperature
e
Button/display
BS1 [5 s]
BS2 [X×]
# Action
4 Select value 4 (= 8°C).
a: Display the current value.
b: Change to 4. ("X×"
depends on the current
value, and the value that you
want to select.)
c: Enter the value in the
system.
d: Confirm. The system starts
operating according to the
setting.
5 Quit mode 2.
Mode 1 (and default situation): Monitoring
settings
Value / Description
Shows the status of low noise operation.
OFF
Unit is currently not operating under low noise
restrictions.
ON
Unit is currently operating under low noise
restrictions.
Low noise operation reduces the sound generated by the
unit compared to nominal operating conditions.
Low noise operation can be set in mode 2. There are two
methods to activate low noise operation of the outdoor unit
system.
▪ The first method is to enable an automatic low noise
operation during night time by field setting. The unit will
operate at the selected low noise level during the
selected time frames.
▪ The second method is to enable low noise operation
based on an external input. For this operation an optional
accessory is required.
6 Configuration
Button/display
a BS3 [1×]
b BS2 [X×]
c BS3 [1×]
d BS3 [1×]
BS1 [1×]
