- Page 1 17.3” 3G-SDI TFT LCD MONITOR TLM-170L / TLM-170LM / TLM-170LR Instruction Manual...
-
Page 2: Table Of Contents
Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. -
Page 3: Fcc Compliance Statement
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed. -
Page 4: Warranty
State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. -
Page 5: Introduction

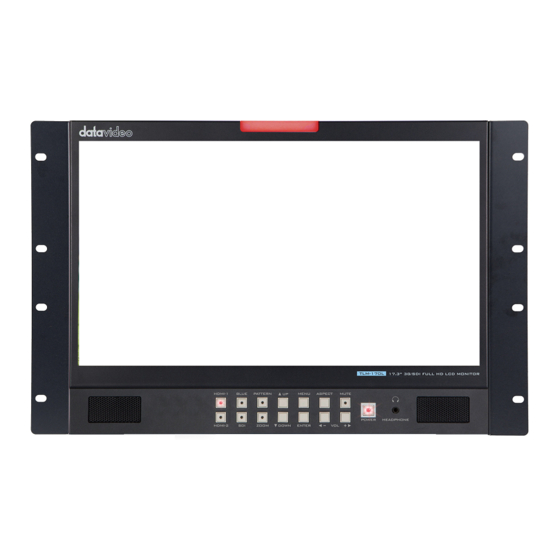

Introduction The Datavideo TLM-170L monitor is designed for superior performance. Whether your application is in a live production gallery, 19’’ rack monitoring, OB Van or a video editing suite the TLM-170L will help you confidently monitor the pictures within your chosen workflow. - Page 6 1920x1080P @ 24 Support Support 1920x1080i @ 59.94 Support Support 1920x1080i @ 60 Support Support 1920x1080i @ 50 Support Support 1280x720P @ 59.94 Support Support 1280x720P @ 60 Support Support 1280x720P @ 50 Support Support 1280x720P @ 23.98 1280x720P @ 24 720 x 480i (NTSC) Support Support...
-
Page 7: Connections And Controls
Connections and Controls Front Panel Bi-Color Tally Light Menu Mute Navigation Button Buttons Aspect Blue Only Button Pattern Ratio Button Button Source Select Buttons Zoom Volume Power Headphone Button Control Button Socket Buttons Descriptions Bi-Colour Tally Light Can be used to indicate Live (Red). Select the type of input you are using. - Page 8 This feature is designed for use with HD-SDI and HDMI sources above 720p resolution. Press this button to zoom in to the video on the display. This is strictly a zooming function and does not alter the native aspect ratio of the source pixels to fill the screen. The ZOOM button allows you to toggle the Pixel Zoom feature between zoom x1, x2, x4 and x8.
-
Page 9: Rear Panel
Ports Descriptions Tally light information can be supplied to the TLM-170L from the 3.5mm Tally Light Input Datavideo RMC-140, TB-5 or TB-10 or the ITC-100SL / ITC-200B/E via this socket. For firmware updates only. See Firmware Update section for more USB 2.0 Port... -
Page 10: Osd Menu
OSD Menu The TLM-170L can be set up using an OSD menu system. To display the OSD menu press the MENU button. This menu system is navigated using the Up / Down buttons to change a value or to highlight a menu option. Press the Enter button to select an option or confirm a value. Main Options Sub Options Parameters... -
Page 11: Firmware Update Procedure
Firmware update procedure From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current TLM-170L firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method. -
Page 12: Tlm-170Lr: Fitting The 19" Rack Ears To The Tlm-170L
TLM-170LR: Fitting the 19” Rack Ears to the TLM-170L The TLM-170LR is supplied with 19” Rack Ears which allow the monitor to be rack mounted (19” 7U). Use the supplied screws to attach the left and right rack ears. You will see there are four screws on either side, as illustrated above, plus additional screws at the base of each rack ear, as illustrated below. -
Page 13: Tlm-170Lm: Fitting The Monitor To A 19" Rack
TLM-170LM: Fitting the monitor to a 19” Rack The TLM-170LM is designed to rack mount. When folded away it is 1U high, please bear in mind that when opened for operation the monitor is 7U high, so leave adequate room above for this. -
Page 14: Dimensions
Dimensions All measurements in millimetres (mm) -
Page 15: Vesa Mounting Interface Standard (Mis)
VESA Mounting Interface Standard (MIS) All measurements in millimetres (mm) -
Page 16: Specifications
Specifications Size 17.3'' Resolution 1920 x 1080 Top: 60 deg Bottom: 60 deg View Angle Left: 70 deg Right: 70 deg White Luminance 300cd Contrast VESA Mounting Interface 100mm x 100mm Standard (MIS) HDMI x 2 HDMI Ver. 1.3 Video INPUT BNC x 1 3Gbps/HD/SD-SDI Video OUTPUT... -
Page 17: Service And Support
Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
