Datavideo TLM-102K Instruction Manual

Datavideo TLM-102K Instruction Manual

4k dual 10.1” monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
4K Dual 10.1"
Monitor
TLM-102K

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLM-102K and is the answer not in the manual?

Questions and answers

Related Manuals for Datavideo TLM-102K

Summary of Contents for Datavideo TLM-102K

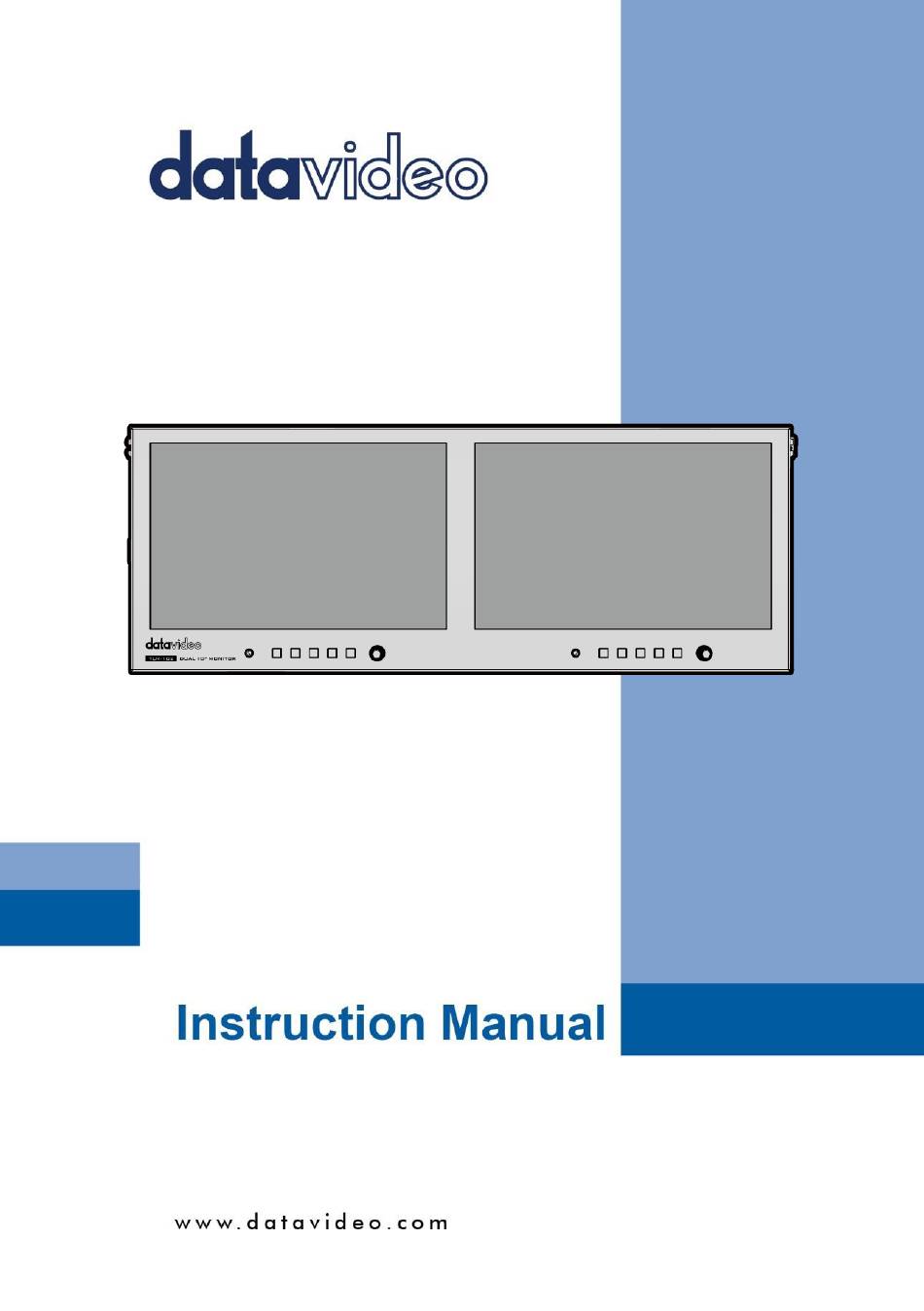

  • Page 1 4K Dual 10.1” Monitor TLM-102K...
  • Page 2 Table of Contents FCC COMPLIANCE STATEMENT ................ 5 WARNINGS AND PRECAUTIONS ..............5 WARRANTY ....................6 ..................6 TANDARD ARRANTY ..................7 HREE ARRANTY DISPOSAL ....................... 7 INTRODUCTION ....................8 ......................8 EATURES CONNECTIONS AND CONTROLS ..............9 ..................... 9 RONT ANEL .....................
  • Page 3 Marker Color ................... 18 Marker Mat ..................... 18 Thickness ....................18 ....................... 19 UNCTION Scan ......................19 Aspect...................... 19 Underscan ....................20 H/V Delay ....................20 Check Field ....................20 Zoom ....................... 21 Freeze ...................... 21 DSLR (HDMI) .................... 21 3G Format (SDI) ..................
  • Page 4 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
  • Page 5 AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
  • Page 6 Warranty Standard Warranty  Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
  • Page 7 Card are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking This symbol on the product indicates that it should not be treated as household waste.
  • Page 8 Introduction The Datavideo TLM-102K 4K Dual 10” monitor is a 4RU Rack mount dual monitor which is designed for the broadcast quality monitoring application. Datavideo TLM-102K’s 4RU rack design, SDI and HDMI inputs and outputs and different mounting methods make it the best solution for various applications such as live vans, on-site monitoring and video wall.
  • Page 9 Connections and Controls Front Panel Buttons Descriptions Headphone Jack Once the 3.5mm headphone jack is connected, the internal speaker will be automatically muted. Follow the menu path Main Menu > Audio > Volume to adjust the audio volume. Power ON/OFF This button powers the monitor ON/OFF.
  • Page 10 Buttons Descriptions F1/F2 Shortcut Keys Press the F1/F2 shortcut keys to access the designated function setting menus. The default function setting menus are shown as follows: F1: Scan F2: Waveform Customization of Button Functions The user is allowed to customize or re-assign function setting menus to the F1/F2 shortcut keys.
  • Page 11 DC In plug to the socket. Tally Light Input Tally light information can be supplied to the TLM-102K via the Tally port. The pinout information is provided below.
  • Page 12 Ports Descriptions Pin No. Signal Name Descriptions Red tally light indicator for monitor A Green Green tally light indicator for monitor A Ground for monitor A’s tally signal Red tally light indicator for monitor B Green Green tally light indicator for monitor B Ground for monitor B’s tally signal Service Only Port (SERVICE)
  • Page 13 OSD MENU The TLM-102K can be set up using an OSD menu system. To display the OSD menu press the MENU knob. This menu system is navigated by rotating the MENU knob. Rotate the MENU knob to change parameter values as well. Press the MENU knob to select an option and the EXIT button to close the OSD menu.
  • Page 14 Blue White Black Marker Mat Thickness Aspect Scan Pixel to Pixel Zoom Full 16:9 1.85:1 Aspect 2.35:1 Underscan Function H/V Delay Check Field GREEN BLUE Zoom...
  • Page 15 Freeze DSLR (HDMI) Normal GBRA444 10 YCbCrA444 10 3G Format (SDI) YCbCrA422 12 GBR444 12 YCbCr444 12 Multi Waveform YCbCr Waveform Trans. Peaking Waveform Green Peaking Color Blue White Peaking Level 0 – 100 False Color Exposure Exposure Level 0 – 100 Histogram...
  • Page 16 Color Time Code (SDI) VITC Volume 0 – 100 Level Meter Audio Audio Ch (SDI) English Traditional Language Chinese Simplified Chinese Color Bar 100% System OSD Timer Back Light 0 – 100 Reset Version V1.0 Picture In Picture, you are allowed to adjust basic image settings such as brightness, contrast, saturation, tint, sharpness and color temperature.
  • Page 17 Therefore, in order to know what will be in frame at different aspect ratios, you can turn on the TLM-102K’s aspect marker (a.k.a. guide frame) during shooting so that you can record the entire screen while still knowing where the cut-off will be by putting a mat over it.
  • Page 18 Safety Marker This sets the safety zone display, which is the standard viewing range of the recorded video. The options are listed as follows:  OFF  95%  93%  90%  88%  85%  80% Marker Color The user is also allowed to apply different colors to the aspect marker.
  • Page 19 Function This allows the user to set advanced settings for the TLM-102K, such as the scan mode, the aspect ratio, underscan mode, H/V delay, check field, zoom, etc. Details of how these functions can be configured are described as follows: Scan This sets the Scan mode of the TLM-102K.
  • Page 20 Underscan When enabled, the entire image content will be displayed within the visible area of the monitor without any parts being cut off. Enable underscan if the image exceeds the screen size and appears cropped. H/V Delay Used to monitor the blanking area for H sync and V sync. In H delay mode, the horizontal sync is delayed so that the horizontal blanking period is displayed on the screen.
  • Page 21 Zoom The zoom function allows you to enlarge the image by a certain percentage (10 – 90%). Note: Zoom control is disabled if the scan mode is set to pixel to pixel. Freeze The monitor’s screen freezes once enabled. DSLR (HDMI) The DSLR setting is solely for Canon’s EOS 5D series of DSLR cameras.
  • Page 22 Waveform The TLM-102K also allows the user to display the image alongside with different monitoring waveforms such as the vector scope, histogram and audio level meter. Image quality can be improved using tools such as peaking filter, false color and zebra.
  • Page 23 Vector Scope The vector scope is used to measure the color information such as Hue and Saturation in a video image. Note: For color bars, the vector scope works with 100% color bars and 75% color bars with a 75% white level.
  • Page 24 This function works well if the subject of the focus is correctly exposed for high contrast. Red, Green, Blue, White and Black are the five available outline colors on the TLM-102K. The Peaking Level determines the sensitivity of the filter. Setting the peaking level to a high value means more areas will be highlighted including lower contrast areas.
  • Page 25 Histogram The histogram is a great tool that helps improve the overall exposure of an image. Y (Luminosity) The Y or luminosity histogram is a graph that describes the human-eye perceived brightness distribution within an image. To produce the luminosity histogram, the image is first broken down into individual pixels.
  • Page 26 These brightness values of all the different colors in an image are represented in a histogram which is known as the RGB histogram. On the TLM-102K, the RGB histogram is shown with the color overlay as depicted in the diagram below.
  • Page 27 See the diagram below for an example of the color histogram. Time Code The TLM-102K is able to decode the following SMPTE timecode formats:  LTC: Linear timecode.  VITC: Vertical interval timecode.
  • Page 28 Note: If the monitor is in SDI mode, you will see 16 SDI embedded audio channels; in HDMI mode, there will be 8 HDMI embedded audio channels. Audio Channel Assign an embedded audio channel of the SDI input to the audio output channel. System In the System sub menu, you will be able to do the following: Change the language of the OSD menu...
  • Page 29 Color Bar Available options are listed as follows:  OFF: disables the color bar  75% or 100% color bar OSD Timer This sets the OSD menu’s ON time; the OSD menu will be automatically turned off after the timer times out. ...
  • Page 30 Firmware Update Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the TLM-102K firmware as they wish or contact their local dealer or reseller for assistance. This section outlines the firmware upgrade process which should take approximately 10 minutes to complete.
  • Page 31 Dimensions All measurements in millimeters (mm)
  • Page 32 Specifications Model Name TLM-102K Product Name 4K Dual 10.1” Monitor Screen Dual 10.1” LCD Chassis 4RU Rack Mount Resolution 1920x1200 Viewing Angle (H) +85/-85 (V) +85/-85 Luminance/Contrast 1000 cd/m 1000:1 Video Inputs 2 x 12G-SDI 2 x HDMI (2.0) Loop Through 2 x 12G-SDI 2 x HDMI (2.0)
  • Page 33 Notes...
  • Page 34 Notes...
  • Page 35 Notes...
  • Page 36 Service and Support https://www.datavideo.com/product/TLM-102K Datavideo Technologies Co., Ltd. All rights reserved 2020 Feb-10.2025 Ver.: E2...
