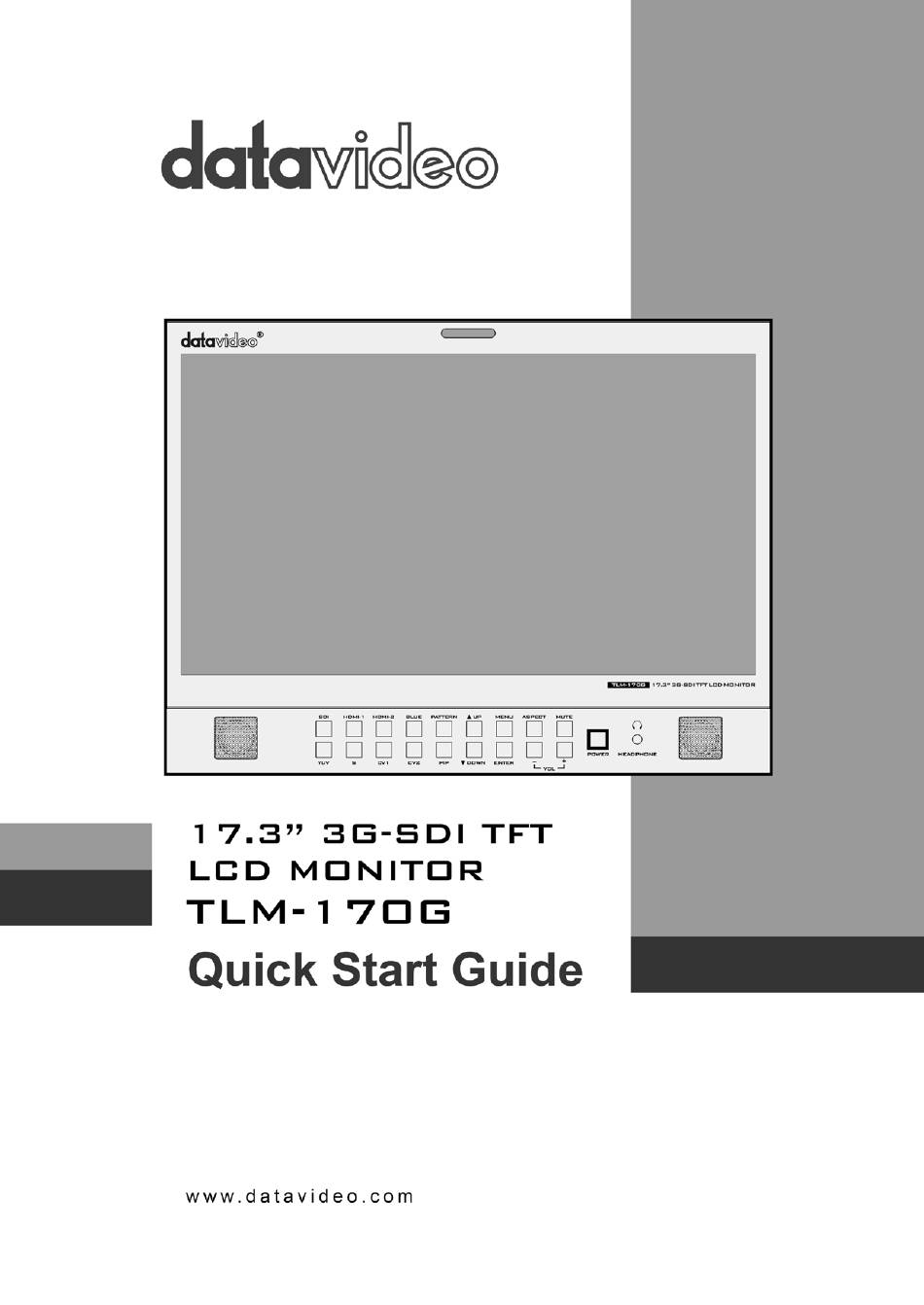

Datavideo TLM-170G Quick Start Manual

17.3" 3g-sdi tft lcd monitor
Hide thumbs Also See for TLM-170G:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Datavideo TLM-170G

Summary of Contents for Datavideo TLM-170G

  • Page 2: Table Of Contents

    WARRANTY .......................... 3 ......................... 3 TANDARD ARRANTY ......................... 4 ARRANTY DISPOSAL ..........................4 PACKING LIST ........................4 TLM-170G MODEL TYPES ....................5 ............................. 5 RONT ANEL ............................7 ANEL MENU OPTIONS ........................8 FIRMWARE UPDATE PROCEDURE..................11 REMOTE CONTROL SETUP ....................12 TLM-170G .......................

  • Page 3: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 4: Two Year Warranty

    Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only • covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires. Disposal...

  • Page 5: Tlm-170G Model Types

    TLM-170G Model Types Model TLM-170G TLM-170GR TLM-170GM Image System Desktop 7U Rack Mount 1U Mobile Tray Rack Mount Front Panel Name Description Bi-Colour Tally Light To indicate Live (Red) or Cued (Amber) source. Select SDI, HDMI, YUV or CV; The active input will be indicated by a red Source Select Buttons LED on the Source Button.
  • Page 6 3.5mm headphone socket; internal speaker circuit will automatically mute Headphone Socket when headphones are connected. N.B. Main Power On/Off switch is located on the rear of the TLM-170G. Pixel ZOOM This function magnifies the incoming source to fill the screen. This is strictly a zooming function and does not alter the native aspect ratio of the source to fill the screen.

  • Page 7: Rear Panel

    BNC Input for HD / SD SDI with a loop through output. Through HDMI Input Video and Audio input from HDMI. Tally light information can be supplied to the TLM-170G from the 3.5mm Tally Light Input Datavideo RMC-140, TB-5 or TB-10 via this socket. Analog Audio Inputs Mono audio inputs to correspond to the analog video inputs (CV 1 &...

  • Page 8: Menu Options

    Menu Options The TLM-170G is set up via on-screen menus. To display the on-screen menu, press the MENU button. The menus are navigated using the Up / Down buttons. Press Enter button to into or exit the setting mode. MAIN ADJUST...
  • Page 9 POSITION LF-TOP / RT-TOP / RT-BOT / LF-BOT SIZE LARGE / SMALL / MID SWAP EXIT LANGUAGE You can choose: English Español Deutsch Español Italiano Dutch Português Russian EXIT SETUP MENU You can choose: OSD TIMEOUT 5~120 sec EXIT SPECAL FUNCTION I You can choose: FRAME RATIO 80 / 90 / 0FF...
  • Page 10 • Transcend (Jet Flash 16G) • Kingston (DT101 G2 8GB) FACTORY RESET You can push ENTER button to reset the TLM-170G to factory default setting. AUDIO CONTROL You can choose: INTERNAL AUDIO ON / MUTE CONTROL / OFF EXTERNAL AUDIO...

  • Page 11: Firmware Update Procedure

    Firmware update procedure From time to time Datavideo may release new firmware to either add new features or fix reported bugs in the current TLM-170P firmware. Customers can update the DAC-70 firmware themselves or contact their local dealer for assistance.

  • Page 12: Remote Control Setup

    Enable DHCP mode on TLM-170G • On the router GUI, find the IP address of the TLM-170G • Open any web browser on the PC and enter the IP address of the TLM-170G to open the interface shown in the diagram below...

  • Page 13: Direct Connection Between The Pc And Tlm-170G

    Configure the PC’s network setting to the following o IP: 192.168.1.102 o Mask: 255.255.255.0 o Gateway: 192.168.1.1 • Open any web browser on the PC and enter the IP address of the TLM-170G (192.168.1.101) to open the interface shown in the diagram below...

  • Page 14: Specifications

    Specifications Panel Size: 17.3'' Contrast: 650 Resolution: 1600 x 900 White Luminance: 220cd View Angle: Top: 20 Bottom: 45 Left: 45 Right: 45 HDMI x 2 (Ver 1.3) HD/SD SDI x 1 Video Input Component x 1 (3 BNC) Composite x 2 SDI Loop Thru x 1 Video Loop Thru Out Composite x 1...

  • Page 15: Dimensions

    Dimensions...
