Datavideo TLM-170KR Service Manual

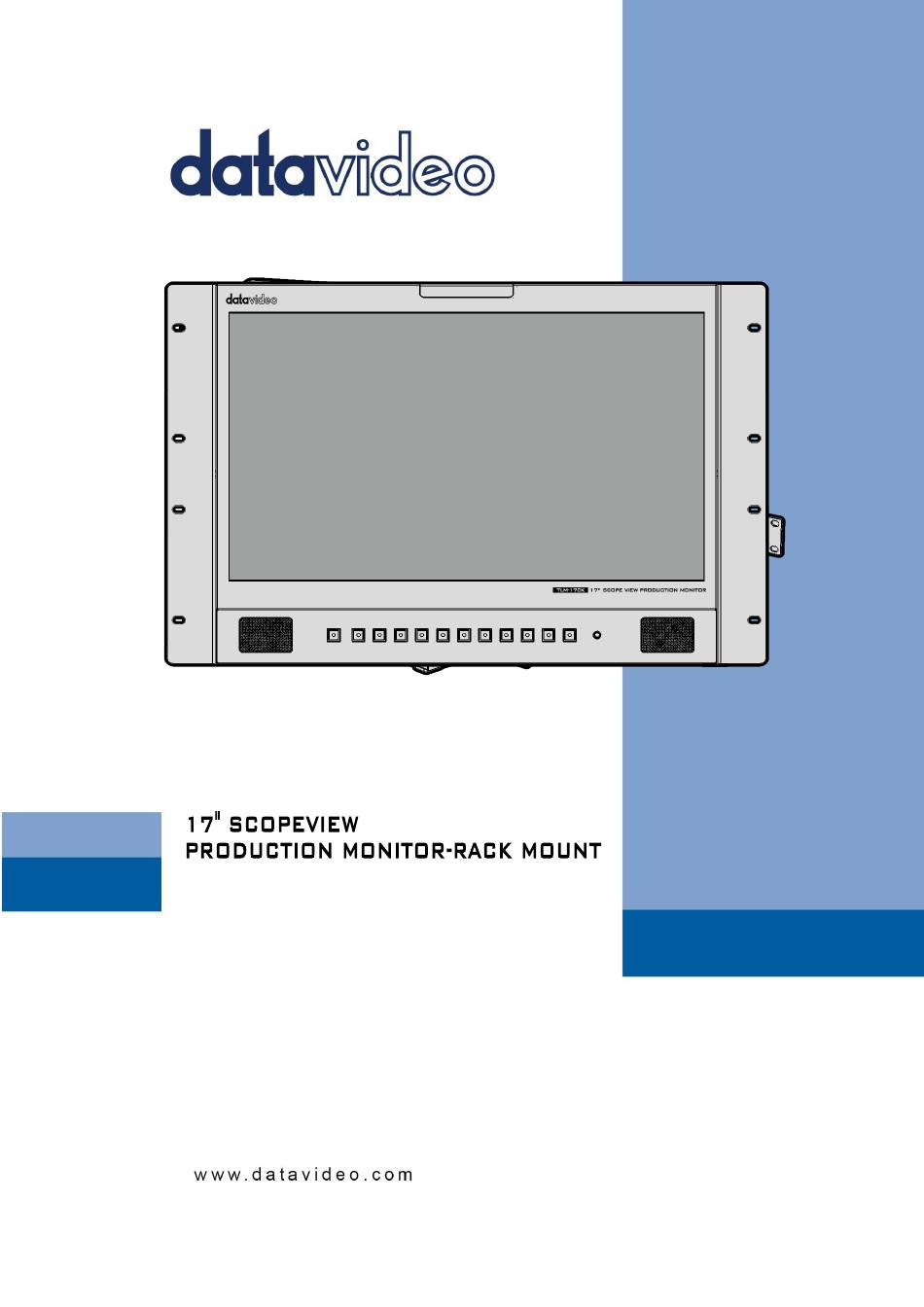

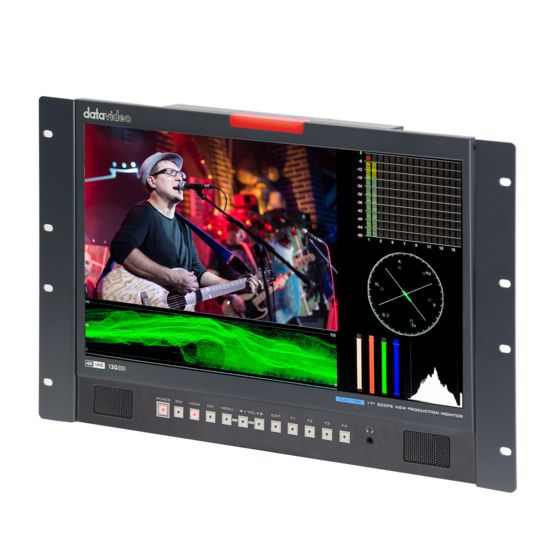

17" scopeview production monitor-rack mount
Hide thumbs Also See for TLM-170KR:

Advertisement

Quick Links

Download this manual
TLM-170KR
Service Manual
Revision:V1.0
2021/12/27

Advertisement

loading

Related Manuals for Datavideo TLM-170KR

Summary of Contents for Datavideo TLM-170KR

  • Page 1 TLM-170KR Service Manual Revision:V1.0 2021/12/27...

  • Page 2: Table Of Contents

    VP-950 TLM-170KR Table of Contents Datavideo Technologies Co., Ltd. Chapter 1. System Disassembling Procedure ................3 頁 | Chapter 2. System assemblyProcedure ..................9 Chapter 3.RMA Parts ..................………………………..15 Chapter 4.PCBA and organization collocation ................18 Chapter 5.Circuit Diagram .......................19...

  • Page 3: Chapter 1. System Disassembling Procedure

    Datavideo Technologies Co., Ltd. Chapter 1. System Disassembling Procedure Remove the rotating RACK rack 頁 |...
  • Page 4 Datavideo Technologies Co., Ltd. G09112300613 Ø3*6mm Screw*8 G09220566012 Rotating RACK rack 頁 |...
  • Page 5 Datavideo Technologies Co., Ltd. Remove the nameplate 頁 | G09600926011 Key Nameplate Remove the CABLE holde G09220443252 G0911D300611 Ø3*6mm Screw*2 CABLE holder...
  • Page 6 Datavideo Technologies Co., Ltd. Remove the AD board back cover G0911D300511φ3.0*5m/m Screw*2 頁 | G0911D300511φ3.0*5m/m Screw*8 G09320926021 AD board back cover VP-926 Remove the TALLY lamp cover and tally board and cable G09112300813 Ø3*8mm Screw*2 G09F00087701 TALLY lamp cover...
  • Page 7 Datavideo Technologies Co., Ltd. Remove the TALLY board and cable 頁 | G07310490601 4P cable with double socket, PT: 1.25, L=60mm GB877-TALLY TLM-170V TALLY BOARD Remove the foam and aluminum foil sticker G09E00008771 Aluminum foil sticker G09B00087701 Support frame Remove the fan and heat sink module and cable...
  • Page 8 Datavideo Technologies Co., Ltd. Remove the cable and cable tie and acetate tape G09F00047602 Acetate tape 35*10mm G10200000009 Cable tie Nylon 78m/m 頁 | CN15 CN12 Remove the IO holder to the rear panel Ø3*6mm Screw*3 G09112300613 Remove the motherboard Ø3*6mm Screw*5...
  • Page 9 Datavideo Technologies Co., Ltd. Remove the conductive sponge and thermally conductive silicone G09B00087702 Conductive sponge 8x10x8mm*6 G09F00092601 thermally conductive silicone*2 頁 | Remove the power cable CON2 Remove the BNC nut and HDMI screw G09130001581 Internal tooth gasket*2 G09120002281 Hexagon thin nut M8*2...
  • Page 10 Datavideo Technologies Co., Ltd. G0911D300613φ3.0*6m/m Screw*3 頁 | Take the motherboard to install the IO holder GB926N0 TLM-170K Moterboard Remove the 4P XLR semi-finished product G09220926011 IO holder VP-926 G07320401102 XLR 4P-M to 2*2P PT:4.2 1007#18 L:110mm G0911D300603φ3.0*6m/m Screw*2...
  • Page 11 Datavideo Technologies Co., Ltd. Remove the front panel G0911D300511φ3.0*5m/m Screw*15 頁 |...
  • Page 12 Datavideo Technologies Co., Ltd. Remove the KB board cable 頁 | Remove the LCD to the holder G0911D200353 M2.0*3.5m/m Screw*8...
  • Page 13 Datavideo Technologies Co., Ltd. Remove the coaxial cable 頁 | Remove the panel and coaxial cable G1301000173F 17.3" UHD TFT-LCD G07323054001 40P COAXIL screen cable PANEL AUO B173ZAN01.1 3840*2160...
  • Page 14 Datavideo Technologies Co., Ltd. Remove the conductive sponge G09B00087703 Conductive sponge 8x3x15mm*4 頁 | Remove the single-sided sponge pad G09B00078804 Single-sided sponge pad 230x95x1mm*3...
  • Page 15 Datavideo Technologies Co., Ltd. Remove the LCD holder G0911D300511φ3.0*5m/m Screw*10 G09200877012 LCD holder 頁 | Remove the POWER SW semi-finished products Switch to 2*2P PT:4.2 G07320401101 1007#18 L:110mm Remove the cable tie and cable G10200000009 Cable tie Nylon 78m/m...
  • Page 16 Datavideo Technologies Co., Ltd. Remove the horn mount and nylon washer G09133083118 Nylon Huashi φ8.0*3.1*H: 1.0mm*2 M3*12mm Screw*2 頁 | G0911D301203 G09133083118 Nylon Huashi φ8.0*3.1*H: 1.0mm*4 Remove the mylar and back cover G09320926011 Back cover VP-926 G09600476061 Mylar VP-476...
  • Page 17 Datavideo Technologies Co., Ltd. Remove the KB board cable G07312001901 20P cable with 頁 | double socket PT: 1.0, L=190mm Remove the KB board Ø3*6mm Screw*7 GB926-KB TLM-170K KEY board G09112300613 Remove the front panel and non-woven G09420926011 Front panel VP-926...
  • Page 18 Datavideo Technologies Co., Ltd. Remove the speaker and cable tie SPEAKER w/ADUIO BOX 4Ω 3W Screw*4 頁 | G03B025RB101 G0911D200501 M2.0*5m/m G10200000009 Cable tie Nylon 78m/m*2 Remove the shock absorbing rubber washer and Horn bracket G09200877021 Horn bracket Shock absorbing rubber washer*2...

  • Page 19: Chapter 2. System Assemblyprocedure

    Datavideo Technologies Co., Ltd. Chapter 2. System assemblyProcedure Horn bracket mounting shock absorbing rubber washer 頁 | G09200877021 Horn bracket Shock absorbing rubber washer*2 G09F00055301 Lock the speaker and secure the cable with a cable tie SPEAKER w/ADUIO BOX 4Ω 3W...
  • Page 20 Datavideo Technologies Co., Ltd. Lock KB board Ø3*6mm Screw*7 頁 | GB926-KB TLM-170K KEY board G09112300613 Insert KB board cable G07312001901 20P cable with double socket PT: 1.0, L=190mm Take off the back cover and attach Mylar G09320926011 Back cover VP-926...
  • Page 21 Datavideo Technologies Co., Ltd. Place the nylon washer on the speaker positioning post 頁 | G09133083118 Nylon Huashi φ8.0*3.1*H: 1.0mm*4 Lock with horn mount and nylon washer(The horn has a white dot on the left) G09133083118 Nylon Huashi φ8.0*3.1*H: 1.0mm*2...
  • Page 22 Datavideo Technologies Co., Ltd. Install POWER SW semi-finished products Switch to 2*2P PT:4.2 G07320401101 頁 | 1007#18 L:110mm Rear cover lock with LCD holder G0911D300511φ3.0*5m/m Screw*10 G09200877012 LCD holder Attach a single-sided sponge pad G09B00078804 Single-sided sponge pad 230x95x1mm*3...
  • Page 23 Datavideo Technologies Co., Ltd. Attached conductive sponge 頁 | G09B00087703 Conductive sponge 8x3x15mm*4 Take the LCD and attach the coaxial cable and buckle into the cable LOCK bracket. G1301000173F 17.3" UHD TFT-LCD G07323054001 40P COAXIL screen cable PANEL AUO B173ZAN01.1 3840*2160...
  • Page 24 Datavideo Technologies Co., Ltd. Pass the coaxial cable through the back cover and place the LCD in the holder 頁 | Lock the LCD to the holder G0911D200353 M2.0*3.5m/m Screw*8...
  • Page 25 Datavideo Technologies Co., Ltd. Take the front panel to process the semi-finished product, pass the KB board cable through the back cover, and break into the front panel. 頁 | Lock front panel G0911D300511φ3.0*5m/m Screw*15...
  • Page 26 Datavideo Technologies Co., Ltd. 頁 | Take the IO holder and lock the 4P XLR semi-finished product G09220926011 IO holder VP-926 G07320401102 XLR 4P-M to 2*2P PT:4.2 1007#18 L:110mm G0911D300603φ3.0*6m/m Screw*2 Take the motherboard to install the IO holder(Temporarily withdraw European terminal)
  • Page 27 Datavideo Technologies Co., Ltd. G09130001581 Internal tooth gasket*2 G09120002281Hexagon thin nut M8*2 頁 | Plug in the power cable and european terminal CON2 Attach a conductive sponge and thermally conductive silicone to the motherboard G09B00087702 Conductive sponge 8x10x8mm*6 G09F00092601 thermally conductive silicone*2...
  • Page 28 Datavideo Technologies Co., Ltd. Lock the motherboard Ø3*6mm Screw*5 頁 | G09112300613 Lock the IO holder to the rear panel Ø3*6mm Screw*3 G09112300613 Plug in the cable and fasten it with a cable tie and attach acetate tape G09F00047602 Acetate tape 35*10mm...
  • Page 29 Datavideo Technologies Co., Ltd. Locked fan and heat sink module and cable Cooling fan + heat sink 45*45*10mm YY4510L05B 5V including cable G14090345101 頁 | G0911D300611 Ø3*6mm Screw*4 Place the foam and aluminum foil sticker G09E00008771 Aluminum foil sticker G09B00087701 Support frame Take the TALLY board to insert the cable G07310490601 4P cable with double socket, PT: 1.25, L=60mm...
  • Page 30 Datavideo Technologies Co., Ltd. Lock the TALLY lamp cover and tally board and attach the cable to the motherboard G09112300813 Ø3*8mm Screw*2 頁 | G09F00087701 TALLY lamp cover Lock the back cover of the AD board G0911D300511φ3.0*5m/m Screw*8 G09320926021 AD board back cover VP-926...
  • Page 31 Datavideo Technologies Co., Ltd. Locking CABLE holde G09220443252 頁 | G0911D300613 Ø3*6mm Screw*2 CABLE holder Front panel attached to the nameplate G09600926011 Key Nameplate...
  • Page 32 Datavideo Technologies Co., Ltd. Lock with rotating RACK rack G09112300613 Ø3*6mm Screw*8 G09220566012 Rotating RACK rack 頁 |...
  • Page 33 Datavideo Technologies Co., Ltd. 頁 |...

  • Page 34: Chapter 3.Rma Parts

    Datavideo Technologies Co., Ltd. Chapter 3.RMA Parts RMA Parts 頁 | Model name: VP-950 TLM-170KR Item 1 Item 2 Item 3 Description: Description: Description: SPEAKER w/ADUIO BOX 4Ω 3W M2.0*3.5m/m Screw 3*6mm Screw Ø FC-A-25RB101-3W-4-W400L- P2-4P Part Number: Part Number:...
  • Page 35 Datavideo Technologies Co., Ltd. RMA Parts Model name: VP-950 TLM-170KR 頁 | Item 10 Item 11 Item 12 Description: Description: Description: Horn bracket VP-877 φ8.0*3.1*H:1.0mm Nylon Washer LCD mount VP-877 Part Number: Part Number: Part Number: G09133083118 G09200877012 G09200877021 Item 13...
  • Page 36 Datavideo Technologies Co., Ltd. RMA Parts Model name: VP-950 TLM-170KR 頁 | Item 19 Item 20 Item 21 Description: Description: Description: Non-woven VP-553 40*60mm Acetate tape VP-476 35*10mm VP-877 Aluminum foil sticker (L)78x(W)19x(T)0.05mm Part Number: Part Number: Part Number: G09B00005532...
  • Page 37 Datavideo Technologies Co., Ltd. RMA Parts Model name: VP-926 TLM-170K 頁 | Item 19 Item 20 Description: Description: MYLAR VP-476 30*25*0.1(t) Rotating RACK rack Part Number: Part Number: G09220566012 G09600476061...
  • Page 38 Datavideo Technologies Co., Ltd. RMA Parts Model name: TLM-170K(G13309260201 VP-926 TLM-170K module) VP-926 頁 | Item 1 Item 2 Item 3 Description: Description: Description: Switch(RS601A-1020011BB) to 2*2P 4P cable with double female 20P cable with double female seat (5557H) PT:4.2 1007#18 L:110mm seat P:1.25 1571#28 L:60mm...
  • Page 39 Datavideo Technologies Co., Ltd. RMA Parts Model name: TLM-170K(G13309260201 VP-926 TLM-170K module ) VP-926 頁 | Item 10 Item 11 Item 12 Description: Description: Description: Thermally conductive silicone 17.3" UHD TFT-LCD PANEL Cooling fan + heat sink VP-926 29*23*0.5t AUO B173ZAN01.1 3840*2160...

  • Page 40: Chapter 4.Pcba And Organization Collocation

    Datavideo Technologies Co., Ltd. Chapter 4.PCBA and organization collocation 頁 | Version Compatibility Table Model Name: TLM-170K (VP-926) Date MAIN board PCB VER. GB926-KB GB877-TALLY FW Ver. 2021/08 FPGA:V1.2 GB926N0 Software:V1.3.2 Note Electronic Engineer 1).Red is the last. Mechanical Engineer...

  • Page 41: Chapter 5.Circuit Diagram

    Datavideo Technologies Co., Ltd. Chapter 5.Circuit Diagram 頁 |...
