Summary of Contents for Datavideo TLM-170H
-
Page 1: Instruction Manual
17.3” WIDESCREEN LCD TFT MONITOR. TLM-170H / HR / HM Instruction Manual www.datavideo-tek.com... -
Page 2: Table Of Contents
Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or... -
Page 3: Warnings And Precautions
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, damaged or otherwise stressed. -
Page 4: Warranty
Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires. -
Page 5: Tlm-170H Model Types
Desktop Stand (LA-100-2) 7U Rack Mounts 1 RCA to 1 RCA Cable Y/C Cable (S-Video) 1.2m AC Power Cord Cable Tie 36cm Cable Tie 12cm Switch adaptor DC 12V 4.16A Screw M3*6mm Screw M5*10mm Screw M4*6mm TLM-170H Series Instruction Manual... -

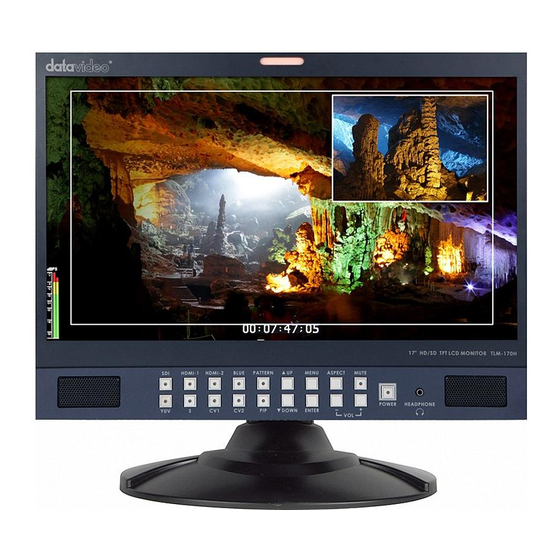

Page 6: Product Overview
The Datavideo TLM-170H monitor is designed for superior performance. Whether your application is in a live production gallery, 19’’ rack monitoring, 12V OB truck or a video editing suite the TLM-170H will help you confidently monitor the pictures within your chosen workflow. -
Page 7: Supported Formats
The TLM-170H panel will support/display the following 60Hz computer resolutions when supplied via a standard DVI to HDMI cable. Please note the TLM-170H panel is natively 1600 x 900 pixels so certain resolutions may be slightly edge cropped and bars/columns may be shown with other resolutions when the panel is switched between 16:9 and 4:3 using the aspect button. -
Page 8: Connections & Controls
Adjusts the speaker / headphone volume up / down. Standby Button Switches the TLM-170H screen On from standby / Off to standby N.B. The main Power On/Off switch is located on the rear of the TLM-170H. Headphone Socket 3.5mm headphone socket; internal speaker circuit will automatically... -
Page 9: Rear Panel
12v 2.5A feed. On / Off Switch Main on / off switch, switches the TLM-170H on and off. N.B.The front panel power button will switch the TLM-170H from Standby Mode to On. HDMI Input Video and Audio input from HDMI. -
Page 10: Powering On
Powering On Menu Options The TLM-170H is set up via on screen menus. To display the on screen menu press the MENU button. The menus are navigated using the UP / DOWN buttons. There are six menus: Video Processor, PIP Feature Setting,... -
Page 11: Audio Function Setting
Sub Source Analogue source CVBS / SVIDEO / COMP Audio Function Setting The Audio Functions Setting Menu allows you to adjust the Internal Speaker Mute Control, External Speaker Mute Control and on screen Audio Indicator. To access the options for the selected setting press enter again, so that the option column is highlighted. -
Page 12: Special Function Ii
Special Function The Special Function I Menu has settings for the SDI Time Code Setup and Title Editor. To access the options for the selected setting press enter again, so that the option column is highlighted. Use the Up / Down buttons to navigate the available options. You can Time Code Setup Time Code Display... -
Page 13: Using The 4:3 Mask In 16:9 Mode
Sometimes when viewing 16:9 footage you may want to know what part of the video will be seen on 4:3 monitors for both picture composition and titles. The 4:3 Mask function of the TLM-170H allows you to do this easily by pressing one button during normal 16:9 viewing. -
Page 14: Tlm-170H: Fitting The Desktop Stand To The Tlm-170H
TLM-170H: Fitting the Desktop stand to the TLM-170H The TLM-170H is supplied with a desktop stand (LA-100-2). Please refer to the LA-100-2 User Guide for adjustments to the stand, prior to fitting it to the monitor. To attach the stand to the monitor, align the stand with the VESA 100 mounting holes on the rear of... -
Page 15: Tlm-170Hr: Fitting The 19" Rack Ears To The Tlm-170H
TLM-170HR: Fitting the 19” Rack Ears to the TLM-170H The TLM-170HR is supplied with 19” Rack Ears, these allow the monitor to be rack mounted (19” 7U). Use the supplied screws to attach the left and right rack ears. You will there are four screws either... -
Page 16: Tlm-170Hm: Fitting The Monitor To A 19" Rack
TLM-170HM: Fitting the monitor to a 19” Rack The TLM-170HM is designed to rack mount. When folded away it is 1U high, please bear in mind that when opened for operation the monitor is 7U high, so leave adequate room above for this. The monitor arrives already fitted with sliding rack rails, these have a length adjustment at the rear to suit the distance between the front and rear rack rails of your cabinet. -
Page 17: Specifications
Specifications LCD Display 17.3” TFT LCD Resolution RGB 1600 x 900 pixel Aspect Ratio 4:3 and 16:9 selectable LED Life time 12,000 hrs (approx.) Brightness (Luminance) 220 cd/m² Contrast Ratio 500:1 View Angle Top: 40 deg Bottom: 60 deg Left: 60 deg Right: 60 deg To use 2U 19'' rack mount can support adjustable view angle... -
Page 18: Service And Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
