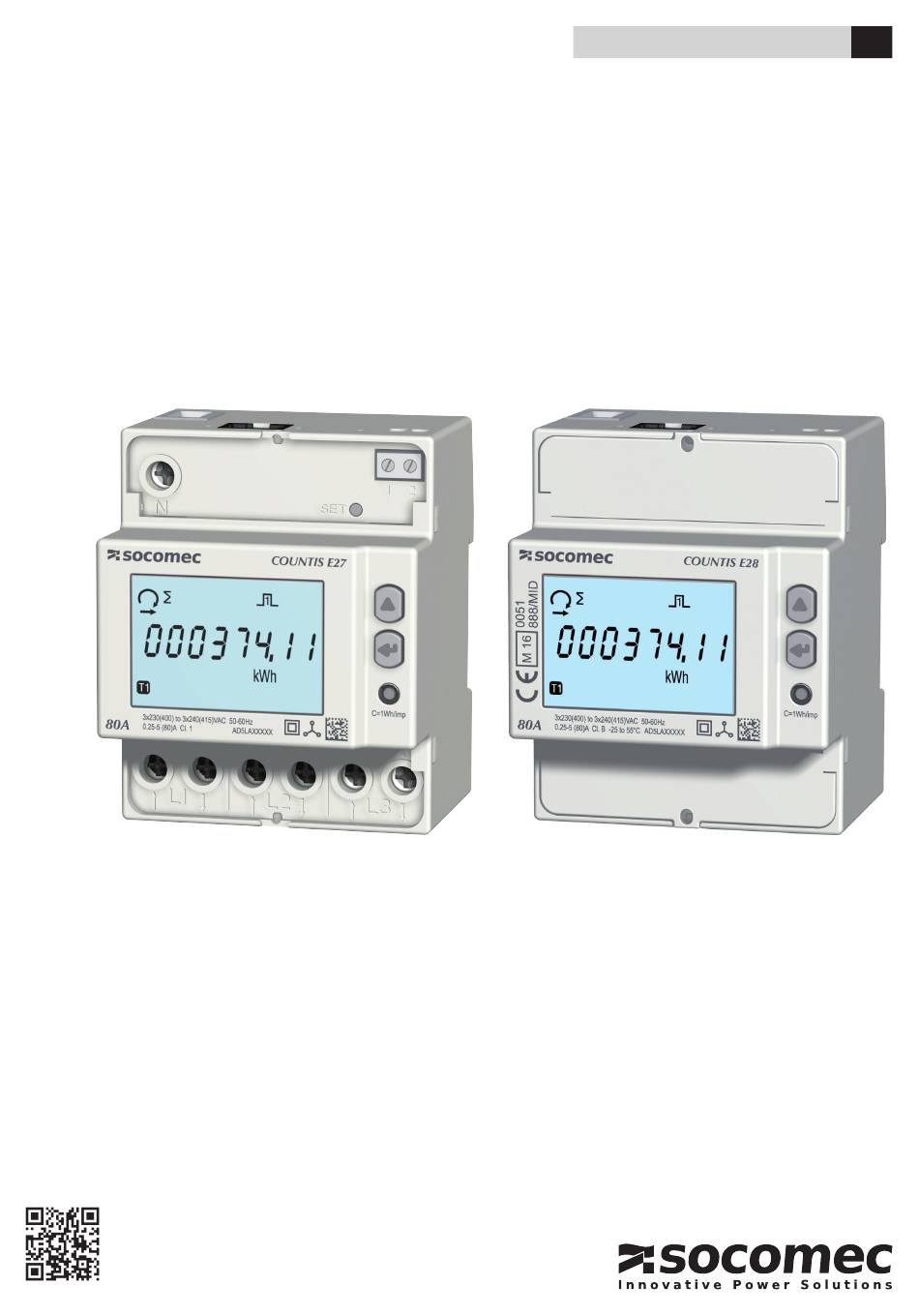

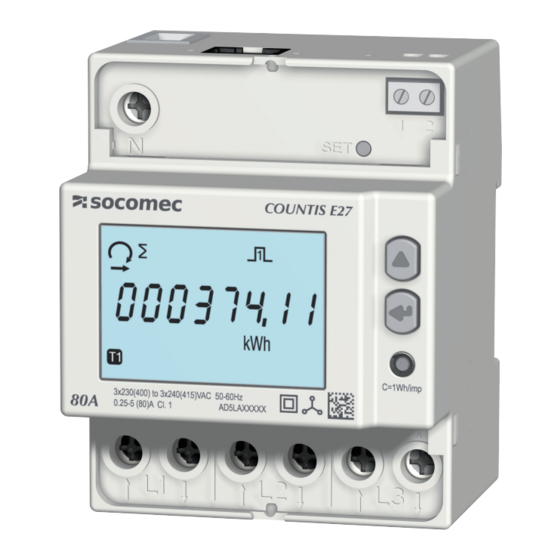

- Page 1 All manuals and user guides at all-guides.com INSTRUCTION MANUAL COUNTIS E27/E28 Three-phase energy meter Direct - 80 A Ethernet COUNTIS E27 COUNTIS E28 - MID www.socomec.com/en/countis-e2x...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 3: Documentation
All manuals and user guides at all-guides.com 1. DOCUMENTATION All documentation on the COUNTIS E27/E28 is available on the website at the following address: www.socomec.com/en/countis-e2x COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 ferrite core - 1 sealing kit (for COUNTIS E28) - 1 Quick Start guide COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 6: Introduction
COUNTIS E28 - Version MID 4850 3055 4.3. Front panels 1. SET button 2. UP button 3. ENTER key 4. Metrological LED 5. LCD display 6. Three-phase network connection 7. Information relating to MID certification 8. Neutral connection COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 7: Lcd Display
12. Tariff display 13. Energy balance 14. Inductive value 15. Capacitive value 16. Imported ( ) or exported energy or power ( 4.5. Dimensions Dimensions: in/mm 2.83 2.83 0.24 0.24 1.73 1.73 2.52 2.52 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 8: Electrical Values Measured
NOTE: ∑ is the sum of the meter readings for each phase, divided by 3. 4 .6 .2 . Energy balance; definition Energy balance Formula (+kWh T1) – (-kWh T1) + (+kWh T2) – (-kWh T2) kvarh (+kvarh T1) – (-kvarh T1) + (+kvarh T2) – (-kvarh T2) COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounted The COUNTIS E27/E28 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 10: Connection
L1 A-V: Phase input L1 A: Phase output L2 A-V: Phase input L2 A: Phase output L3 A-V: Phase input L3 A: Phase output N: Neutral connection 3 x 80A 230/400 VAC 50/60 Hz COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 11: Mid Compliance
The information provided via the TCP Modbus COM is transmitted for information only and has no legal value. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e2x seal COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 12: Communication
The broadcast communication is available for the log that stores the tariff. 8.3. Communication tables The communication tables and relevant notes are available on the COUNTIS E27/E28 documentation page on the website at the following address: www.socomec.com/en/countis-e2x COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 13: Configuration
> 3 sec Start/stop the displayed partial meter Partial meter menu Realtime Reset the displayed partial meter to zero Partial meter menu > 3 sec Every page with the Display test > 10 sec exception of SETUP 1/2 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 14: View All Of The Menu "Setup 2
Ea+ partial (kWh) Tariff T1, T2 Ea+ partial (kWh) Ea- partial (kWh) Tariff T1, T2 Ea- partial (kWh) Eap partial (kVAh) Er+ partial (kVarh) Er- partial (kVarh) Return to the first menu screen, "SETUP 2" COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 15: Detailed View Of Menu "Setup 2
Ea+ partial; Ea- partial Tariff T1, T2; Ea- partial; Eap partial; Er+ partial; Er- partial 000, 001, ..., 254, 255 Netmask 2 Go back to the first menu screen, "SETUP 2" 000, 001, ..., 254, 255 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 16: Example: Setting The Communication Address
Confirm IP address 2 IP address 3 IP address 4 Netmask 1 Netmask 2 Netmask 3 Netmask 4 Gateway 1 Gateway 2 Gateway 3 Gateway 4 Partial Energies Reset XX = default value COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 17: Use
Go back to first screen, menu and exported screen, menu screen, menu "rt" "tot" reactive energy "info" ______________ Active energy bal- ance ______________ Reactive energy balance ______________ Go back to first screen, menu "Par.b" COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 18: Detailed View Of The Menu For Tariff 1, "Tar.1
Imported inductive reactive energy, tariff 1 Go back to first screen, menu "Tar.1" Exported inductive reactive energy, tariff 1 Imported capacitive reactive energy, tariff 1 Exported capacitive reactive energy, tariff 1 Imported reactive energy, tariff 1 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 19: Detailed View Of The Menu For Tariff 2, "Tar.2
Imported inductive reactive energy, tariff 2 Go back to first screen, menu "Tar.2" Exported inductive reactive energy, tariff 2 Imported capacitive reactive energy, tariff 2 Exported capacitive reactive energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 20: Detailed View Of The Total Menu, "Tot
L1, L2, L3, ∑ ∑ Total imported inductive reactive energy Go back to first screen, menu "tot" ∑ Total exported inductive reactive energy ∑ Total imported capacitive reactive energy ∑ Total exported capacitive reactive energy ∑ COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 21: Detailed View Of The Menu Showing Partial Readings And The Energy Balance "Par.b
Exported partial active energy for tariff T1 ∑ Reactive energy balance Exported partial active energy for tariff T2 ∑ Partial exported active energy Go back to first screen, menu "Par.b" ∑ Partial apparent energy ∑ COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 22: Starting Up The Partial Energy Meter
10 .4 .1 . Starting up the partial energy meter Y=OK N=Cancel x1 Confirm 10 .4 .2 . Stopping the partial energy meter Y=OK N=Cancel x1 Confirm 10 .4 .3 . Resetting the partial energy meter to zero >3s Y=OK N=Cancel x1 Confirm COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 23: Detailed View Of The Menu For Realtime Readings, "Rt
L1, L2, L3, ∑ Realtime reactive power Go back to first screen, menu "rt" L1, L2, L3, ∑ Realtime phase/phase voltage ∑ Realtime phase/neutral voltage ∑ Realtime three-phase current ∑ Realtime power factor ∑ COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 24: Detailed View Of The Menu "Info
All manuals and user guides at all-guides.com 10.6. Detailed view of the menu "info" Metrological firmware version Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Installed communication port Go back to first screen, menu "info" COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 25: Diagnostics Messages
Solutions Device not working Check the neutral and phase 1 cable connections. Phases not shown onscreen Check the connections Phases reversed onscreen Check the network configuration Error message Check the meter is working OK COUNTIS E27/E28 - 545881A - SOCOMEC... -
Page 26: Characteristics
Total and partial reading MID metering Bidirectional with three-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E28 Active energy Ea+ Class 1 (IEC 62053-21) Reactive energy Er+ Class 2 (CEI 62053-23) COUNTIS E27/E28 - 545881A - SOCOMEC... - Page 27 Default slave address SAVING Energy registers In FRAM memory ENVIRONMENTAL CONDITIONS Mechanical environment Electromagnetic environment Operating temperature range -25°C to +55°C Storage temperature -25°C to 75°C Humidity ≤ 80% Installation Internal (box/cabinet) Vibrations ±0.075 mm COUNTIS E27/E28 - 545881A - SOCOMEC...
- Page 28 Modular - width of 4 modules (DIN 43880) 72 x 90 x 64 Mounting On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 440 g COUNTIS E27/E28 - 545881A - SOCOMEC...
-
Page 29: List Of Abbreviations
Frame stop bit 1 stop bit 2 stop bits Reset partial energy ConF? Confirm selection Save and exit Exit without saving Continue without saving Tariff management option Tariff management via communication Tariff management via device input COUNTIS E27/E28 - 545881A - SOCOMEC... - Page 30 All manuals and user guides at all-guides.com CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545881A...
