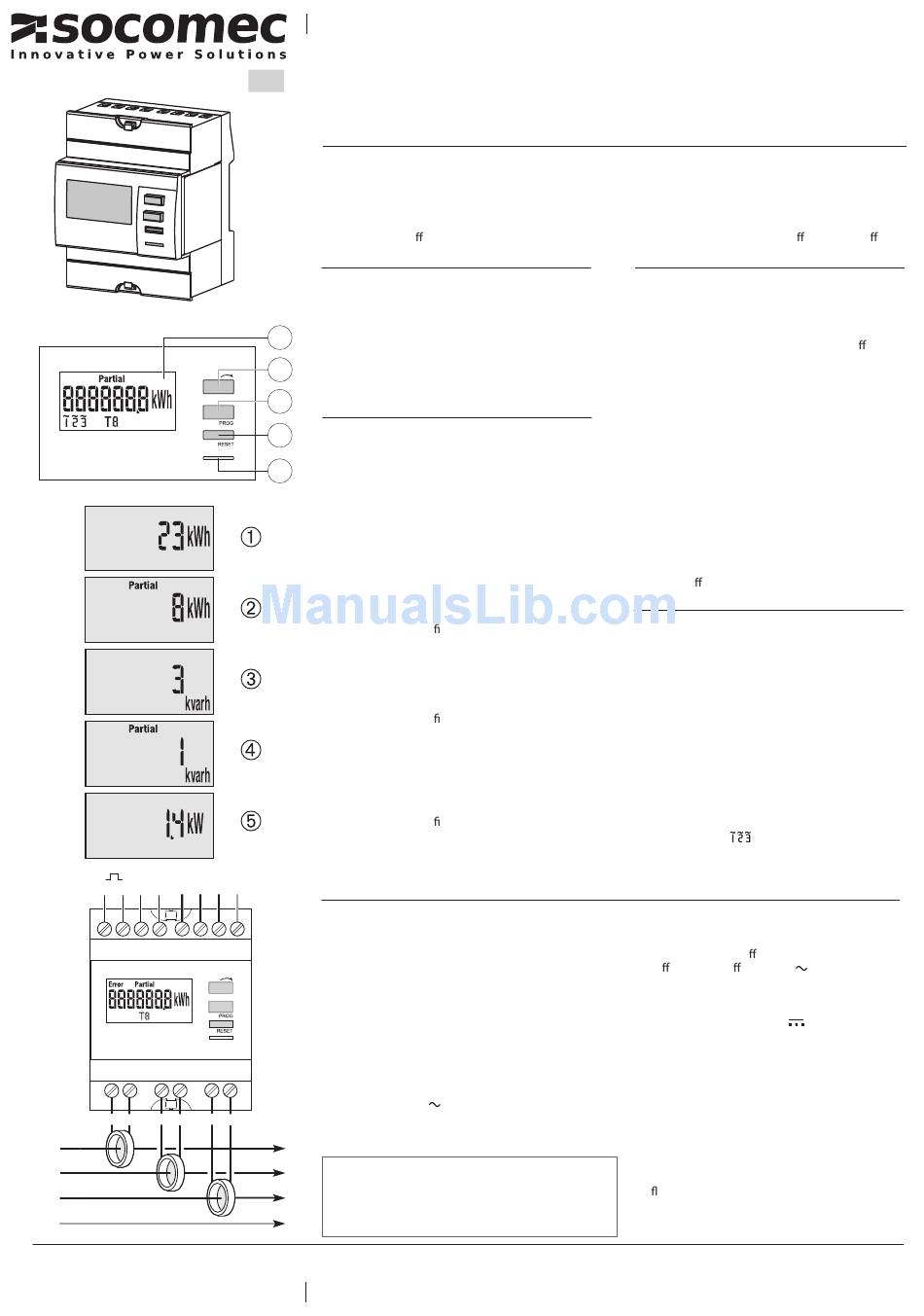

User instructions

Three phase kWh meter,
GB
measure via CT 50 to 6000 A
Operating principle
This kilowatt hour meter measures the active and reactive electrical energy used in an electrical
installation.
This device has a digital LCD to display energy used and power.
This device has a total counter and a partial resettable counter.
In case of two tari levels, the COUNTIS E41 will count separetely the energy used in tari 1 and in tari 2.
Product presentation
A
LCD display.
B
Key to scroll readings.
A
C
"Prog" key to set up the CT ratio and the type of
network.
B
D
Reset to reset the partial counter.
E
Metrological LED (1 Wh = 10 impulses).
C

Meter setup

D
The following settings have to be made before the
meter can be put to use :
E
- CT ratio.
- Type of network (single or three-phase).
- Type of three-phase installation (balanced or
unbalanced).
1. Press the Prog key during 3 sec. to enter the set-
up mode.
2. The CT ratio setting is displayed (100A). Press
the key "Read" repeatedly to scroll the possible
CT values (50, 100, 150, 200, 250, 300, 400, 600,
800... 6000A).
3. Press "Prog" to con rm and switch to the next
setting.
4. The type of network (1L+N, 2L, 3L, 3L+N) is
displayed.
Press the key "Read" repeatedly to scroll the
possible values and select the type of network.
5. Press "Prog" to con rm and switch to the next
setting.
6. On three-phase installations, the type of installa-
tion is displayed as "Balanced/Unbalanced" (Bl,
Unbl).
Press the key "Read" to scroll the values and
select the type of installation.
7. Press "Prog" to con rm.
8. Press the Prog key during 3 sec. to exit the
programming mode.
U U N
2 3

Technical specifications

Metrological characteristics
- Accuracy class B (1%) according to EN50470-3
- Metrological LED :
1 pulse = 0.1Wh current transformer ratio
e.g. in a installation with a 100/5A C.T.,
1 pulse = 0.1Wh /20 pulses = 2Wh
- Starting current : 10 mA
- Basic current : 5 A
- Max current : 6 A
9 11
Technical characteristics
- Consumption: < 0,6 W et 2,8 VA max per phase
- Supply : 230/400 V
- Frequency : 50/60 Hz +/- 2 Hz
S1 S2
- Savings of measures are made regularly and in
L1
case of power failure in EEPROM
Note:
L2
in a unbalanced network, please connect 1 C.T.
for each phase.
L3
if the installation settings is related to a
"balanced network", 1 C.T. on the phase 1 has to be
N
connected
(marque, nom, vignette en couverture)
+/- 15%
Display of readings
The various datas can be scrolled by pressing
the Key "Read".
The Default display will indicate power
consumption according to the current tari .
COUNTIS E40 :
1 st
1 pressure : backlight switches ON.
Total active energy consumption (kWh).
2 nd
2 pressure : partial active energy
consumption (kWh).
3
rd
3 pressure : total reactive energy
consumption (kVAR).
4
th
4 pressure : partial reactive energy
consumption (kVAR).
5
th
5 pressure : instant power consumption
(kW).
COUNTIS E41 :
The COUNTIS E41 provides detailed display of the
total/partial active energy consumptions accor-
ding to tari (T1 or T2) and in total (T).
To reset the partial meter
- Press the scrolling key several times in order
to display partial energy.
- Press the reset button during 3 sec.
The partial meters (active and reactive energy)
will be set to zero.
ERROR message :
In case of bad wiring, an "ERROR" message
will be displayed.
- Check for each phase that current (I1, I2, I3)
and voltage (L1, L2, L3) are measured on the
right phase.
- Check the correct wiring of the product (L/N).
Note :
The information on the display indicates
that the corresponding phase (1, 2,3) is under
voltage.
- Characteristic of tari input COUNTIS E41 :
tari 1 = 0 V, tari 2 = 230 V
- Impulse output characteristics :
• 1 pulse : 100 Wh
• Pulse duration : 100 ms
• External supply :20 ... 30 V
Mechanical characteristics
- Modular casing 4 M (72 mm)
- Protection degree (casing) : IP20
- Protection degree noze : IP50/IK03
- Insulation class : II
Environment
- Storage temperature : -25 °C to +70 °C
- Working temperature : -10 °C to +55 °C
- Connection capacity :
2
• exible : 1 à 6 mm
2
• rigid : 1,5 à 10 mm
