Summary of Contents for socomec COUNTIS ATd
-
Page 1: Operating Instructions

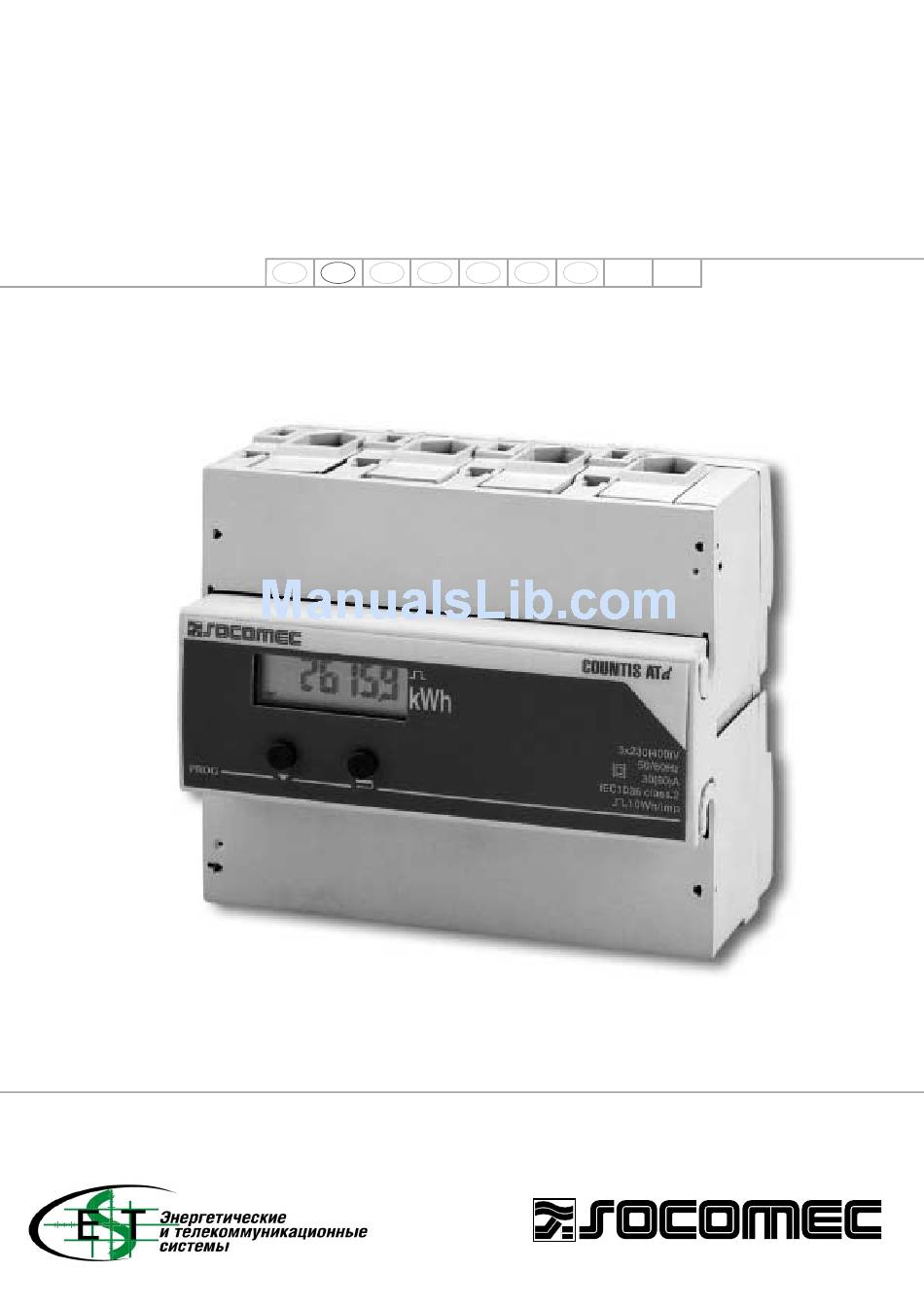

COUNTIS ATd Operating instructions SOCOMEC GROUP SWITCHGEAR AND UPS S w i t c h i n g a n d P r o t e c t i o n S y s t e m s... - Page 2 SOCOMEC - Réf. : 875 452B...
-
Page 3: Table Of Contents
PRELIMINARY OPERATIONS ___________________10 GENERAL INFORMATION ______________________10 INSTALLATION ________________________________11 ELECTRICAL CONNECTIONS __________________12 PROGRAMMING ______________________________14 TECHNICAL CHARACTERISTICS _______________15 SOCOMEC - Réf. : 875 452B... -
Page 4: Preliminary Operations

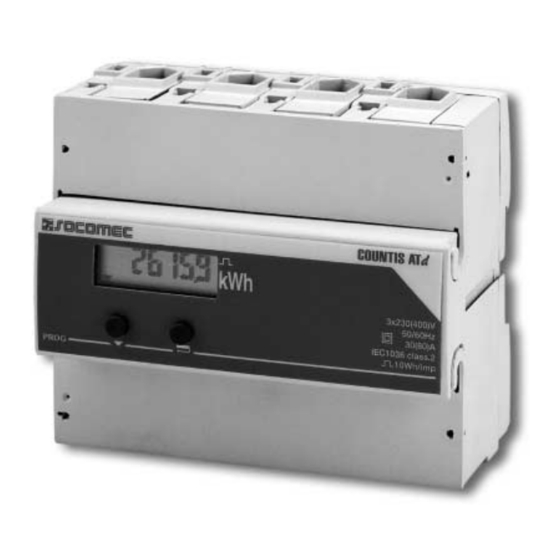

• operating instructions. GENERAL INFORMATION FUNCTIONS The Countis ATd is an active energy play, and is thus fully compliant with meter with 80A direct input. This pro- standard IEC 61036 Class 1. It is enti- duct enables direct readings of total... -
Page 5: Installation
INSTALLATION The Countis ATd is fitted on a DIN rail, mounting plate or on the front of a control panel with a special mounting kit. (Please contact us for more infor- mation) MECHANICAL ENVIRONMENT • avoid proximity to systems which ge- nerate electromagnetic interference •... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS The Countis ATd has two connection modes for current and voltage. TERMINAL-FREE CONNECTION Remove the two covers to access the terminals. This method offers several connection possibilities for current and voltage. Cables can be passed through the Tighten... - Page 7 (flexible and rigid) from 63 to 80 A. PULSE OUTPUT A reed relay (100 V - 0,5 A - 10 VA) available on the Countis ATd provides POWER a pulse for active energy, the value being fixed at 100 Wh. The duration can be programmed (see §...
-
Page 8: Programming
‘rSEt YES’ (reset to zero) To confirm reset to zero and return to network type programming Programming quits automatically if no key is pressed after a 25-second To confirm and quit programming. interval. SOCOMEC - Réf. : 875 452B... -
Page 9: Technical Characteristics
Consumption: ≤ 2.5 VA • screw-in cables: ≤ 0.1 VA • terminal-free cables: VOLTAGE The Countis ATd is self-supplied via Measurement range (Ph/Ph): voltage inputs V1 and V2. • 230 V AC ± 15% (230 model) • 400 V AC ±... - Page 10 H E A D O F F I C E SOCOMEC GROUP SWITCHGEAR AND UPS S.A. capital 11 052 200 € - R.C. Strasbourg 548500 149 B 1, rue de Westhouse - B.P. 10 - 67235 Benfeld Cedex Tél. + 33 03 88 57 41 41 Fax + 33 03 88 57 78 78 "...
