Bradley TouchTime Operation And Service Manual

Operation and Service Guide: Showers
P.O. Box 309 • Menomonee Falls, WI 53052-0309
1.800.BRADLEY • 1.262.251.6000 • bradleycorp.com

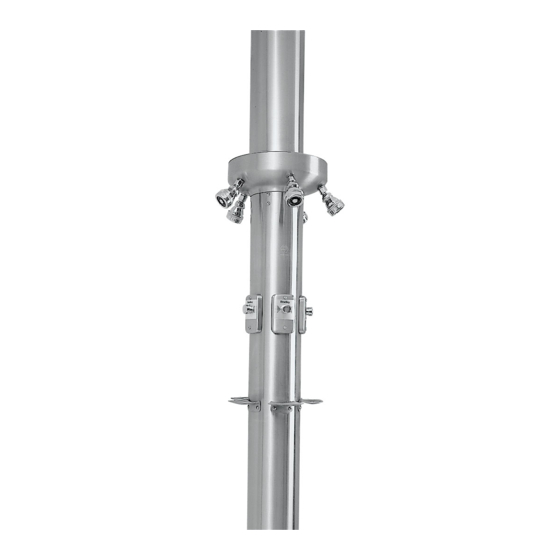

Column Showers - TouchTime (DC)
®
WARNING
The TouchTime activation must be connected with a 12V DC plug in adapter.
Connections to 110 VAC can cause personal injury and will result in damage
to the electronics.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in the supply lines can cause
valves to malfunction.
DO NOT put the 120VAC/12VDC plug in adapter in the shower room. Check
local codes and ordinances for proper location and connection requirements.
Conformity to local codes is the responsibility of the installer.
NOTICE
To help prevent electrical damage to the unit, Bradley recommends the use of
a surge protection. The type of surge protection required and its usage is the
responsibility of the installer/electrician.
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
IMPORTANT
Check local codes and ordinances for proper location and connection
requirements. Compliance and conformity to local codes and ordinances is
the responsibility of the installer.
Read this entire service guide to ensure proper installation and use of the
TouchTime DC valve. When finished with the service, file this manual with
®
the owner or maintenance department.
Separate parts and packaging and make sure all parts are accounted for
before discarding any packaging. If any parts are missing, do not begin
service until obtaining the missing parts.
Bradley • 215-1369-41 Rev. A: ECN 17-03-010
1 of 4
