Bradley Terreon TDB3104 Installation Manual

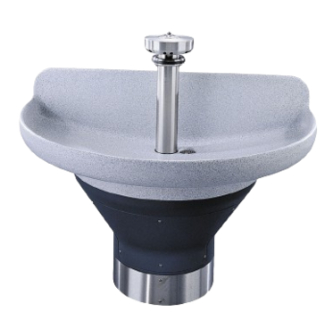

54" semi-circular deep bowl washfountain with air metering valve / extra height 54" semi-circular classic washfountain with 9" deep bowl and air metering valve
Hide thumbs Also See for Terreon TDB3104:
Table of Contents

Advertisement

Quick Links

Download this manual
TDB3104
with Push Button Air Valve
Available in standard height,
juvenile height, and TAS height.
WF3204
with Push Button Air Valve
215-1470 Rev. J; ECN 12-00-004
© 2013 Bradley
Page 1 of 23
1/10/2013
Installation
TDB3104
Terreon
54" Semi-Circular Deep Bowl
®
Washfountain with Air Metering Valve
WF3204
Terreon
Extra Height 54" Semi-Circular
®
Classic Washfountain with 9" Deep Bowl
and Air Metering Valve

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . 2
Rough-In Specifications. . . . . . . . . . . . . . . . . . . . . . . . 5-6
Installing the Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bowl/Pedestal Mounting and Assembly . . . . . . . . . . . . . 8
Installing Drain Spud in Bowl. . . . . . . . . . . . . . . . . . . . . . 8
Connect Supply Tubing to Sprayhead . . . . . . . . . . . . . . . 9
Air Metering Valve Assembly . . . . . . . . . . . . . . . . . . 10-13
Valve and Tubing Connections . . . . . . . . . . . . . . . . . . . 14
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . 16-17
Actuator Module Assembly Components . . . . . . . . . . . 21
Metering Air Valve Maintenance . . . . . . . . . . . . . . . . . . 22
Mixing Valve Maintenance . . . . . . . . . . . . . . 23
®
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terreon TDB3104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon TDB3104

Summary of Contents for Bradley Terreon TDB3104

  • Page 1: Table Of Contents

    Mixing Valve Maintenance ....23 ® 215-1470 Rev. J; ECN 12-00-004 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2013 Bradley PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 23 1/10/2013 bradleycorp.com...

  • Page 2: Pre-Installation Information

    • (4) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal • 1/2" nominal copper tubing for hot and cold water supply lines. • Standard P-trap (vented trap supplied by Bradley when required) • 2" drain lines and fittings •...

  • Page 3: Semi-Circular Washfountain Dimensions

    * Add 2" (51) for TAS height unit Optional equipment may not comply with all ADA dimensional guidelines Model TDB3104 54" Semi-circular - rear view pedestal access 12-1/2" (318) 3-1/2"* 17-1/2" (89) (444) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 4 Mounting Holes 6" 64" (1626) (152) w/ soap 55-1/2" (1410) w/o soap 55-3/4" (1416) 47-1/4" (1200) 43-3/4" 41" (1111) (1041) 34" (864) 23-1/2" (597) 15" (381) Model WF3204 is not ADA compliant Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 5: Rough-In Specifications

    4" (102) 7/8" 54" (1372) Bowl (22) 1/2" Nominal Copper Tubing Supplies from Above 7-3/8" R Bottom Access 2" NPT Drain, Stub Out 3" (76) Above Floor 5-1/4" (133) Vent Drain Through Floor Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 6 7-3/8" R Bottom Access 5-1/4" (133) Trap For Wall Outlet Only 4" (102) Clearance Hole 6" to 13-1/4" Drain Through Wall (152 to 337) Drain Through Floor Trap Located Below Floor (Optional) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 7: Installing The Drain

    See Rough-In information for dimensions not shown. 4" (102) Types A, O with Tie Pipe Bracket Option Table 1 — “B” Trap Dimensions Standard Height Juvenile Height 23-3/8" (594mm) 22-1/2" (572mm) 24-1/2" (622mm) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 8: Bowl/Pedestal Mounting And Assembly

    Tighten the spud and lock nut against the bowl. Bowl Washer (142-068) Secure the strainer to drain spud with the screws provided. Locknut (161-021) Connect spud (or B Trap or Tie Pipe Bracket) to drain. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 9: Connect Supply Tubing To Sprayhead

    Tighten nut to secure tube to fitting (make sure nut is securely tightened). • If connector leaks, reseat tubing. If leaking persists, replace male connector, or call your Bradley representative for assistance. Tubing Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 10 Contact your local (S45-1523) Bradley Rep for assistance) 1/2" Flexible Supply Tube Tie Bar Pre-Pack (S45-055) Access Panel (186-1456) Standard Pedestal Assembly (S17-259) TAS Pedestal Assembly (S17-345) Valve Assembly (A shown) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 11 Assembly Coupling screw. (S65-134) Tie Bar Connect supply stops onto stub-outs. Connect Standard Support Tube flexible hoses to supply stops. Sprayhead (S57-005) (S05-054B) TAS/Juvenile Support Tube (S57-006) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 12 (Part No. Varies with color Semi-Circ. Bowl Pre-Pack of bowl. Contact your local (S45-1523) Bradley Rep for assistance) Vented Trap (111-024) Standard Pedestal Assembly Access Panel (S17-259) (186-1456) TAS Pedestal Assembly (S17-345) Valve Assembly (B shown) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 13: Air Metering Valve Assembly

    Do not apply pipe sealant to (S45-2545) 3/8" Tube to Sprayhead compression fittings. Flexible Volume Hose Control Valve Stop 1/8" Tubing to Actuator Air Valve Assembly Stop Air Valve Thermostatic Mixing Timer Valve Assembly Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 14: Valve And Tubing Connections

    Cold Supply Turn supplies on. Open stop valves Pedestal completely. Open volume control valve Rear completely and check piping installation for leaks. Push actuator button until air is purged from the lines. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 15: Adjust The Temperature

    Push cover down and tighten screw. Clean sprayhead if necessary. Adjust the volume control to control the flow of water. Attach pedestal access panel and kick plate with hardware provided. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 16: Cleaning And Maintenance

    Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
  • Page 17 Many products named are regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products should be used in strict accordance with package instructions. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 18: Soap Valve Parts List And Maintenance

    Valve Attaching Assembly Parts S09-057 S09-057S Item Part No. Description 124-001D Washer — 110-057 — 125-001AN Stopper — 159-114 Reinforcing Plate — 124-001AT Washer — 160-176 Screw — S09-040 Valve S53-045 Adaptor Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
  • Page 19 Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as being “watered down” so users tend to take more than they need, resulting in waste.

  • Page 20: Sprayhead Parts List And Troubleshooting

    The sprayhead shown above includes a perforated neoprene spray ring grommet that is self-cleaning. The water pressure flexes the spray holes which slows accumulation of foreign matter and tends to “break loose” any such deposits that may have accumulated. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 21: Actuator Module Assembly Components

    If leak persists, remove tubing from the fitting and trim the tubing end square with a razor- Sealing Ring Gripping Ridge sharp knife. If leak continutes, replace the fitting or contact your Bradley representative for assistance. Tube Stop Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 22: Metering Air Valve Maintenance

    2. Clean valve seat and inspect for deep gouges or scratches. Replace valve body if streamformers. orifices. necessary. 3. Remove any debris clogging off-center hole in rubber diaphragm. Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...

  • Page 23: Navigator Mixing Valve Maintenance

    198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1470 Rev. J; ECN 12-00-004 1/10/2013...
