Water supply requires a flowing pressure of at least 20 psi, but no greater than 80 psi.
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors used must have a
minimum pull-out rating of 1,000 lbs.
The adaptive infrared activation must be connected with a 12V DC plug-in adapter. Connections to 110 VAC
can cause personal injury and will result in damage to the electronics.
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties may be found under "Products" on our website at www.bradleycorp.com.
215-1249 Rev. T; ECO 19-00-009
© 2019 Bradley
Page 1 of 11
6/19/20177/5/2019

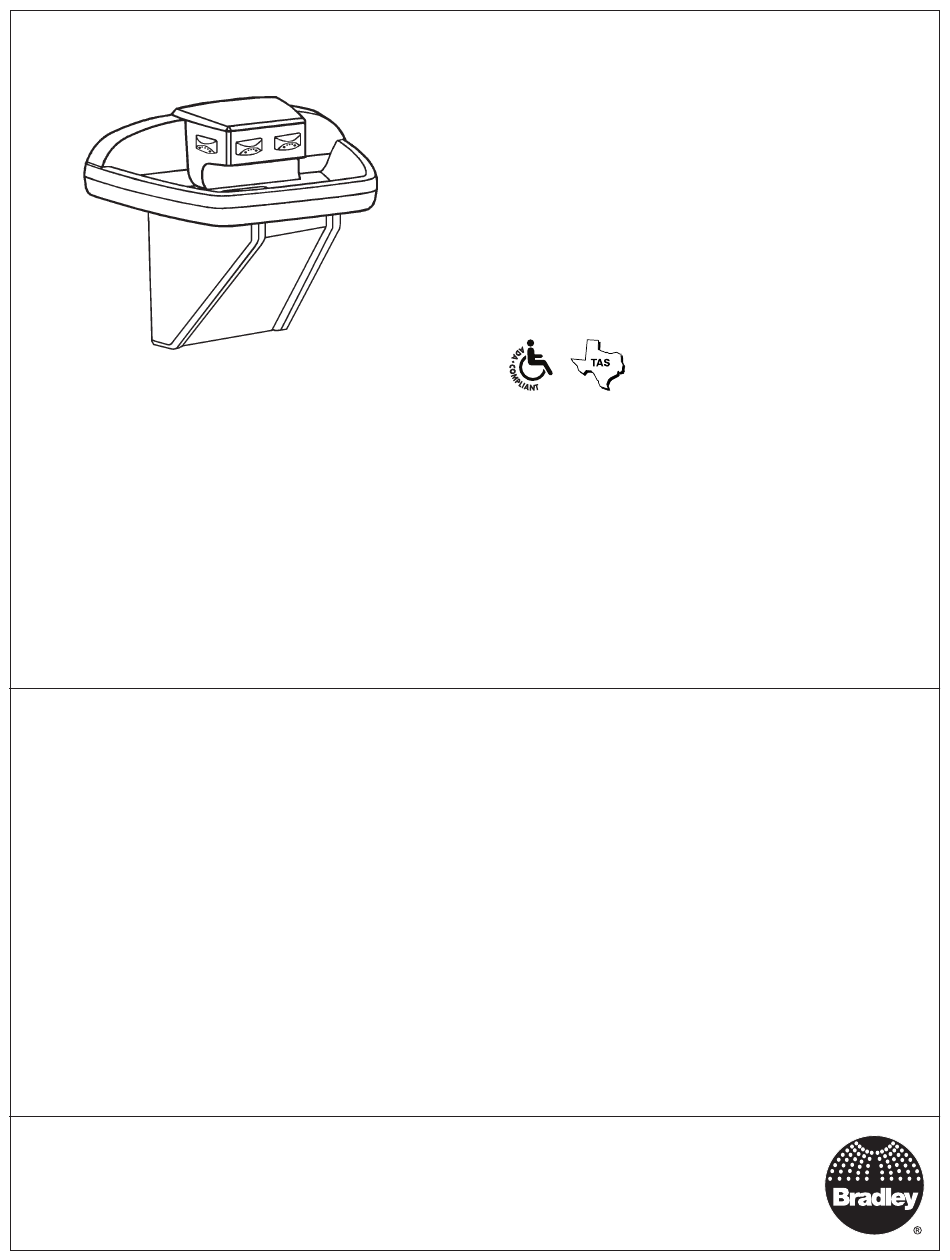

Installation

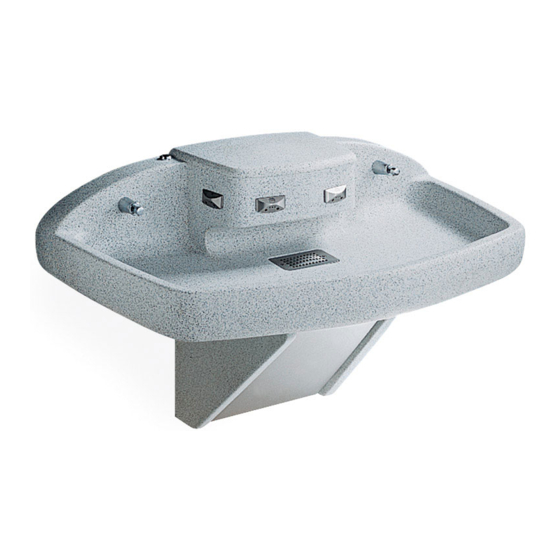

MF2949 Infrared
Terreon
Washfountain with
Adaptive Infrared
(Standard*, Juvenile* and OBC Height)
* Standard and Juvenile Height are ADA/TAS Compliant
Table of Contents
Supplies Required by Installer ........................................................2
Pre-Installation Information .............................................................2
Parts included with the Wall-Hung Quadra-Fount ..........................3
Rough-Ins ........................................................................................4
Install Valve Assembly .....................................................................5
Install Pedestal Panels ....................................................................5
Assemble and Install Bowl ..............................................................6
Electrical and Supply Connections .................................................7
Check Operation .............................................................................8
Install Top Cover and Front Panel ...................................................8
Cleaning and Maintenance for Stainless Steel ...............................9
Troubleshooting - Solenoid Valve ................................................10
Thermostatic Mixing Valve Troubleshooting ..................................11
WARNING
IMPORTANT
Quadra-Fount
®
®
®
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com
Wall-Hung
..........................................9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Terreon Quadra-Fount MF2949 Infrared
Summary of Contents for Bradley Terreon Quadra-Fount MF2949 Infrared
-
Page 1: Table Of Contents
Product warranties may be found under "Products" on our website at www.bradleycorp.com. P.O. Box 309 215-1249 Rev. T; ECO 19-00-009 Menomonee Falls, WI 53052 USA 800 BRADLEY (800 272 3539) © 2019 Bradley +1 262 251 6000 Page 1 of 11 6/19/20177/5/2019 bradleycorp.com... -
Page 2: Supplies Required By Installer
• Pipe sealant and plumber’s putty • 110 VAC power source for 120VAC/12V DC plug in adapter supplied • OPTIONAL: Bradley recommends installing an electrical cut-off switch to the unit. This feature prevents accidental water delivery during regular maintenance and service. -
Page 3: Parts Included With The Wall-Hung Quadra-Fount
(3) 1/4” PLASTIC TUBING 3’ LONG Solenoid Assembly (S08-2414TMA shown, S08-2414TL similar) Hose-Stop Prepack - TMA Hose-Stop Prepack - TL S45-2730 S45-2731 (optional) Hose Hose Infrared Sensor Module (269-1608-DC) Stop Stop 120/12VDC Plug-In Adapter (261-147A) Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 4: Rough-Ins
Outline (641) (57) of Wall (470) 4-1/4" Frame (108) 8-1/2" (216) Finished Floor Finished Floor * Subtract 1" from these dimensions for Ontario Building Code height or 4" for Juvenile Height Model. Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 5: Install Valve Assembly
Tighten the screws to secure the pedestal panels to the frame assembly. Left Pedestal Right Pedestal Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 6: Assemble And Install Bowl
Install strainer in the bowl drain using the two #10-24 x 1/2" flat socket head screws supplied. Connect the drain trap (supplied by installer) to the drain spud and drain line. Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 7: Electrical And Supply Connections
IR Sensor Connector (269-1608-DC) Harness Connector (S83-369B) Loosen the compression nuts. Push the sprayhead supply tubes firmly into the tube connectors until they are fully seated. Tighten the compression nuts by hand. Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 8: Check Operation
Screws retaining screw. Access Panel Tighten the screw to secure the bottom of the access panel in place. #10 - 32 x 3/8" Screw Bracket Slot Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 9: Cleaning And Maintenance For Terreon
For complete instructions on this additional maintenance, visit bradleycorp.com. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days. -
Page 10: Troubleshooting - Solenoid Valve
• reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor. Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019... -
Page 11: Thermostatic Mixing Valve Troubleshooting
198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1249 Rev. T; ECO 19-00-009 7/5/2019...
