LuminAir L,T & H
Fitting and wiring instructions
Instuctions de montage et de cablage
Einbau- und Anschlussanleitung
Bevestigings- en bedradingsinstructies
Supply voltage to transformer/controller 220-240V/1/50Hz
Tension d'alimentation vers transformateur/contrôleur 220-240V/1/50Hz
Sortie vers ventilateur 12V SELV/1/50Hz
Versorgungsspannung für steuertransformator 220-240V/1/50Hz
Ausgangsspannung für Ventilator 12V/ 50Hz – Einphasen-schutz-kleinwechselspannung.
Voedingsspanning naar transformator/regelaar 220-240V/1/50Hz
Uitgangsspanning naar ventilator 12V SELV/1/50Hz
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
VEUILLEZ LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS AVANT DE DÉMARRER I'INSTALLATION.
BITTE ALLE ANWEISUNGEN VOR BEGINN DER INSTALLATIONSARBEITEN AUFMERKSAM LESEN.
LEES ALLIE INSTRCTIES GRONDIG DOOR VOORDAT U MET DE INSTALLATIE BEGINT.
Output to fan 12V SELV/1/50Hz
Stock Ref. No

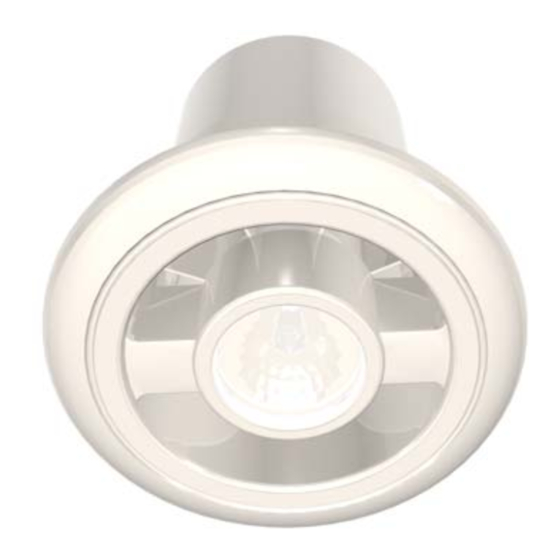

LuminAir L
188110
LuminAir T
188210
LuminAir H 188610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 188110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vent-Axia 188110

  • Page 1 Fitting and wiring instructions Instuctions de montage et de cablage Einbau- und Anschlussanleitung Bevestigings- en bedradingsinstructies Stock Ref. No LuminAir L 188110 LuminAir T 188210 LuminAir H 188610 Supply voltage to transformer/controller 220-240V/1/50Hz Output to fan 12V SELV/1/50Hz Tension d’alimentation vers transformateur/contrôleur 220-240V/1/50Hz Sortie vers ventilateur 12V SELV/1/50Hz Versorgungsspannung für steuertransformator 220-240V/1/50Hz...
  • Page 2 WARNING: This appliance MUST NOT be earthed. The controllers MUST be connected to a 220-240V 50Hz AC single phase mains supply. They provide a 12V 50Hz AC Safety Extra Low Voltage (SELV) output for only one Vent-Axia LuminAir fan/light unit.
  • Page 3 BEFORE REMOVING OR REPLACING THE LAMP ISOLATE THE SYSTEM FROM MAINS SUPPLY. The Vent-Axia LuminAir is specially designed for use with the supplied 12V dichroic flood lamp rated at 20W. The lamp is a straight push in/pull out type. When Removing/Replacing any twisting movement of the lamp should be avoided.
  • Page 4 SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169 TECHNICAL SUPPORT: Tel: 0844 8560594 Fax: 01293 532814 For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 442897 A 0909...
