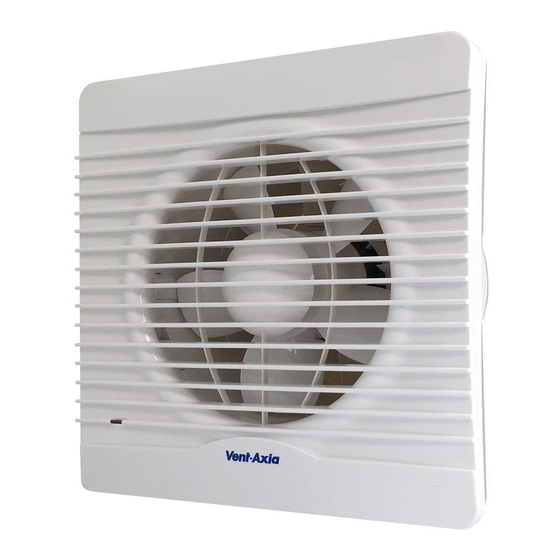

Vent-Axia Silhouette 100B Installation And Wiring Instructions
220-240v 50hz
Hide thumbs
Also See for Silhouette 100B:
- Installation and wiring instructions (24 pages) ,
- Installation and wiring instructions (8 pages) ,
- Installation and wiring instructions (6 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Vent-Axia Silhouette 100B
Summary of Contents for Vent-Axia Silhouette 100B
- Page 1 Silhouette Installation and Wiring Instructions Stock Ref. N° 45 40 55A (100B) 45 40 59A (150X) 45 40 56A (100T) 45 40 60A (150XT) 45 40 57A (100H) 45 40 61A (150XH) 45 40 58A (100TM) 220-240V~50Hz IPX4 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS.
-
Page 2: Safety And Guidance Notes
C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Vent-Axia products. E. The fan should only be used in conjunction with fixed wiring. -
Page 3: Installation
A. INSTALLATION IMPORTANT: The fan should only be used in conjunction with fixed wiring. PANEL/CEILING MOUNTING For panel/ceiling mounting the fan should be installed into a closed duct system of at least 1.2m long or protected by an exterior air grille that must comply with the standard requirements of your country to prevent access to the fans impeller. -
Page 4: Timer Adjustment
WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. SILHOUETTE 100B/150X Single speed fan. Controlled by remote switch (e.g. light switch or auto sensor) Fig.2. SILHOUETTE 100T/150XT Single speed with overrun timer. The fan can be wired to a lighting circuit switch. -
Page 5: Servicing And Maintenance
HUMIDITY SET-POINT ADJUSTMENT BEFORE ADJUSTING THE CONTROLLER, SWITCH OFF THE MAINS SUPPLY. HUMIDISTAT SHOULD ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION. Remove the fan grille. The controller is factory set to switch on at about 70% RH. The humidity set point can be adjusted from 65-95%RH by altering the adjuster on the control PCB. - Page 6 SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169 TECHNICAL SUPPORT: Tel: 0844 8560593 Fax: 01293 539209 www.vent-axia.com For details of the warranty and returns procedure please refer to or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 439014H 0111...
