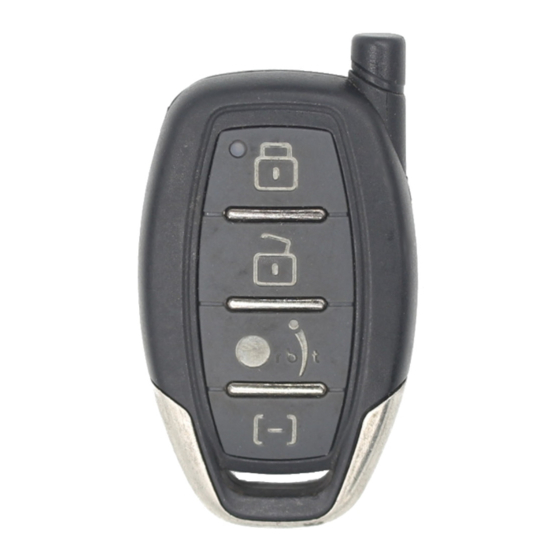

Fortin ORBITF2400 Quick Installation Manual

ORBITF2400

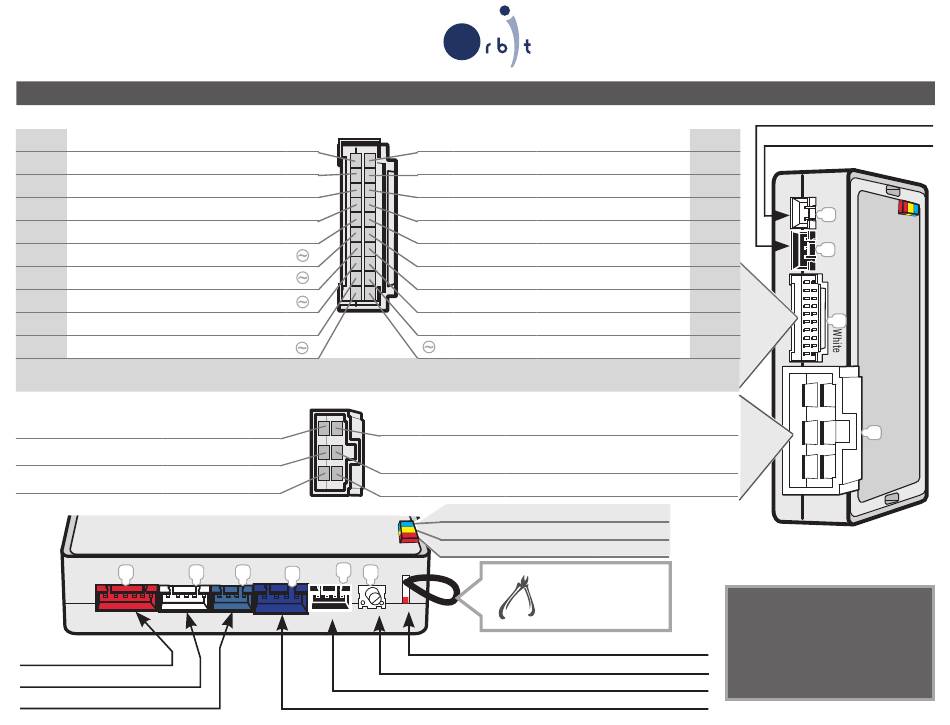

WIRING / CONNECTION GUIDE

(20-PIN) SECONDARY CONNECTOR
(+) Foot Brake
(-) Parking lights
750mA
(-) Trunk Release/AUX
750mA
(-) Hand Brake
(-) Hood/Door
Bypass config.
Bypass config.
Bypass config.
Bypass config.
Bypass config.
750 mA MAXIMUM OUTPUT. DO NOT EXCEED THE MAXIMUM CURRENT OR PERMANENT DAMAGE TO THE MODULE WILL OCCUR THAT WILL NOT BE COVERED
(6-PIN) POWER CONNECTOR
Ground
(+) Ignition
(+) Starter
D C
Red White
(6-PIN) BYPASS RELAY
(5-PIN) CAN-BUS
(4-PIN) DATA-LINK ANTENNA
A1
Black IN
Pink OUT
Yellow/Black OUT
Brown/White IN
Pink/Black IN
Purple/Yellow
Green/White
Green/Red
A20
White/Black OUT
Lt.Blue
UNDER WARRANTY.
E1
OUT
Black
IN
Pink
OUT OUT
Yellow
OUT
IN
E6
I
B J
H
Blue
Blue Black
BYPASS PROGRAMMING BUTTON
(4-PIN) RS-232 DATA-LINK & FLASH-LINK UPDATER PORT
(4-PIN) ANTENNA
IN Yellow (+) BYPASS IGNITION
OUT (-) LOCK
Purple
OUT Purple/White (-) UNLOCK
OUT (-) IGNITION
Green
OUT (-) START
White
OUT (-) DISARM
Orange
OUT Orange/Black (-) HORN/SIREN
OUT Dk.Blue (-) GWR/PROGRAMMABLE
IN Red/Blue BYPASS CONFIG.
Lt.Blue/Black BYPASS CONFIG.
(+) PARKLIGHTS/IGN2/ACC/START
White
PROGRAMMABLE OUTPUT (FUNCTION 2 & 31)
(+) ACC / IGN2
Orange
PROGRAMMABLE OUTPUT (FUNCTION 2 & 31)
(+) 12V
Red
LED Blue CAN ACTIVITY
LED Yellow IGNITION ON
LED Red BYPASS DATA
CUT LOOP FOR
AUTOMATIC
TRANSMISSION
MODE.
REMOTE STARTER PROGRAMMING LED
ALL-IN-ONE DATA INTERFACE
REMOTE STARTER / ALARM
QUICK INSTALLATION GUIDE
GUIDE # 28491
(3-PIN) SHOCK SENSOR
(2-PIN) Valet/
Programming Button
750mA
750mA
750mA
G
White
750mA
F
750mA
Black
2 Amp
750mA
A
download the specific
vehicle installation
guide, user guide or
the latest quick
installation guide at
WWW.FORTIN.CA
E
White
