Filter Dust Bag

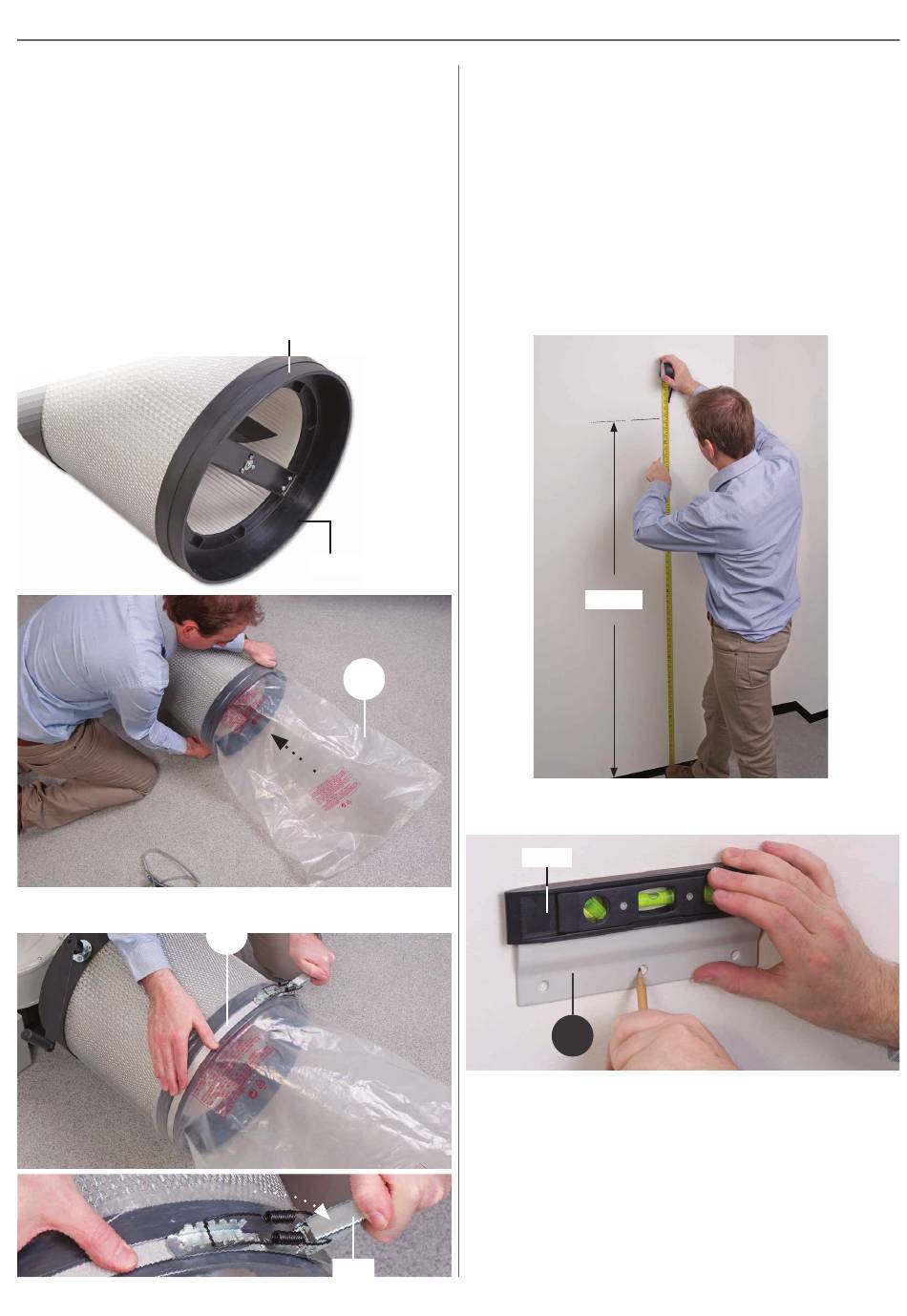

1. Locate the filter retaining belt (5) and dust bag (6).
2. Open up the dust bag and place it up and over the base of
the filter assembly (2), see fig 09-10.
3. Straighten the filter retaining belt (5), position the belt
around the base of the filter making sure the belt slots down
into the filter's machined recess. Latch it down to hold and to
seal the filter assembly, see fig 11-12.
Fig 09-10
Fig 11-12
Retaining belt recess
Base of filter
6
5
Latch
Mounting the Extractor to the Wall
Before mounting the extractor assembly make sure you allow
sufficient clearance and height to comfortably operate the
NVR's control switch and shaker paddle operating handle.
1. We suggest you mount the wall mounting bracket (3) at a
height of 1,650mm from the workshop floor, see fig 13.
DO NOT mount the unit too low that the dust bag (6) drags on
the workshop floor, see the 'Machine Footprint' on page 9.
1,650mm
Level
3
2. Mark a line 1,650mm above workshop floor. Locate the wall
mounting bracket (3), position the bracket against the wall
with the angle section protruding out. Using a level mark
the positions of the three holes in the bracket, see fig 14.
3. Place the bracket (3) to one side, drill the three holes using
a 8mm masonry drill bit and secure the bracket in place using
three wall plugs, washers and screws (NOT Supplied).
