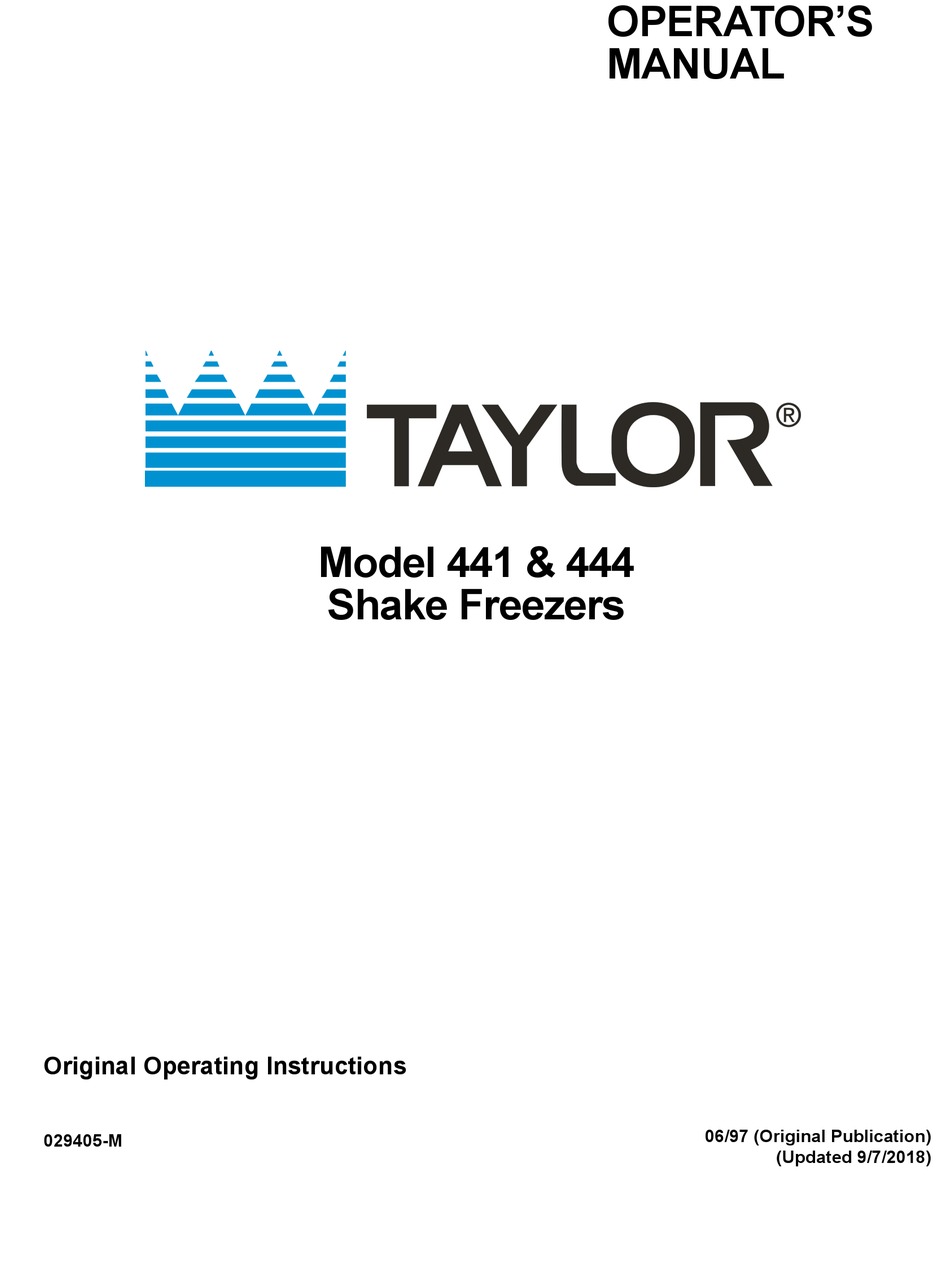

- Page 1 OPERATOR’S MANUAL Model 441 & 444 Shake Freezers Original Operating Instructions 06/97 (Original Publication) 029405-M (Updated 9/7/2018)
- Page 2 Phase____________________________________________ Maximum Fuse Size: ______________________________________________________ A Minimum Wire Ampacity: ___________________________________________________ A © 1997 Taylor Company 029405-M Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties.
-
Page 3: Table Of Contents
Models 441 and 444 Door Assembly ........ - Page 4 Table of Contents Section 7: Operator Checklist During Cleaning and Sanitizing ......... . 7-1 Troubleshooting Bacterial Count .
-
Page 5: Section 1: To The Installer
® of Taylor equipment. • Only authorized Taylor service personnel should perform installation, maintenance, and repairs WARNING! This unit must NOT be installed in on Taylor equipment. an area where a water jet or hose can be used. NEVER •... -
Page 6: Air-Cooled Units
This code contains GFI, installed by the authorized personnel to the provisions considered necessary for safety. To the Installer Models 441 & 444... -
Page 7: Checks
If the supply cord is damaged, it must be replaced by an Electrical connections are made directly to the terminal authorized Taylor service technician in order to avoid a block provided in the main control box located behind the hazard. -
Page 8: Refrigerant
Refrigerant water from being absorbed by the oil. CAUTION! In consideration of our environment, Taylor uses only earth-friendly HFC refrigerants. The HFC refrigerant used in this unit is R404A. This refrigerant is generally considered nontoxic and nonflammable, with an ozone depleting potential (ODP) of zero (0). -
Page 9: Section 2: To The Operator
Taylor reserves the right to deny warranty claims on units or parts if non-Taylor-approved parts or It should also be noted that Taylor does not warrant the incorrect refrigerant were installed in the unit, system refrigerant used in its equipment. For example, if the... - Page 10 TO THE OPERATOR Notes: To the Operator Models 441 & 444...
-
Page 11: Section 3: Safety
We, at Taylor Company, are concerned about the safety of the operator at all times when they are coming in contact with the unit and its parts. Taylor makes every IMPORTANT! An equipotential grounding lug is effort to design and manufacture built-in safety features provided with this unit. - Page 12 SAFETY • If the supply cord is damaged, it must be replaced by an authorized Taylor service technician in order to avoid a hazard. CAUTION! This machine must be placed on a Failure to follow these instructions may result in level surface.
-
Page 13: Model 441
Panel A.- Side Lower Left X44853 Louver- Side R & L 017471 Caster-Swivel- 5/8 Stem 4” Wheel 018794 Stud- Nose 022822 Panel-Side Upper Left 028700-SP1 Adaptor A.- Caster X18915 Panel A.- Side Lower Right X44855 Operator Parts Identification Models 441 & 444... -

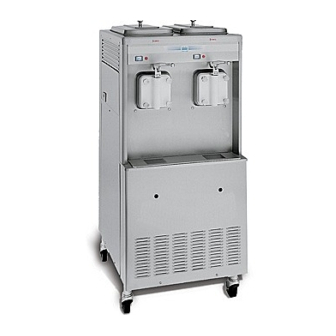

Page 14: Model 444
Panel- Upper Side Right 028701 Panel A.- Side Right X24397-SER Caster- 4” SWV 5/8 Stem W/Brake 034081 Panel A.- Side Left X24397-SER Panel- Service 024439 Adaptor A.- Caster X18915 Caster- Swivel- 5/8 Stem 4” Wheel 018794 Operator Parts Identification Models 441 & 444... -
Page 15: Models 441 And 444 Door Assembly
OPERATOR PARTS IDENTIFICATION Models 441 and 444 Door Assembly F R O N 30053_A Figure 4-3 Item Description Part No. Item Description Part No. Seal- Drive Shaft 032560 Valve A.- Draw X13624 - SP Shaft- Beater 0086031 O-Ring 1 - 1/16 OD X .139 W-STL 084545 Beater A. -
Page 16: Accessories
Description Part No. Pail- 10 QT. 013163 Kit A.- Tune Up (Model 441) X33351 Brush- Mix Pump Body 3 X 7 023316 Kit A.- Tune Up (Model 444) X36356 Brush- Double Ended 013072 Lubricant- Taylor 047518 Brush- Rear Bearing 013071... -
Page 17: Section 5: User Interface
Section 5 Indicator Light—MIX LOW Control Switch The Models 441 and 444 are equipped with a MIX LOW The center position is OFF. The right position is AUTO, light located on the front of the machine. When the light which activates the beater motor and the refrigeration begins to flash, it indicates that the mix hopper has a low system. -
Page 18: Thermistor Control
Allow the refrigeration system to cycle on and off temperature in the hopper to below 40°F (4.4°C). This two or three times before an accurate consistency can be ensures bacteria control. evaluated. User Interface Models 441 & 444... -
Page 19: Section 6: Operating Procedures
• 441: One 7 qt. (6.6 L) freezing cylinder • 444: Two 7 qt. (6.6 L) freezing cylinders We begin our instructions at the point where we enter the Figure 6-1 store in the morning and find the parts disassembled and laid out to air dry from the previous night’s cleaning. - Page 20 Replace any damaged parts. 7. Slide the two O-rings into the grooves on the draw valve and lubricate them with Taylor Lube. 11103 Figure 6-4 Note: To prevent costly damage, the hole in the scraper blade must fit securely over the pin.
- Page 21 12. Lay the mix feed tube in the bottom of the mix hopper. 13. Repeat steps 1 through 12 for the other side of the freezer on the Model 444. Figure 6-8 10. Insert the baffle rod through the beater in the freezing cylinder.
-
Page 22: Sanitizing
2. Pour the sanitizing solution into the hopper and allow it to flow into the freezing cylinder. 12029 Figure 6-14 5. Place an empty pail beneath the door spout and raise the draw arm. Draw off all the sanitizing solution. Figure 6-12 Operating Procedures Models 441 & 444... -
Page 23: Priming
7. Stand the mix feed tube in the corner of the mix hopper. 12050 Figure 6-18 Figure 6-16 Repeat steps 1 through 7 for the other side of the freezer on the Model 444. Operating Procedures Models 441 & 444... -
Page 24: Closing Procedure
Repeat these steps for the second freezing cylinder on the Model 444. FOLLOW YOUR LOCAL ELECTRICAL CODES. 30050_A Figure 6-20 Repeat Steps 1 through 5 for the other side of the freezer on the Model 444. Operating Procedures Models 441 & 444... -
Page 25: Rinsing
(examples: 2-1/2 gal. [9.5 L] of Kay-5® or 2 3. Repeat steps 1 and 2 for the second freezing gal. [7.6 L] of Stera-Sheen®). Use warm water and cylinder on the Model 444. follow the manufacturer’s specifications. 4. Remove the front drip tray and the splash shield. - Page 26 Take particular care to brush clean the draw valve core in the freezer door(s). Place all 6. Wipe clean all exterior surfaces of the freezer. the cleaned parts on a clean dry surface to air dry overnight. Operating Procedures Models 441 & 444...
-
Page 27: Section 7: Operator Checklist
This will water lines should be replaced only by an break the rerun cycle and reduce the possibility of authorized Taylor technician. high bacteria and coliform counts. Properly prepare the cleaning and sanitizing Operator Checklist Models 441 & 444... -
Page 28: Winter Storage
Failure to follow this procedure may cause severe and costly damage to the refrigeration system. Your local Taylor distributor can perform this service for you. Wrap detachable parts of the freezer such as the beater, blades, drive shaft, and freezer door. Place these parts in a protected, dry place. -
Page 29: Section 8: Troubleshooting Guide
Rounded corners of drive shaft, a. Call service technician to correct the in the gear box coupling. coupling, or both. cause and replace the necessary components. Do not lubricate the end of the drive shaft. Troubleshooting Guide Models 441 & 444... - Page 30 Handscrews are damaged. c. Replace the handscrews. d. Freezer door has enlarged holes. d. Replace the door. e. The beater assembly is rubbing the e. Call service technician to correct the back of the door. problem. Troubleshooting Guide Models 441 & 444...
- Page 31 Minimum if necessary Brush, 1” x 2” Inspect and replace Minimum if necessary Black Bristle Brush, 1” x 2” Inspect and replace Minimum if necessary Double-Ended Brush Inspect and replace Minimum if necessary Parts Replacement Schedule Models 441 & 444...
- Page 32 PARTS REPLACEMENT SCHEDULE Notes: Parts Replacement Schedule Models 441 & 444...
- Page 33 Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured part, at Taylor’s option, to replace the failed defective part at no charge for the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty for a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed below and on the reverse (if any) of this document.
- Page 34 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies..
- Page 35 Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no charge for the Part.
- Page 36 Taylor. 5. Replacement of wear items designated as Class 000 Parts in the Taylor Operator’s Manual, as well as any release sheets and clips for the Product’s upper platen assembly.
- Page 37 LEGAL REMEDIES The owner must notify Taylor in writing by certified or registered letter to the following address of any defect or complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
- Page 38 LIMITED WARRANTY ON PARTS Notes: 11-4 Limited Warranty on Parts Models 441 & 444...
