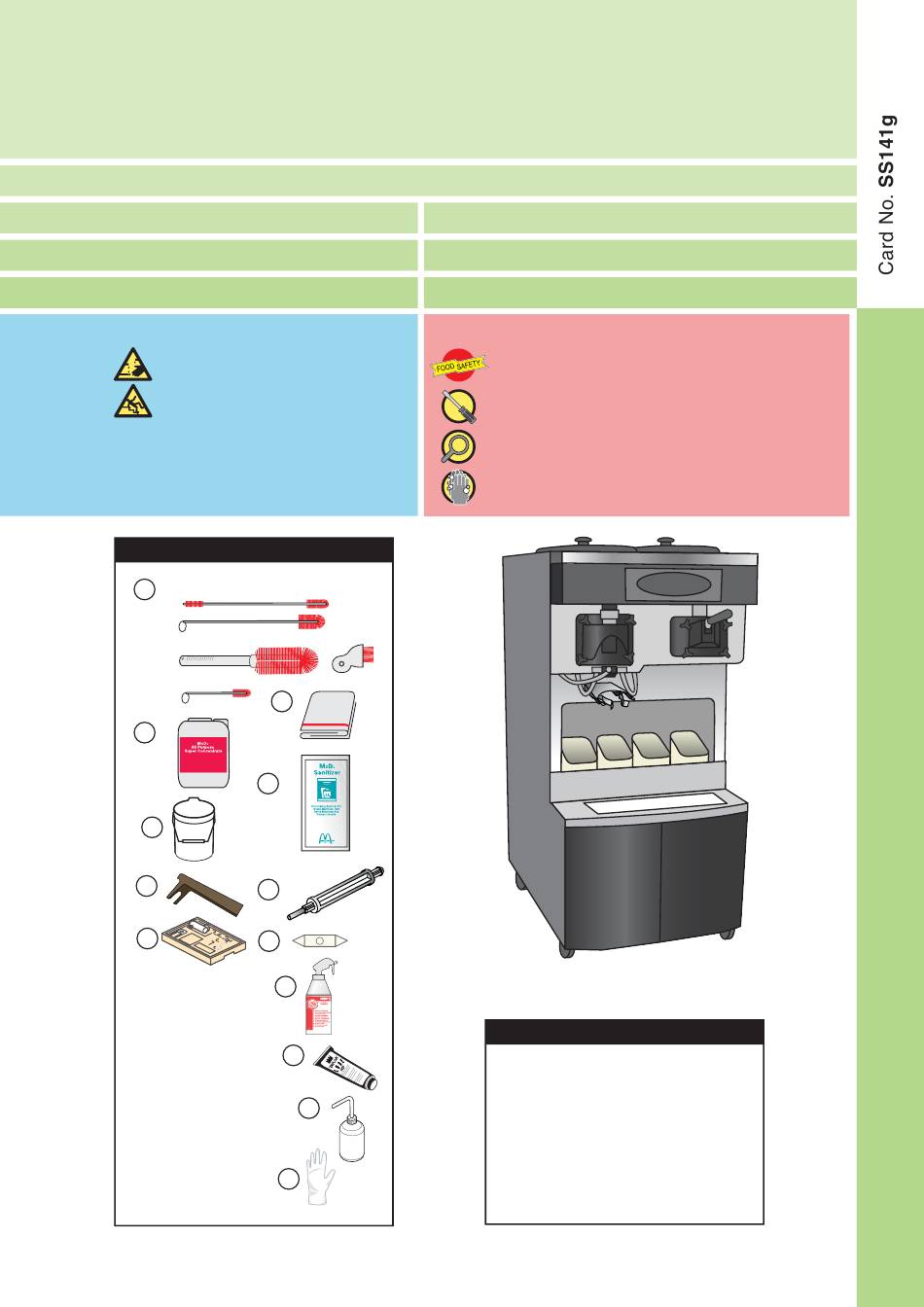

Shake Machines: Taylor HT C602
Re-assemble/Sanitise & Prime
Frequency
Models
Estimated Time to Complete
Health & Safety Hazards
Chemicals
Slippery Floors / Tripping
Equipment
1
3
2
5
4
6
7
8
9
10
1
Cleaning Brushes
2
APC Solution
3
Red Border Cloth
4
Shake Buckets
5
McD Sanitiser
6
Shaft Drive Tool
7
Seal Removal Tool
8
Shake Parts Trays
9
O-ring Removal Tool
10 KAY Surface Sanitiser
11 Taylor Lube
13
12 Plastic Wash Bottle
13 Clear Gloves
Weekly
Taylor HT C602
120 Minutes
Food Safety
11
12
Critical Control Point
Ensure nuts, bolts & screws are tight
Inspect equipment. Do not use if damaged
Wash & dry hands before performing task
NB
Prior to starting this procedure, the following
must be worn: Hat, Hair Net and Clean Apron.
Check the condition of all O-rings and parts for
wear and tear, nicks or damage and replace as
needed.
Always handle shake machine parts over a
surface and avoid dropping from a height.
Replace all O-rings quarterly.
