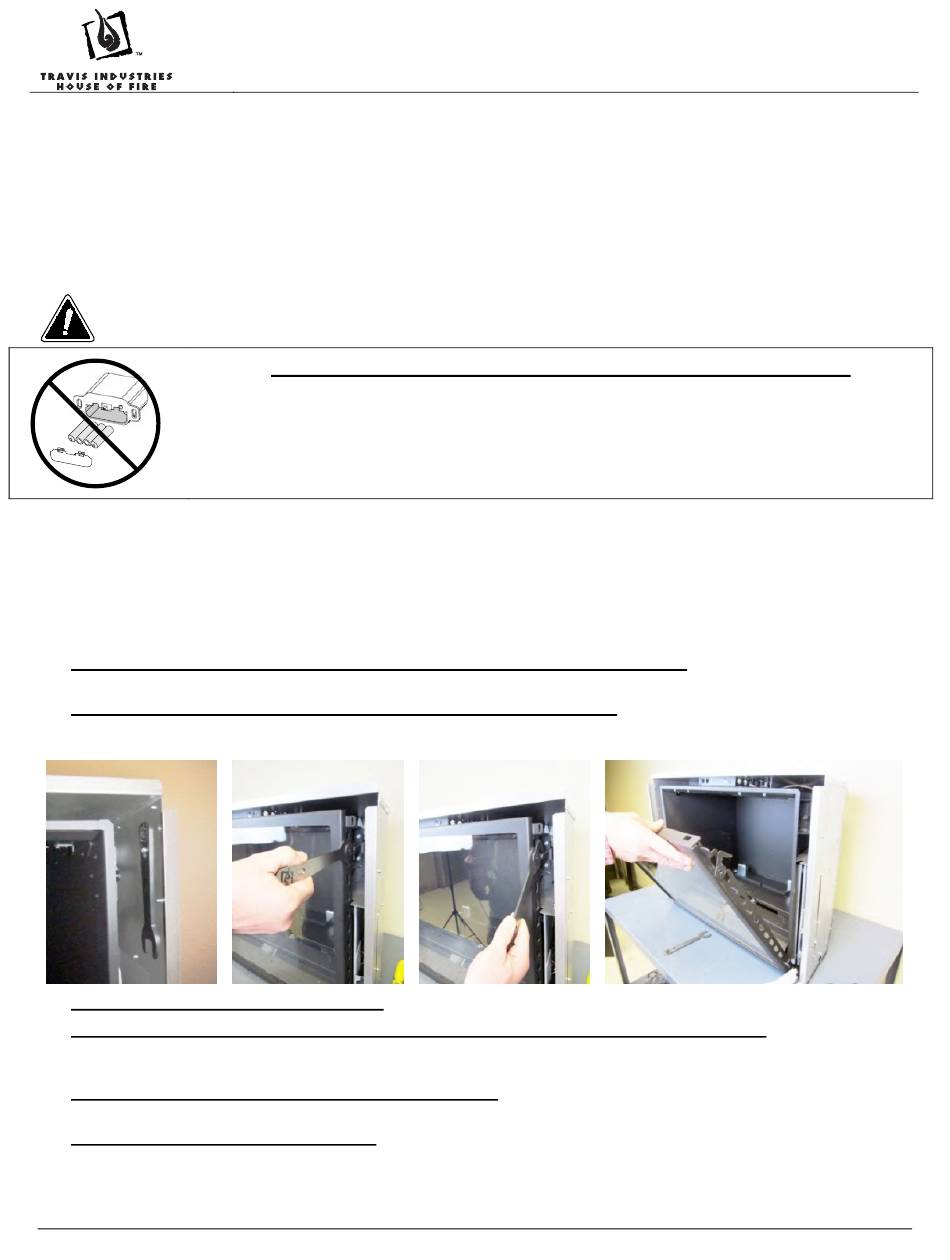

Travis Industries 616 DF Quick Start Manual

The 616 DF has several new features and characteristics that require special attention during installation and set-up. This unit
uses the new GreenSmart 2 system. Refer to the owner's manual for full details.
GreenSmart™ 2
This heater uses the GreenSmart™ 2 components from SIT. These components function in a near identical fashion to the
previous GreenSmart™ 1 components. The primary differences are:
• The accent light now has dimming capability built into the remote.
• The pilot may be switched from intermittent (IPI) to standing pilot from the remote.

Remote Control / Pilot Warnings

Installing batteries in the battery holder or connecting the appliance to power may automatically initiate the CPI
pilot mode, resulting in a lit pilot flame. Do not place combustibles in the firebox.

This Insert Uses a Unique Remote (no comfort control)

This insert uses a single-burner configuration, unlike our other inserts. The remote has been re-programmed to remove the
comfort control feature.

If using LP (Propane)

A conversion kit is required if using propane with this heater (sku 94400999 – GSR Stepper Motor Kit).

Additional Items

•
Remove and Discard the Shipping Brackets (and screws) on Each Side of the Insert
The shipping brackets protect the insert during shipping . See surround panel instructions for details.
•
Glass Tool is Attached to the Insert, Inside the Right Convection Chamber
This insert uses a glass tool to remove the glass frame. It is shipped inside the right convection chamber, attached with a
screw. See the photos below for glass frame removal. See manual for details.
•
This Insert Requires a ½" Hearth 12" Deep See installation manual for details.
•
If Using Tall Vent (Over 25') On Natural Gas You Must Open the Diffuser Before Attaching Vent
The diffuser must be adjusted before attaching the vent (it is attached to the vent connector and is concealed once the vent is
installed). See owner's manual for details.
•
Vent Kit "G" (sku 96200331) May Be Used With This Insert
The co-linear 3" and 4" vent kit works with this insert. See manual for details.
•
Power Cord Exits Behind Surround Panel
The power cord ships attached to the side of the insert. It may be re-routed to the front (exits between face and surround
panel) by disconnecting the strain relief and molex connector.
Page 1 of 2
616 Diamond-Fyre (DF) Insert - Cheat Sheet
KEEP BATTERIES AND COVER INSTALLED AT ALL TIMES
The remote control system requires the batteries and battery cover to remain in place at all times. Once
the batteries or cover are removed, the system may re-start in standing pilot mode. If this occurs when
the heater is in Remote Mode, you will not be able to turn the heater off manually from the battery box.
If you need to replace dead batteries, make sure to turn the appliance off before removing the batteries.
NOTE: If the batteries go dead, the system will operate normally as long as household power (120v AC)
is present.
17601781 Printed 5/10/13
