AWK-6232 User's Manual
First Edition, April 2012
www.moxa.com/product
© 2012 Moxa Inc. All rights reserved.
www.ipc2u.ru
www.moxa.pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWK-6232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies AWK-6232

Summary of Contents for Moxa Technologies AWK-6232

  • Page 1 AWK-6232 User’s Manual First Edition, April 2012 www.moxa.com/product © 2012 Moxa Inc. All rights reserved. www.ipc2u.ru www.moxa.pro...
  • Page 2 AWK-6232 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2012 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................1-1 Overview ............................1-2 Package Checklist ..........................1-2 Product Features ..........................1-2 Product Specifications ......................... 1-3 Functional Design ..........................1-5 LED Indicators ..........................1-5 Beeper ............................1-6 Reset Button ..........................1-6 Wiring the Digital Inputs and Relay Contact (Digital Output) ............. 1-7 Antenna .............................
  • Page 4 RS-232 Console Configuration (115200, None, 8, 1, VT100) ..............5-2 Configuration by Telnet and SSH Consoles ..................... 5-4 Configuration by Web Browser with HTTPS/SSL ..................5-4 Disabling Telnet and Browser Access ..................... 5-6 References ............................6-1 Beacon .............................. 6-2 DTIM ..............................6-2 Fragment ............................

  • Page 5: Introduction

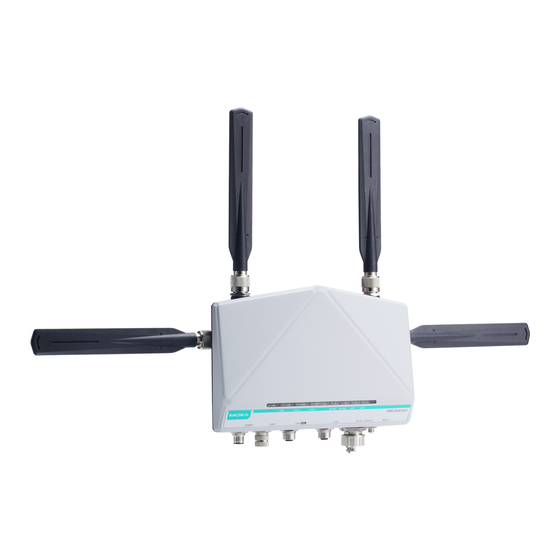

    Introduction Moxa AirWorks AWK-6232 with dual-RF wireless capability allows wireless users to access network resources more reliably. The AWK-6232 is rated to operate at temperatures ranging from -40 to 75°C and is rugged enough for any harsh industrial environment. The following topics are covered in this chapter: ...

  • Page 6: Overview

    AWK-6232 can incorporate Ethernet redundancy using RSTP, and power redundancy using dual DC power inputs and PoE+. In addition, the AWK-6232 is housed in an IP68 metal casing with M12 connectors for total protection against dust, water, vibration, and other environmental effects.

  • Page 7: Product Specifications

    AWK-6232 Introduction Product Specifications WLAN Interface Standards: IEEE 802.11a/b/g/n for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX IEEE 802.3ab for 1000BaseT IEEE 802.3at for Power-over-Ethernet Plus IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP...
  • Page 8 AWK-6232 Introduction TX Transmit Power MIMO: 802.11a/n (20/40 MHz): MCS15 20 MHz: Typ. 13 dBm (± 1.5 dBm) MCS15 40 MHz: Typ. 12 dBm (± 1.5 dBm) 802.11g/n (20 MHz): MCS15 20 MHz: Typ. 14 dBm (± 1.5 dBm) RX Sensitivity: 802.11b:...

  • Page 9: Functional Design

    Details: See www.moxa.com/warranty ATTENTION The AWK-6232 is NOT a portable mobile device and should be located at least 20cm away from the human body. The AWK-6232 is NOT designed for the general public. To safely deploy the AWK-6232 within a wireless network, a well-trained technician is required for installation.

  • Page 10: Beeper

    Reset Button The RESET button is located on the bottom panel of the AWK-6232. You can reboot the AWK-6232 or reset it to factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip.

  • Page 11: Wiring The Digital Inputs And Relay Contact (Digital Output)

    Wiring the Digital Inputs and Relay Contact (Digital Output) The AWK-6232 has two sets of digital input—DI1 and DI2. Each DI comprises two contacts of the 8-pin M12 connector on the AWK-6232’s bottom panel. These two digital inputs can be connected to digital-output-enabled sensors for on-site status monitoring.

  • Page 12: Getting Started

    Getting Started This chapter explains how to install Moxa’s AirWorks AWK-6232 for the first time, to quickly set up your wireless network and test whether the connection is running well. With this function guide, you will gain access to the functions you need easily.

  • Page 13: First-Time Installation And Configuration

    First-time Installation and Configuration Before installing the AWK-6232, make sure that all items in the Package Checklist are in the box. In addition, you will need access to a notebook computer or PC equipped with an Ethernet port. The AWK-6232 has a default IP address that you must use when connecting to the device for the first time.

  • Page 14: Communications Testing

    Two testing methods are explained in the following sections. Use the first method if you are using only one AWK-6232 device, and use the second method if you are using two or more AWK-6232s. Testing Method for one AWK-6232 If you are only using one AWK-6232, you will need a second notebook computer equipped with a WLAN card.
  • Page 15 If you have two or more AWK-6232s, you will need a second notebook computer (B) equipped with an Ethernet port. Use the default settings for the first AWK-6232 connected to notebook A and change the second or third AWK-6232 connected to notebook B to Client mode. You may then configure the AWK-6232s using the notebooks as follows.

  • Page 16: Function Guide

    * These functions are all optional. Real-time status information to monitor wired/wireless network performance, advanced services, and device management functions Functions to maintain the AWK-6232 and analyze the network On-demand functions to support the operations of web-based console management www.ipc2u.ru...

  • Page 17: Web Console Configuration

    Web Console Configuration In this chapter, we will explain each web management page of the web-based console configuration. Moxa’s easy-to-use management functions will help you set up your AWK-6232, as well as establish and maintain your wireless network easily. The following topics are covered in this chapter: ...

  • Page 18: Configuration By Web Browser

    AWK-6232, you must make sure that the PC host and AWK-6232 are on the same logical subnet. Similarly, if the AWK-6232 is configured for other VLAN settings, you must make sure your PC host is on the management VLAN.

  • Page 19: Overview

    “Function Guiding Map” section of Chapter 2. NOTE The model name of the AWK-6232 is shown as AWK-6232-XX where XX indicates the country code. The country code represents the AWK-6232 version and which bandwidth it uses. We use AWK-6232-US as an example in the following figures.

  • Page 20: Basic Settings

    None Device description Setting Description Factory Default Max. 31 Characters Use this space to record more detailed description of AWK-6232 None Device name Setting Description Factory Default Max. 31 Characters To provide information about whom to contact in order to None resolve problems.

  • Page 21: Time Settings

    Time information. Functions such as Auto warning can add real-time information to the message. Current local time shows the AWK-6232’s system time when you open this web page. You can click on the Set Time button to activate the update after setting up the date and time parameters. An “(Updated)” string will appear to indicate that the change is complete.

  • Page 22: Wireless Settings

    Web Console Configuration NOTE The AWK-6232 has a real time clock (RTC). Users are strongly recommended to update the Local time for the AWK-6232 after initial setup or long-term shutdown, especially when the network does not have an Internet connection for accessing the NTP server or there is no NTP server on the LAN.
  • Page 23 APs at both ends of the WDS link must be configured manually with each other’s MAC addresses. The performance of a single RF bridge will be poor if more nodes are added. When configured as a bridge, the AWK-6232’s uses two radio modules to give users a cascade link, bridging two networks without losing throughput.

  • Page 24: Basic Wireless Settings

    AWK-6232 Web Console Configuration AP-Client AP-Client mode provides a more flexible topology, allowing the user to configure the 2 radio modules into either a network base station (access point) or client station (client). Matching Table for AP-Client’s WLANs: WLAN 1...
  • Page 25 Channel (for AP mode only) Setting Description Factory Default Available channels vary The AWK-6232 plays the role of wireless AP. 6 (in B/G/N Mixed with RF type mode) Channel Width (only for 11N RF types in the 5GHz band) Setting...

  • Page 26: Wlan Security Settings

    When you switch to WLAN Security Settings overview page, click on Edit to modify WLAN security settings. The AWK-6232 provides four standardized wireless security modes: Open, WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access) and WPA2. Several types of security models are available in AWK-6232 by selecting Security mode and WPA type: •...
  • Page 27 When WEP is enabled as a security mode, the length of a key (so-called WEP seed) can be specified as 64/128 bits, which is actually a 40/104-bit secret key with a 24-bit initialization vector. The AWK-6232 provides 4 entities of WEP key settings that can be selected to use with Key index. The selected key setting specifies the key to be used as a send-key for encrypting traffic from the AP side to the wireless client side.
  • Page 28 Even though AES encryption is only included in the WPA2 standard, it is widely available in the WPA security mode of some wireless APs and clients as well. The AWK-6232 also supports AES algorithms in WPA and WPA2 for better compatibility.
  • Page 29 AWK-6232 Web Console Configuration WPA/WPA2-Enterprise (for AP or Master mode) By selecting WPA type as Enterprise, you can use EAP (Extensible Authentication Protocol), a framework authentication protocol used by 802.1X to provide network authentication. In these Enterprise-level security modes, a back-end RADIUS (Remote Authentication Dial-In User Service) server is needed if IEEE 802.1X functionality is enabled in WPA /WPA2.
  • Page 30 3600 (seconds) (1 minute to 1 day) WPA/WPA2-Enterprise (for Client or Slave mode) In a client role, the AWK-6232 can support three EAP methods (or EAP protocols): EAP-TLS, EAP-TTLS, and EAP-PEAP, corresponding to WPA/WPA-Enterprise settings on the AP side. Encryption method...
  • Page 31 Certificate reduction makes TTLS and PEAP much more popular than EAP-TLS. The AWK-6232 provides some non-cryptographic EAP methods including PAP, CHAP, MS-CHAP, and MS-CHAP-V2. These EAP methods are not recommended for direct use on wireless networks. However, they may be useful as inner authentication methods with TTLS or PEAP.
  • Page 32 AWK-6232 Web Console Configuration TTL Inner Authentication Setting Description Factory Default Password Authentication Protocol is used MS-CHAP-V2 CHAP Challenge Handshake Authentication Protocol is used MS-CHAP Microsoft CHAP is used MS-CHAP-V2 Microsoft CHAP version 2 is used Anonymous Setting Description Factory Default Max.

  • Page 33: Advanced Wireless Settings

    There are a few differences in the inner authentication procedures for TTLS and PEAP. TTLS uses the encrypted channel to exchange attribute-value pairs (AVPs), while PEAP uses the encrypted channel to start a second EAP exchange inside of the tunnel. The AWK-6232 provides MS-CHAP-V2 merely as an EAP method for inner authentication.
  • Page 34 AWK-6232 Web Console Configuration Transmission Rate Setting Description Factory Default Auto The AWK-6232 senses and adjusts the data rate automatically Auto Available rates Users can manually select a target transmission data rate Multicast Rate Setting Description Factory Default Available rates You can set a fixed multicast rate for the transmission of broadcast and multicast packets on a per-radio basis.
  • Page 35 AWK-6232 Web Console Configuration DTIM Interval (for AP/Master mode only) Setting Description Factory Default Data Beacon Rate Indicates how often the AWK-6232 sends out a Delivery Traffic (1 to 15) Indication Message Fragmentation threshold Setting Description Factory Default Fragment Length...

  • Page 36: Wlan Certification Settings (For Eap-Tls In Client Or Slave Mode Only)

    Current Certificate. If it fails, you may need to return to step 1 to set the password correctly and then import the certificate file again. NOTE The WLAN certificate will remain after the AWK-6232 reboots. Even though it is expired, it can still be seen on Current Certificate. 3-20 www.ipc2u.ru...

  • Page 37: Advanced Networking Features

    Web Console Configuration Advanced Networking Features The AWK-6232 has several advanced features that will improve your wireless network functionality. A built-in DHCP server helps you deploy wireless clients efficiently. Packet filters provide security mechanisms, such as firewalls, in different network layers. Moreover, the AWK-6232 can be configured to support the STP/RSTP protocol, to increase overall network reliability, while SNMP support can simplify network administration.

  • Page 38: Configuring Virtual Lan

    AWK-6232 Web Console Configuration Finally, the switch would be configured to route packets from the marketing department to the appropriate corporate resources such as printers and servers. Packets from the human resource department could be restricted to a gateway that allowed access to only the Internet.

  • Page 39: Dhcp Server (Only Available In Ap Mode)

    You can also assign a static IP address to a specific client by entering its MAC address. The AWK-6232 provides a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for each entity to activate the setting.

  • Page 40: Packet Filters

    MAC Filter The AWK-6232’s MAC filter is a policy-based filter that can allow or filter out IP-based packets with specified MAC addresses. The AWK-6232 provides 8 entities for setting MAC addresses in your filtering policy.
  • Page 41 IP Protocol Filter The AWK-6232’s IP protocol filter is a policy-based filter that can allow or filter out IP-based packets with specified IP protocol and source/destination IP addresses. The AWK-6232 provides 8 entities for setting IP protocol and source/destination IP addresses in your filtering policy.

  • Page 42: Rstp Settings (Only Available In Master And Slave Mode)

    Web Console Configuration TCP/UDP Port Filter The AWK-6232’s TCP/UDP port filter is a policy-based filter that can allow or filter out TCP/UDP-based packets with a specified source or destination port. The AWK-6232 provides 8 entities for setting the range of source/destination ports of a specific protocol. In addition to selecting TCP or UDP protocol, you can set either the source port, destination port, or both.
  • Page 43 AWK-6232 Web Console Configuration RSTP status This field will appear only when STP/RSTP is enabled. It indicates whether or not this AWK-6232 is the root of the spanning tree (the root is determined automatically). Bridge priority Setting Description Factory Default...

  • Page 44: Snmp Agent

    MD5 or SHA, is the most secure protocol. You can also enable data encryption to enhance data security. The AWK-6232’s MIB can be found in the software CD and supports reading the attributes via SNMP. (Only get method is supported.) SNMP security modes and security levels supported by the AWK-6232 are shown in the following table.
  • Page 45 AWK-6232 Web Console Configuration The following parameters can be configured on the SNMP Agent page. A more detailed explanation of each parameter is given below the following figure. Enable Setting Description Factory Default Enable Enables SNMP Agent Disable Disable Disables SNMP Agent...

  • Page 46: Storm Protection

    A data encryption key is the minimum requirement for data encryption (maximum of 63 characters) Private MIB Information Device Object ID Also know as OID. This is the AWK-6232’s enterprise value. It is fixed. Storm Protection In general, one host should not be...

  • Page 47: System Log

    In addition to logging these events, the AWK-6232 supports different approaches to warn engineers automatically, such as SNMP trap, e-mail, and relay output. It also supports two digital inputs to integrate sensors into your system to automate alarms by email and relay output.

  • Page 48: Syslog

    AWK-6232 Web Console Configuration Syslog This function provides event logs for the background process, the Syslog server. The function supports up to three configurable Syslog servers and Syslog server UDP port numbers. When an event occurs, the event will be sent as a Syslog UDP packet to the specified Syslog servers.

  • Page 49: E-Mail

    E-mail Server Settings You can set up to 4 e-mail addresses to receive alarm emails from the AWK-6232. The following parameters can be configured on the E-mail Server Settings page. In addition, a Send Test Mail button can be used to test whether the Mail server and e-mail addresses work well.

  • Page 50: Relay Output

    None Relay Output The AWK-6232 has one relay output, which consists of 2 terminal block contacts on the AWK-6232’s top panel. These relay contacts are used to indicate user-configured events and system failure. The two wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the relay circuit will remain closed.
  • Page 51 AWK-6232 Web Console Configuration Trap Event Types SNMP Trap Receiver Settings SNMP traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers through the web page.

  • Page 52: Status

    (for AP or master modes only) The Associated Client List shows all the clients that are currently associated with a particular AWK-6232. You can click Select all to select all the content in the list for further editing. You can click Refresh to refresh the list.

  • Page 53: Dhcp Client List (For Ap Mode Only)

    AWK-6232 Web Console Configuration DHCP Client List (for AP mode only) When you enable the DHCP server, the DHCP Client List shows all the clients that require and have successfully received IP assignments. You can click the button to refresh Refresh the list.

  • Page 54: Relay Status

    The status of power inputs and digital inputs is shown on this web page. The status will refresh every 5 seconds if the Auto refresh box is checked. Please note: there is currently a typo in the page labeling; “Din” should read “DI”. Maintenance Maintenance functions provide the administrator with tools to manage the AWK-6232 and wired/wireless networks. 3-38 www.ipc2u.ru...

  • Page 55: Console Settings

    Moxa’s download center. Before running a firmware upgrade, make sure the AWK-6232 is off-line. Click the Browse button to specify the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. After the progress bar reaches 100%, the AWK-6232 will reboot itself.

  • Page 56: Config Import Export

    The configuration file is a text file and you can view and edit it with a general text-editing tool. Load Factory Defaults Use this function to reset the AWK-6232 and roll all settings back to the factory default values. You can also reset the hardware by pressing the reset button on the top panel of the AWK-6232.

  • Page 57: Password

    The following figure shows how the AWK-6232 stores the setting changes into volatile and non-volatile memory. All data stored in volatile memory will disappear when the AWK-6232 is shutdown or rebooted unless they are saved. Because the AWK-6232 starts up and initializes with the settings stored in flash memory, all new changes must be saved to flash memory before restarting the AWK-6232.

  • Page 58: Restart

    If you made changes recently but did not save, you will be given two options. Clicking the Restart button here will reboot the AWK-6232 directly, and all setting changes will be ignored. Clicking the Save and Restart button will apply all setting changes and then reboot the AWK-6232.

  • Page 59: Logout

    AWK-6232 Web Console Configuration Logout Logout helps users disconnect the current HTTP or HTTPS session and go to the Login page. For security reasons, we recommend you logout before quitting the console manager. 3-43 www.ipc2u.ru www.moxa.pro...

  • Page 60: Software Installation/Configuration

    Software Installation/Configuration The following topics are covered in this chapter:  Overview  AWK Search Utility  Installing AWK Search Utility  Configuring the AWK Search Utility www.ipc2u.ru www.moxa.pro...

  • Page 61: Overview

    Software Installation/Configuration Overview The Documentation & Software CD included with your AWK-6232 is designed to make the installation and configuration procedure easy and straightforward. This auto-run CD includes AWK Search Utility (to broadcast search for all AWK’s accessible over the network), the AWK-6232 User’s Manual, and Quick Installation Guide.
  • Page 62 AWK-6232 Software Installation/Configuration Click Next to create the program’s shortcut files to the default directory, or click Browse to select an alternate location. Click Next to select additional tasks. Click Next to proceed with the installation. The installer then displays a summary of the installation options.

  • Page 63: Configuring The Awk Search Utility

    Configuring the AWK Search Utility The Broadcast Search function is used to locate all AWK-6232 APs that are connected to the same LAN as your computer. After locating an AWK-6232, you will be able to change its IP address. Since the Broadcast Search function searches by TCP packet and not IP address, it doesn’t matter if the AWK-6232 is configured as an AP...
  • Page 64 AWK-6232 Software Installation/Configuration Start the AWK Search Utility program. When the Login page appears, select the “Search AWK only” option to search for AWKs and to view each AWK’s configuration. Select the “AWK management” option to assign IPs, upgrade firmware, and locate devices.
  • Page 65 AWK-6232 Software Installation/Configuration When the search is complete, all AWKs that were located will be displayed in the AWK Search Utility window. Click Locate to cause the selected device to beep. Make sure your AWK is unlocked before using the search utility’s icons setting. The AWK will unlock automatically if the password is set to the default.
  • Page 66 AWK-6232 Software Installation/Configuration To modify the configuration of the highlighted AWK, click on the Web icon to open the web console. This will take you to the web console, where you can make all configuration changes. Refer to Chapter 3, “Using the Web Console,”...
  • Page 67 AWK-6232 Software Installation/Configuration Click Assign IP to change the IP setting. The three advanced options—Search, Connection, and Miscellaneous—are explained below: Search Retry count (default=5): Indicates how many times the search will be retried automatically. Retry interval (ms): The time lapsed between retries.
  • Page 68 AWK-6232 Software Installation/Configuration Misc. Search on start: Checkmark this box if you would like the search function to start searching for devices after you log in to the AWK search Utility. www.ipc2u.ru www.moxa.pro...

  • Page 69: Other Console Configurations

    Other Console Configurations This chapter explains how to access the AWK-6232 for the first time. In addition to HTTP access, there are four ways to access AWK-6232: serial console, Telnet console, SSH console, and HTTPS console. The serial console connection method, which requires using a short serial cable to connect the AWK-6232 to a PC’s COM port, can be used if you do not know the AWK-6232’s IP address.

  • Page 70: Rs-232 Console Configuration (115200, None, 8, 1, Vt100)

    The serial console connection method, which requires using a short serial cable to connect the AWK-6232 to a PC’s COM port, can be used if you do not know the AWK-6232’s IP address. It is also convenient to use serial console configurations when you cannot access the AWK-6232 over Ethernet LAN, such as in the case of LAN cable disconnections or broadcast storming over the LAN.
  • Page 71 The Console login screen will appear. Log in to the RS-232 console with the login name (default: admin) and password (default: root, if no new password is set). The AWK-6232’s device information and Main Menu will be displayed. Please follow the description on screen and select the administration option you wish to perform.

  • Page 72: Configuration By Telnet And Ssh Consoles

    AWK-6232’s functions over the network from a PC host that is connected to the same LAN as the AWK-6232, you need to make sure that the PC host and the AWK-6232 are on the same logical subnet. To do this, check your PC host’s IP address and subnet mask.njio ho...
  • Page 73 Select Yes to accept the certificate issued by Moxa IW and then enter the AWK-6232’s web browser interface secured via HTTPS/SSL. (You can see the protocol in URL is https.) Then you can use the menu tree on the left side of the window to open the function pages to access each of AWK-6232’s functions.

  • Page 74: Disabling Telnet And Browser Access

    Other Console Configurations Disabling Telnet and Browser Access If you are connecting the AWK-6232 to a public network but do not intend to use its management functions over the network, then we suggest disabling both Telnet Console and Web Configuration. Please run Maintenance ...

  • Page 75: References

    References This chapter provides more detailed information about wireless-related technologies. The information in this chapter can help you administer your AWK-6232s and plan your industrial wireless network better. The following topics are covered in this chapter:  Beacon  DTIM ...

  • Page 76: Beacon

     STP (802.1D) and RSTP (802.1w) can operate on the LAN ports and WLAN ports (AP and WDS1-WDS8) of the same AWK-6232. This feature is particularly helpful when the AWK-6232 connects to older equipment, such as legacy switches. www.ipc2u.ru www.moxa.pro...

  • Page 77: Differences Between Rstp And Stp

    AWK-6232 References Differences between RSTP and STP RSTP is similar to STP, but includes additional information in the BPDUs that allow each bridge to confirm that it has taken action to prevent loops from forming when it decides to enable a link to a neighboring bridge.

  • Page 78: Supporting Information

    Supporting Information This chapter presents additional information about this manual and product. You can also learn how to contact Moxa for technical support. The following topics are covered in this chapter:  About This User’s Manual  DoC (Declaration of Conformity) ...

  • Page 79: About This User's Manual

    AWK-6232 Supporting Information About This User’s Manual This manual is mainly designed for, but no limited to, the following hardware and firmware for the AWK-6232: • Hardware Rev: 1.0 • Firmware Ver: You are strongly recommended to visit Moxa’s website (http://www.moxa.com) and find the latest product datasheet, firmware, QIG (Quick Installation Guide), UM (User’s Manual) and related information.

  • Page 80: R&Tte Compliance Statement

    It may result from some wrong operation or uncontrollable issues, such as an unexpected shutdown during firmware update. The AWK-6232 is designed to help administrators recover such damage and resume system operation rapidly. You can refer to the following instructions to recover the firmware: www.ipc2u.ru...
  • Page 81 Press Ctrl-C and the following message will appear. Enter 2 to change the network setting. Specify where the AWK-6232’s firmware file on the TFTP server and press y to write the settings into flash memory.

  • Page 82: Technical Support Contact Information

    AWK-6232 Supporting Information Select 0 in the sub-menu to load the firmware image via LAN, and then enter the file name of the firmware to start the firmware recovery. Technical Support Contact Information Customer satisfaction is our number one concern, and to ensure that customers receive the full benefit of our products, Moxa Internet Services has been set up to provide technical support, driver updates, product information, certification status, installation guide and user’s manual updates.
