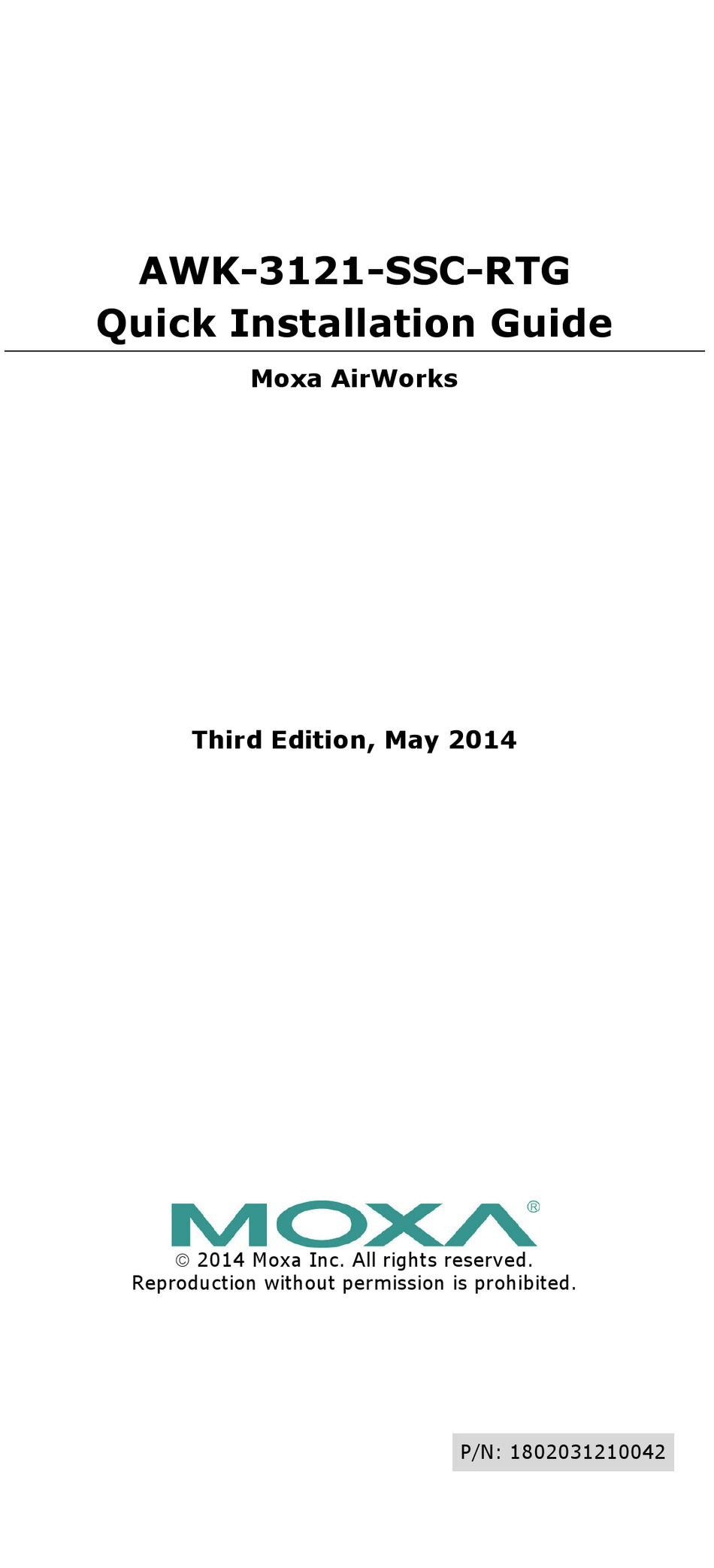

Page 1: Quick Installation Guide
AWK-3121-SSC-RTG Quick Installation Guide Moxa AirWorks Third Edition, May 2014 2014 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802031210042... -
Page 2: Package Checklist
AWK-3121-SSC-RTG a convenient yet reliable solution for any industrial wireless application. Package Checklist Moxa’s AWK-3121-SSC-RTG is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. - Page 3 Step 3: Set up the computer’s IP address Set an IP address on the same subnet as the AWK-3121-SSC-RTG. Since the AWK-3121-SSC-RTG’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0, you should set the IP address of the computer to 192.168.127.xxx and subnet mask to 255.255.255.0.
- Page 4 Panel Layout of the AWK-3121-SSC-RTG 1. Grounding screw 2. Terminal block for PWR1, PWR2, relay, DI1, and DI2 3. Reset button 4. Heat dissipation orifices 5. System LEDs: PWR1, PWR2, FAULT, and STATE LEDs 6. LEDs for signal strength 7. WLAN LEDs: CLIENT BRIDGE (no function), and WLAN LEDs 8.
-
Page 5: Mounting Dimensions
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should be fixed to the back panel of the AWK-3121-SSC-RTG when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the AWK-3121-SSC-RTG, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 6: Wall Mounting (Optional)
STEP 2: Mounting the AWK-3121-SSC-RTG to a wall requires 4 screws. Use the AWK-3121-SSC-RTG device, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts... -
Page 7: Wiring Requirements
Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-3121-SSC-RTG. WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size. -
Page 8: Wiring The Redundant Power Inputs
Wiring the Redundant Power Inputs The top two pairs of contacts of the 10-contact terminal block connector on the AWK-3121-SSC-RTG’s top panel are used for the AWK-3121-SSC-RTG’s two DC inputs. Top and front views of the terminal block connector is shown here. STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals. -
Page 9: Wiring The Relay Contact
Cable Holder Installation (Optional) You can attach the cable holder to the bottom of the AWK-3121-SSC-RTG. This helps to keep cabling neat and avoid accidents that result from untidy cables. -
Page 10: Communication Connections
The AWK-3121-SSC-RTG has one RS-232 (8-pin RJ45) console port located on the front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-3121-SSC-RTG’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-3121-SSC-RTG for console configuration. -
Page 11: Led Indicators
EN 50155 standard. LED Indicators The front panel of the Moxa AWK-3121-SSC-RTG contains several LED indicators. The function of each LED is described in the table below. Color... -
Page 12: Specifications
Specifications Standards: IEEE 802.11a/b/g for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3u for 100BaseFX Spread Spectrum and Modulation (typical): • DSSS with DBPSK, DQPSK, CCK • OFDM with BPSK, QPSK, 16QAM, 64QAM • 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps •... -
Page 13: Environmental Limits
Interface Default Antennas: 2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male) Connector for External Antennas: AWK-3121-SSC-RTG: RP-SMA (female) Fiber Ports: 1, 100BaseFX port (SC connector) Console Port: RS-232 (RJ45-type) LED Indicators: PWR1, PWR2, FAULT, STATE, signal strength, CLIENT MODE, Bridge (no function), WLAN, 100M (fiber port) -
Page 14: Warranty
Warranty Period: 5 years Details: See www.moxa.com/support/warranty.aspx ATTENTION The AWK-3121-SSC-RTG is NOT a portable mobile device and should be located at least 20 cm away from the human body. The AWK-3121-SSC-RTG is NOT designed for the general public. To deploy AWK-3121-SSC-RTGs and establish a wireless network safely, a well-trained technician is required for installation.
