Page 1: Quick Installation Guide

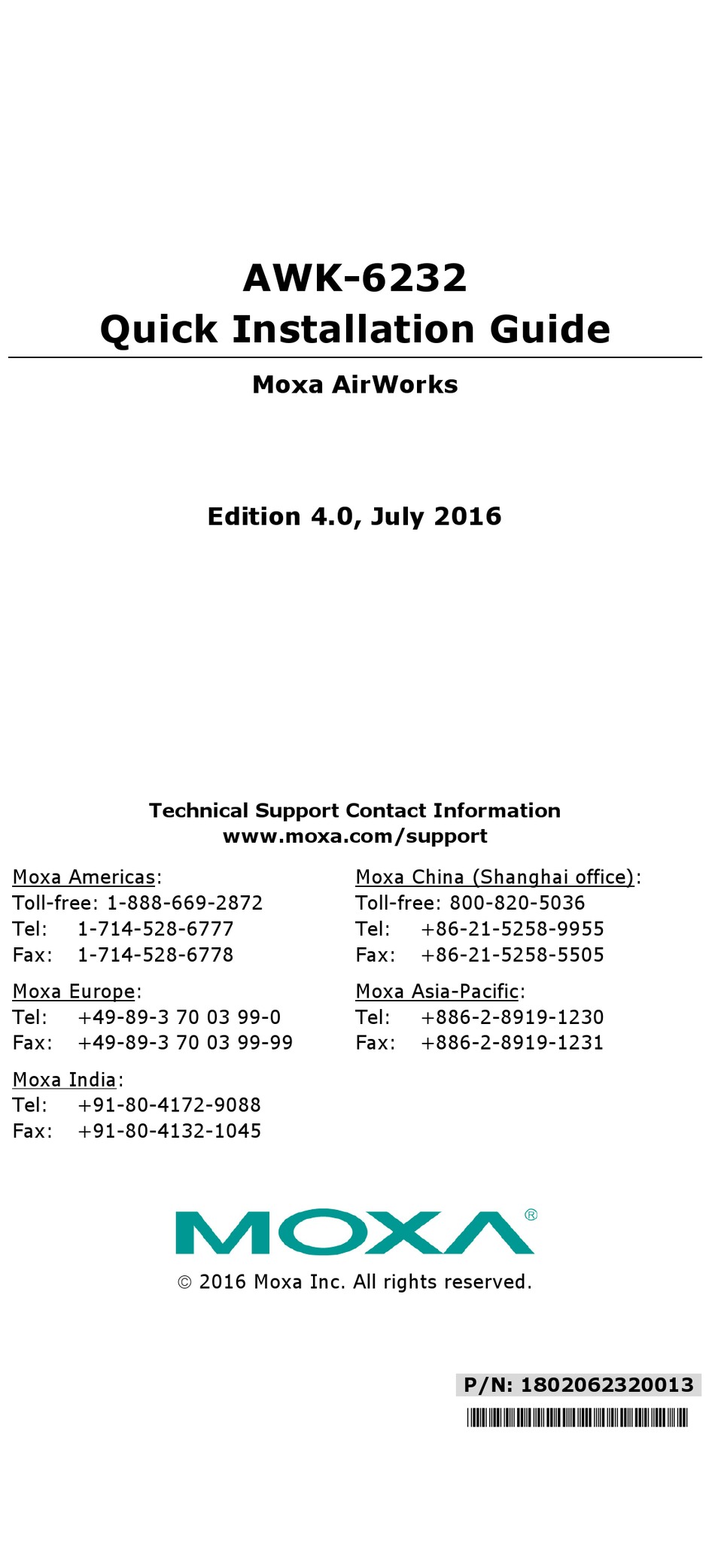

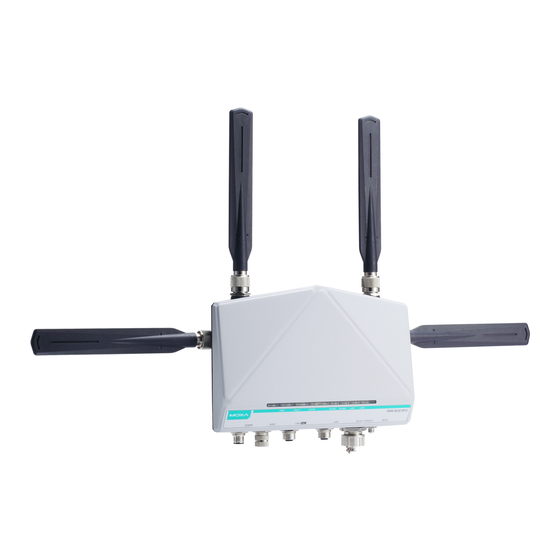

AWK-6232 Quick Installation Guide Moxa AirWorks Edition 4.0, July 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0... -
Page 2: Notes For The Reader
NOTE Highlights important information related to this product. Package Checklist Moxa’s AWK-6232 is shipped with the following items. If any of these items is missing or damaged, contact your customer service representative for assistance. -
Page 3: Installation
Installation Before installing the AWK-6232, make sure that all items in the Package Checklist are in the box. In addition, you will need access to a notebook computer or PC equipped with an Ethernet port. The AWK-6232 has a default IP address, user name and password that you must use when resetting or connecting to your AWK-6232 device. - Page 4 Panel Layout of the AWK-6232 RF 1’s 1A and 1B antennas RF 2’s 2A and 2B antennas LEDs for PWR, FAULT, STATE, WLAN1, WLAN2, LAN1, and LAN2 M12 A-coding connector for PWR1 and PWR2 M12 8-pin connector for DI/DO 10/100/1000BaseT(X)
-
Page 5: Dimensions (Unit = Mm)
Rubber plate Antenna Metal N-type Step 1: Hold the antenna metal N-type connector. Step 2: Screw the antenna N-type connector (male) onto the AWK-6232 device’s N-type connector (female) Caution Do not hold the rubber plate to screw the antenna on to the AWK-6232 device. -
Page 6: Wall Mounting
Wall Mounting In most applications, wall mount provides an easier installation. You will find it quite easy to mount AWK-6232 on the wall, as illustrated below. STEP 1: STEP 2: Attach the wall-mounting kit Mounting the AWK-6232 on the wall with M4 screws, as shown in requires 4 screws. -
Page 7: Din-Rail Mounting (Optional)
AWK-6232. A pair of DK-DC50131s is needed for DIN-rail mounting of the AWK-6232. Attach the DIN-rail mounting kits to the rear panel of AWK-6232 with 12 screws. (6 screws for each kit) as shown in the illustration. To Install... -
Page 8: Wiring Requirements
WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-6232. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. - Page 9 stable power input for the AWK. Installations with Cable Extended Antennas for Outdoor Applications If the antenna or the AWK device is installed outdoors or in an open-air setting, proper lightning protection is required to prevent direct lightning strikes on the AWK device. In order to prevent coupling currents from nearby lightning strikes, a lightning arrester should be installed as part of your antenna system.
-
Page 10: Wiring The Redundant Power Inputs
SA-NFNF-01: Surge arrester, N-type (female) to N-type (female) Wiring the Redundant Power Inputs The AWK-6232 must be connected to a Power over Ethernet Plus (PoE+) IEEE 802.3at compliant power source or an IEC60950 compliant limited power source. When AWK-6232 is powered via DC power, the M12 A-coding connector on the bottom panel is used for the AWK-6232’s two... - Page 11 10/100/1000BaseT(X) Ethernet Port Connection AWK-6232 has 10/100/1000BaseT(X) Ethernet ports (8-pin shielded M12 A-coded connector). The 10/100/1000BaseT(X) ports located on the AWK-6232’s bottom panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports.
- Page 12 3. Test the plug to ensure the quality. RS-232 Connection The AWK-6232 has one RS-232 (8-pin RJ45) console port located on the bottom panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-6232’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-6232 for console configuration.
-
Page 13: Led Indicators
EN 50155 standard. LED Indicators The front panel of the Moxa AWK-6232 contains several LED indicators. The function of each LED is described in the table below. Color State... -
Page 14: Specifications
Color State Description LAN 2 Amber, Device is transmitting LAN data at blinking 10/100 Mbps Amber, off 10/100 Mbps LAN port link is inactive Green, on 1000 Mbps LAN port link is active Green, Device is transmitting LAN data at 1000 blinking Mbps Green, off 1000 Mbps LAN port link is inactive... -
Page 15: Physical Characteristics
802.11n (2.4 GHz): Typ. 14±1.5 dBm @ MCS15 20 MHz 802.11a: Typ. 17±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 to 48 Mbps, Typ. 14±1.5 dBm @ 54 Mbps 802.11n (5 GHz): Typ. 13±1.5 dBm @ MCS15 20 MHz, Typ. - Page 16 Weight 1699 g (3.75 lb) Dimensions 224 x 148 x 67 mm (8.82 x 5.82 x 2.62 in) Installation Wall mounting (standard), DIN-rail mounting (optional), pole mounting (optional) Environmental Limits Operating -40 to 75°C (-40 to 167°F) Temperature Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative 5% to 95% (non-condensing) Humidity...
