- Page 1 AirWorks AWK-3121-RTG User’s Manual Edition 4.0, October 2015 www.moxa.com/product © 2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
-
Page 2: Technical Support Contact Information
AirWorks AWK-3121-RTG User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright ©2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. -
Page 3: Table Of Contents
Table of Contents Introduction ............................1-1 Overview ............................1-2 Package Checklist ..........................1-2 Product Features ..........................1-2 Product Specifications ......................... 1-3 Functional Design ..........................1-5 LED Indicators ..........................1-5 Beeper ............................1-6 Reset Button ..........................1-6 Relay (Digital Output) ........................1-7 Getting Started.......................... - Page 4 Software Installation and Configuration ................... 4-1 Overview ............................4-2 AWK Search Utility ..........................4-2 Installing AWK Search Utility ......................4-2 Configuring AWK Search Utility ..................... 4-4 Other Console Considerations ......................5-1 RS-232 Console Configuration (115200, None, 8, 1, VT100) ..............5-2 Configuration by Telnet and SSH Consoles .....................
-
Page 5: Introduction
Introduction The AirWorks AWK-3121-RTG enables wireless users to access network resources wirelessly. The AWK-3121-RTG is rated to operate at temperatures ranging from -25 to 60°C for standard models and -40 to 75°C for wide temperature models, and is rugged enough for any harsh industrial environment. -
Page 6: Overview

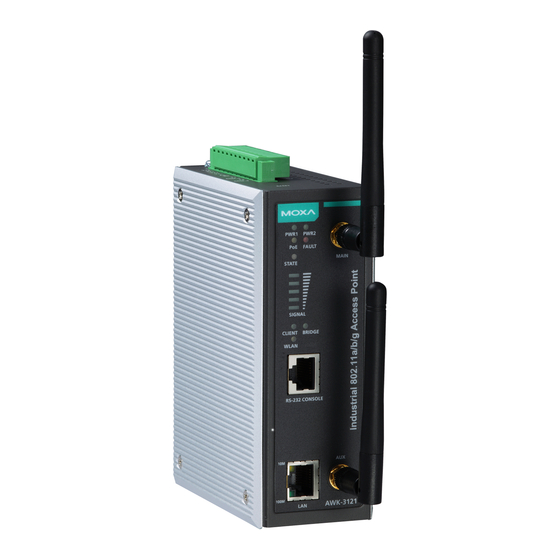

AirWorks AWK-3121-RTG Introduction Overview The AWK-3121-RTG access point, client, and client-router is ideal for train to ground applications. The AWK-3121-RTG can operate at temperatures ranging from -25 to 60°C for standard models and -40 to 75°C for extended temperature models, and is rugged enough for rolling stock environments. Installation is easy, with either DIN-rail mounting or wall mounting in distribution boxes. -
Page 7: Product Specifications
AirWorks AWK-3121-RTG Introduction Product Specifications WLAN Interface Standards: IEEE 802.11a/b/g for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX IEEE 802.3af for Power-over-Ethernet Spread Spectrum and Modulation (typical): • DSSS with DBPSK, DQPSK, CCK •... -
Page 8: Physical Characteristics
AirWorks AWK-3121-RTG Introduction RX Sensitivity: 802.11b: -97 dBm @ 1 Mbps, -94 dBm @ 2 Mbps, -92 dBm @ 5.5 Mbps, -90 dBm @ 11 Mbps 802.11g: -93 dBm @ 6 Mbps, -91 dBm @ 9 Mbps, -90 dBm @ 12 Mbps, -88 dBm @ 18 Mbps, -84 dBm @ 24 Mbps, -80 dBm @ 36 Mbps, -76 dBm @ 48 Mbps, -74 dBm @ 54 Mbps 802.11a:... -
Page 9: Functional Design
AirWorks AWK-3121-RTG Introduction Power Requirements Input Voltage: 12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)* *Compliant with EN 50155 on 24 VDC Connector: 10-pin removable terminal block Power Consumption: 12 to 48 VDC, 0.121 to 0.494 A (max.) AWK-3121-M12-RTG: Maximum 7.9 watts... -
Page 10: Beeper
AirWorks AWK-3121-RTG Introduction The following table summarizes how to read the device’s wireless settings from the LED displays. More information is available in Chapter 3 in the “Basic Wireless Settings” section. Basic Wireless Settings LEDs Note Operation mode CLIENT BRIDGE SIGNAL –... -
Page 11: Relay (Digital Output)
AirWorks AWK-3121-RTG Introduction Relay (Digital Output) The AWK-3121-RTG has one relay output consisting of the 2 terminal block contacts on the top panel, as shown below. These relay contacts are used to forward system failures and user-configured events. The 2 wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the relay circuit will remain closed. -
Page 12: Getting Started
Getting Started In this chapter, we explain how to install Moxa’s AirWorks AWK-3121-RTG for the first time, and quickly set up your wireless network and test whether the connection is running well. The function guide provides a convenient means of determining which functions you need to use. -
Page 13: First-Time Installation And Configuration
AirWorks AWK-3121-RTG Getting Started First-time Installation and Configuration Before installing the AWK-3121-RTG, make sure that all items in the Package Checklist are in the box. You will need access to a notebook computer or PC equipped with an Ethernet port. The AWK-3121-RTG has a default IP address that must be used when connecting to the device for the first time. -
Page 14: Communication Testing
AirWorks AWK-3121-RTG Getting Started NOTE After you click Submit to apply changes the web page will refresh, and (Updated) will appear on the page and a blinking reminder will be shown on the upper-right corner of the web page: To activate the changes click Restart and then Save and Restart after you change the settings. About 30 seconds are needed for the AWK-3121-RTG to complete the reboot procedure. - Page 15 AirWorks AWK-3121-RTG Getting Started How to Test Two or More AWK-3121-RTG Units If you have two or more AWK-3121-RTG units, you will need a second notebook computer (Notebook B) equipped with an Ethernet port. Use the default settings for the first AWK-3121-RTG connected to notebook A and change the second or third AWK-3121-RTG connected to notebook B to Client mode, and then configure the notebooks and AWK-3121-RTG units properly.
-
Page 16: Function Map
AirWorks AWK-3121-RTG Getting Started Function Map Quick overview of the AWK-3121-RTG’s status Basic settings for administering the AWK-3121-RTG Essential settings related to establishing a wireless network WAC parameter settings Advanced features to support additional network management and secure wired and wireless communication Note: These advanced functions are all optional. - Page 17 AirWorks AWK-3121-RTG Getting Started Real-time status information for monitoring wired/wireless network performance, advanced services, and device management functions Functions for maintaining the AWK-3121-RTG, and for diagnosing the network On-demand functions to support the web-based console management operation...
-
Page 18: Web Console Configuration
Web Console Configuration In this chapter, we explain all aspects of web-based console configuration. Moxa’s easy-to-use management functions help you set up your AWK-3121-RTG and make it easy to establish and maintain your wireless network. The following topics are covered in this chapter: ... -
Page 19: Web Browser Configuration
AirWorks AWK-3121-RTG Web Console Configuration Web Browser Configuration Moxa AWK-3121-RTG’s web browser interface provides a convenient way to modify its configuration and access the built-in monitoring and network administration functions. The recommended web browser is ® Microsoft Internet Explorer 7.0 or 8.0 with JVM (Java Virtual Machine) installed. -
Page 20: Overview
AirWorks AWK-3121-RTG Web Console Configuration 2. Use the menu tree on the left side of the window to open the function pages to access each of the AWK-3121-RTG’s functions. In the following paragraphs, we describe each AWK-3121-RTG management function in detail. A quick overview is available in this manual in the “Function Map”... -
Page 21: Basic Settings
AirWorks AWK-3121-RTG Web Console Configuration Click on SSID for more detailed 802.11 information, as shown in the following figure. NOTE The 802.11 info that is displayed may be different for different operation modes. For example, “Current BSSID” is not available in Client/Client Router mode, and “Signal strength” is not available in AP mode. -
Page 22: Network Settings
AirWorks AWK-3121-RTG Web Console Configuration Device contact information Setting Description Factory Default Max. of 31 characters Provides information about whom to contact in order to resolve None problems. Use this space to record contact information of the person responsible for maintaining this AWK-3121-RTG. - Page 23 AirWorks AWK-3121-RTG Web Console Configuration Primary/ Secondary DNS server Setting Description Factory Default IP address of the The IP address of the DNS Server used by your network. After None Primary/Secondary entering the DNS Server’s IP address, you can input the DNS server AWK-3121-RTG’s URL (e.g., http://ap11.abc.com) in your...
-
Page 24: Time Settings
AirWorks AWK-3121-RTG Web Console Configuration Time Settings The AWK-3121-RTG has a time calibration function based on information from an NTP server, SNTP server or user specified Date and Time information. Functions such as Auto warning can add real-time information to the message. -
Page 25: Wireless Settings
AirWorks AWK-3121-RTG Web Console Configuration Time server 1/2 Setting Description Factory Default IP/Name of Time IP or Domain name of the NTP or SNTP time server. The 2nd None Server 1/2 NTP OR SNTP time server will be used if the 1st NTP or SNTP server fails to connect. -
Page 26: Wlan
AirWorks AWK-3121-RTG Web Console Configuration Operation Mode Setting Description Factory Default The AWK-3121-RTG plays the role of wireless AP Client The AWK-3121-RTG plays the role of wireless Client Client-Router The AWK-3121-RTG plays the role of wireless Client and Router. WLAN Basic Wireless Settings The “WLAN Basic Setting Selection”... - Page 27 AirWorks AWK-3121-RTG Web Console Configuration NOTE When you switch to Client or Client-Router mode, a Site Survey button will be available on the Basic Wireless Settings panel. Click the “Site Survey” button to view information about available APs, as shown in the following figure.
-
Page 28: Wlan Security Settings
AirWorks AWK-3121-RTG Web Console Configuration SSID broadcast (For AP mode only) Setting Description Factory Default Enable/ Disable Determines whether or not the SSID can be broadcast Enable NOTE The AWK-3121-RTG-EU (for European frequency bands) only connects SSID-hidden APs on all IEEE 802.11b/g channels. - Page 29 AirWorks AWK-3121-RTG Web Console Configuration According to the IEEE 802.11 standard, WEP can be used for authentication and data encryption to maintain confidentiality. Shared (or Shared Key) authentication type is used if WEP authentication and data encryption are both needed. Normally, Open (or Open System) authentication type is used when WEP data encryption is run with authentication.
- Page 30 AirWorks AWK-3121-RTG Web Console Configuration WPA/WPA2-Personal WPA (Wi-Fi Protected Access) and WPA2 represent significant improvements over the WEP encryption method. WPA is a security standard based on 802.11i draft 3, while WPA2 is based on the fully ratified version of 802.11i.
- Page 31 AirWorks AWK-3121-RTG Web Console Configuration WPA/WPA2-Enterprise (For AP mode only) By setting WPA type to Enterprise, you can use EAP (Extensible Authentication Protocol), a framework authentication protocol used by 802.1X to provide network authentication. In these Enterprise-level security modes, a back-end RADIUS (Remote Authentication Dial-In User Service) server is needed if IEEE 802.1X functionality is enabled in WPA /WPA2.
- Page 32 AirWorks AWK-3121-RTG Web Console Configuration WPA/WPA2-Enterprise (for Client/Slave mode) When used as a client, the AWK-3121-RTG can support three EAP methods (or EAP protocols): EAP-TLS, EAP-TTLS, and EAP-PEAP, corresponding to WPA/WPA-Enterprise settings on the AP side. Encryption method Setting Description...
- Page 33 AirWorks AWK-3121-RTG Web Console Configuration EAP-TTLS It is usually much easier to re-use existing authentication systems, such as a Windows domain or Active Directory, LDAP directory, or Kerberos realm, rather than creating a parallel authentication system. As a result, TTLS (Tunneled TLS) and PEAP (Protected EAP) are used to support the use of so-called “legacy authentication methods.”...
-
Page 34: Advanced Wireless Settings
AirWorks AWK-3121-RTG Web Console Configuration PEAP There are a few differences in the TTLS and PEAP inner authentication procedures. TTLS uses the encrypted channel to exchange attribute-value pairs (AVPs), while PEAP uses the encrypted channel to start a second EAP exchange inside of the tunnel. - Page 35 AirWorks AWK-3121-RTG Web Console Configuration Transmission Rate Setting Description Factory Default Auto The AWK-3121-RTG senses and adjusts the data rate Auto automatically Available rates Users can manually select a target transmission data rate Transmission Power Setting Description Factory Default Available power Users can manually select a target power to mask max output power.
- Page 36 AirWorks AWK-3121-RTG Web Console Configuration NOTE Make sure the same Transmission distance parameters are set in both AP and Client sides. When this parameter is greater than 500, an optimal algorithm will be enabled to support long-distance transmission. Note that Transmission enhancement only supports 802.11b/g mode; 802.11a mode is not supported.
- Page 37 AirWorks AWK-3121-RTG Web Console Configuration MOXA wireless protect Setting Description Factory Default Enable/ Disable Enables Moxa’s Wireless Protect feature to protect your Disable wireless network from DoS attacks. This function only works with Moxa’s AWK-RTG series. RF Index Setting Description...
- Page 38 AirWorks AWK-3121-RTG Web Console Configuration Turbo Roaming Setting Description Factory Default Enable/ Disable Moxa’s Turbo Roaming can enable rapid handover when the Disable AWK-3121-RTG, as a client or client-router, roams among a group of APs. When Turbo Roaming is enabled, Turbo roaming type, the RF type, Dual link option, and Scan channels will be shown as follows.
- Page 39 AirWorks AWK-3121-RTG Web Console Configuration Roaming Parameters Setting Description Factory Default 802.11b/g (or a) When current linking RSSI is lower than this value Client would roaming threshold start the roaming process. 802.11b/g (or a) In roaming process when RSSI of a candidate is higher current...
-
Page 40: Wac Settings
AirWorks AWK-3121-RTG Web Console Configuration NOTE The WLAN certificate will remain after the AWK-3121-RTG reboots. Even though it is expired, it can still be seen on the Current Certificate. WAC Settings When <50ms turbo roaming is enabled, Primary WAC IP address , Backup WAC IP address and Roaming domain will be shown as follows. -
Page 41: Vlan Settings
AirWorks AWK-3121-RTG Web Console Configuration VLAN Settings Setting up Virtual LANs (VLANs) on your AWK series increases the efficiency of your network by dividing the LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to manage. -
Page 42: Configuring Virtual Lan
AirWorks AWK-3121-RTG Web Console Configuration Configuring Virtual LAN VLAN Settings To configure the AWK’s VLAN, use the VLAN Setting page to configure the ports. Management VLAN ID Setting Description Factory Default VLAN ID Set the management VLAN of this AWK. -
Page 43: Dhcp Server (For Ap Mode Only)
AirWorks AWK-3121-RTG Web Console Configuration DHCP Server (For AP mode only) DHCP (Dynamic Host Configuration Protocol) is a networking protocol that allows administrators to assign temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time, instead of assigning permanent IP addresses. -
Page 44: Packet Filters
AirWorks AWK-3121-RTG Web Console Configuration Start IP address Setting Description Factory Default IP address Indicates the IP address which AWK-3121-RTG can start None assigning Maximum number of users Setting Description Factory Default 1 – 999 Specifies how many IP address can be assigned continuously... - Page 45 AirWorks AWK-3121-RTG Web Console Configuration IP Protocol Filter The AWK-3121-RTG’s IP protocol filter is a policy-based filter that can allow or filter out IP-based packets with specified IP protocol and source/destination IP addresses. The AWK-3121-RTG provides 8 entities for setting IP protocol and source/destination IP addresses in your filtering policy.
-
Page 46: Static Route (For Client-Router Mode Only)
AirWorks AWK-3121-RTG Web Console Configuration The Application name is a text string that describes the corresponding entity with up to 31 characters. Remember to check the Active check box for each entity to activate the setting. Enable Setting Description Factory Default... -
Page 47: Nat Settings/Port Forwarding (For Client-Router Mode Only)
AirWorks AWK-3121-RTG Web Console Configuration NAT Settings/Port Forwarding (For Client-Router mode only) Network Address Translation (NAT)—or more specifically, one-to-many NAT, NAPT, or PAT—is supported to facilitate the Client-Router operation mode. This features translates the out-going communication from multiple private IPs to a single external IP (WLAN IP) with randomly assigned port for return traffic. -
Page 48: Snmp Agent
AirWorks AWK-3121-RTG Web Console Configuration Setting Description Factory Default Enable/Disable Enables or disables the NAT translation Disable Port Forwarding Active: Click the checkbox to enable Port Forwarding rule(s). Protocol: Specifies the communication protocol. WAN Port: Specifies the external port to be forwarded to. - Page 49 AirWorks AWK-3121-RTG Web Console Configuration The following parameters can be configured on the SNMP Agent page. A more detailed explanation of each parameter is given below the following figure. Enable Setting Description Factory Default Enable Enables SNMP Agent Disable Disable...
-
Page 50: Mobile Ip Settings
AirWorks AWK-3121-RTG Web Console Configuration Admin auth type (for V1, V2c, V3, and V3 only) Setting Description Factory Default No Auth Use admin account to access objects. No authentication No Auth Provide authentication based on the HMAC-MD5 algorithms. 8-character passwords are the minimum requirement for authentication. - Page 51 AirWorks AWK-3121-RTG Web Console Configuration Terminology Description Mobile Node (MN) A host or router that changes its location from one network to another. Home network The network within which the MN receives its identifying IP address (home address) Home address...
-
Page 52: Auto Warning Settings
AirWorks AWK-3121-RTG Web Console Configuration Auto Warning Settings Since industrial-grade devices are often located at the endpoints of a system, these devices will not always know what is happening elsewhere on the network. This means that these devices, including wireless APs or clients, must provide system maintainers with real-time alarm messages. -
Page 53: Syslog
AirWorks AWK-3121-RTG Web Console Configuration Syslog This function provides the event logs for the Syslog server. The function supports up to three configurable Syslog servers and Syslog server UDP port numbers. When an event occurs, the event will be sent as a Syslog UDP packet to the specified Syslog servers. -
Page 54: E-Mail
AirWorks AWK-3121-RTG Web Console Configuration E-mail E-mail Event Types Check the box for Active to enable the event items. All default values are deactivated (unchecked). Details for each event item can be found on the “System log Event Types” table on page 3-31. -
Page 55: Relay
AirWorks AWK-3121-RTG Web Console Configuration User name & Password Setting Description Factory Default User name and password used in the SMTP server None From e-mail address Setting Description Factory Default Max. 63 characters Enter the administrator’s e-mail address which will be shown in None the “From”... - Page 56 AirWorks AWK-3121-RTG Web Console Configuration Trap Event Types SNMP Trap Receiver Settings In SNMP traps mode, Traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers through the web page.
-
Page 57: Status
AirWorks AWK-3121-RTG Web Console Configuration 1st / 2nd Trap community Setting Description Factory Default Max. of 31 characters Use a community string match with a maximum of 31 alert characters for authentication. Status Wireless Status The status for 802.11 info parameters, such as Operation mode and Channel, are shown on the Wireless Status page. -
Page 58: Associated Client List (For Ap Mode Only)
AirWorks AWK-3121-RTG Web Console Configuration Associated Client List (for AP mode only) Associated Client List shows all the clients that are currently associated to a particular AWK-3121-RTG. You can click Select all to select all the content in the list for further editing. You can click Refresh to refresh the list. -
Page 59: System Log
AirWorks AWK-3121-RTG Web Console Configuration System Log Triggered events are recorded in System Log. You can export the log contents to an available viewer by clicking Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to refresh the log. -
Page 60: Di And Power Status
AirWorks AWK-3121-RTG Web Console Configuration DI and Power Status The status of power inputs and digital inputs is shown on this web page. The status will refresh every 5 seconds if the Auto refresh box is checked. AeroLink Protection Status (For Client/Slave mode only) After enabling AeroLink Protection from the Advanced WLAN Setup panel, the following table shows the current state of the AeroLink Protection for easier diagnosis. -
Page 61: Lan Status
AirWorks AWK-3121-RTG Web Console Configuration LAN Status The LAN Status page displays LAN port status information, including speed, duplex status, on/off status, as well as the number of packets transmitted and received. Maintenance Maintenance functions provide the administrator with tools to manage the AWK-3121-RTG and wired/wireless networks. -
Page 62: Firmware Upgrade
AirWorks AWK-3121-RTG Web Console Configuration Firmware Upgrade The AWK-3121-RTG can be enhanced with more value-added functions by installing firmware upgrades. The latest firmware is available at Moxa’s download center. Before running a firmware upgrade, make sure the AWK-3121-RTG is off-line. Click the Browse button to specify the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. -
Page 63: Mib Export
AirWorks AWK-3121-RTG Web Console Configuration Third you can also back up or restore the ABC-01 (HW Rev. 1.1 support only) configuration with Config Import Export. To download the configuration to the AWK: 1. Turn off the AWK. 2. Plug in the ABC-01 to the AWK’s RS-232 console. -
Page 64: Password
AirWorks AWK-3121-RTG Web Console Configuration Password You can change the administration Username and password for each of the AWK-3121-RTG’s console managers by using the Username and Password function. Before you set up a new password, you must input the current password and reenter the new password for confirmation. For your security, do not use the default password root, and remember to change the administration password regularly. -
Page 65: Save Configuration
AirWorks AWK-3121-RTG Web Console Configuration Save Configuration The following figure shows how the AWK-3121-RTG stores the setting changes into volatile and non-volatile memory. All data stored in volatile memory will disappear when the AWK-3121-RTG is shutdown or rebooted unless they are y. Because the AWK-3121-RTG starts up and initializes with the settings stored in flash memory, all new changes must be saved to flash memory before restarting the AWK-3121-RTG. -
Page 66: Restart
AirWorks AWK-3121-RTG Web Console Configuration Restart If you submitted configuration changes, you will find a blinking string in the upper right corner of the screen. After making all your changes, click the Restart function in the left menu box. One of two different screens will appear. -
Page 67: Software Installation And Configuration
Software Installation and Configuration The following topics are covered in this chapter: Overview AWK Search Utility Installing AWK Search Utility Configuring AWK Search Utility... -
Page 68: Overview
AirWorks AWK-3121-RTG Software Installation and Configuration Overview The Documentation & Software CD included with your AWK-3121-RTG is designed to make the installation and configuration procedure easy and straightforward. This auto-run CD includes AWK Search Utility (to broadcast search for all AWK’s accessible over the network), the AWK-3121-RTG User’s Manual, and Quick Installation Guide. - Page 69 AirWorks AWK-3121-RTG Software Installation and Configuration 3. Click Next to create the program’s shortcut files to the default directory, or click Browse to select an alternate location. 4. Click Next to select additional tasks. 5. Click Next to proceed with the installation. The installer then displays a summary of the installation options.
-
Page 70: Configuring Awk Search Utility
AirWorks AWK-3121-RTG Software Installation and Configuration 7. Click Finish to complete the installation of AWK Search Utility. Configuring AWK Search Utility The Broadcast Search function is used to locate all AWK-3121-RTG APs that are connected to the same LAN as your computer. - Page 71 AirWorks AWK-3121-RTG Software Installation and Configuration 3. The “Searching” window indicates the progress of the search. When the search is complete, all AWKs that were located will be displayed in the AWK Search Utility window. 4. Click Locate to cause the selected device to beep.
- Page 72 AirWorks AWK-3121-RTG Software Installation and Configuration ATTENTION For security purposes, we suggest you can change the AWK search utility login password instead of using the default. To modify the configuration of the highlighted AWK, click on the Web icon to open the web console. This will take you to the web console, where you can make all configuration changes.
- Page 73 AirWorks AWK-3121-RTG Software Installation and Configuration Click Assign IP to change the IP setting. The three advanced options—Search, Connection, and Miscellaneous—are explained below: Search • Retry count (default=5): Indicates how many times the search will be retried automatically. • Retry interval (ms): The time lapsed between retries.
- Page 74 AirWorks AWK-3121-RTG Software Installation and Configuration Misc. Search on start: Checkmark this box if you would like the search function to start searching for devices after you log in to the AWK search Utility.
-
Page 75: Other Console Considerations
Other Console Considerations This chapter explains how to access the AWK-3121-RTG for the first time. In addition to HTTP access, there are four ways to access AWK-3121-RTG: serial console, Telnet console, SSH console, and HTTPS console. The serial console connection method, which requires using a short serial cable to connect the AWK-3121-RTG to a PC’s COM port, can be used if you do not know the AWK-3121-RTG’s IP address. -
Page 76: Rs-232 Console Configuration (115200, None, 8, 1, Vt100)
AirWorks AWK-3121-RTG Other Console Considerations RS-232 Console Configuration (115200, None, 8, 1, VT100) The serial console connection method, which requires using a short serial cable to connect the AWK-3121-RTG to a PC’s COM port, can be used if you do not know the AWK-3121-RTG’s IP address. It is also convenient to use serial console configurations when you cannot access the AWK-3121-RTG over Ethernet LAN, such as in the case of LAN cable disconnections or broadcast storming over the LAN. - Page 77 AirWorks AWK-3121-RTG Other Console Considerations 4. The Console login screen will appear. Log into the RS-232 console with the login name (default: admin) and password (default: root, if no new password is set). 5. The AWK-3121-RTG’s device information and Main Menu will be displayed. Please follow the description on screen and select the administration option you wish to perform.
-
Page 78: Configuration By Telnet And Ssh Consoles
AirWorks AWK-3121-RTG Other Console Considerations Configuration by Telnet and SSH Consoles You may use Telnet or SSH client to access the AWK-3121-RTG and manage the console over a network. To access the AWK-3121-RTG’s functions over the network from a PC host that is connected to the same LAN as the AWK-3121-RTG, you need to make sure that the PC host and the AWK-3121-RTG are on the same logical subnet. -
Page 79: Configuration By Web Browser With Https/Ssl
AirWorks AWK-3121-RTG Other Console Considerations Configuration by Web Browser with HTTPS/SSL To secure your HTTP access, the AWK-3121-RTG supports HTTPS/SSL encryption for all HTTP traffic. Perform the following steps to access the AWK-3121-RTG’s web browser interface via HTTPS/SSL. 1. Open your web browser and type https://<AWK-3121-RTG’s IP address> in the address field. Press Enter to establish the connection. -
Page 80: Disabling Telnet And Browser Access
AirWorks AWK-3121-RTG Other Console Considerations Disabling Telnet and Browser Access If you are connecting the AWK-3121-RTG to a public network but do not intend to use its management functions over the network, then we suggest disabling both Telnet Console and Web Configuration. Please run... -
Page 81: References
References This chapter provides more detailed information about wireless-related technologies. The information in this chapter can help you administer your AWK-3121-RTGs and plan your industrial wireless network better. The following topics are covered in this appendix: Beacon DTIM ... -
Page 82: Beacon
AirWorks AWK-3121-RTG References Beacon A beacon is a packet broadcast by the AP to keep the network synchronized. A beacon includes the wireless LAN service area, the AP address, the Broadcast destination address, a time stamp, Delivery Traffic Indicator Maps (DTIM), and the Traffic Indicator Message (TIM). -
Page 83: Supporting Information
Supporting Information This chapter presents additional information about this manual and product. You can also learn how to contact Moxa for technical support. The following topics are covered in this appendix: DoC (Declaration of Conformity) Federal Communication Commission Interference Statement ... -
Page 84: Doc (Declaration Of Conformity
AirWorks AWK-3121-RTG Supporting Information DoC (Declaration of Conformity) Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 85: R&Tte Compliance Statement
AirWorks AWK-3121-RTG Supporting Information R&TTE Compliance Statement Moxa declares that the apparatus AWK-3121-RTG complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). - Page 86 AirWorks AWK-3121-RTG Supporting Information Enter 2 to change the network setting. Specify where the AWK-3121-RTG’s firmware file on the TFTP server and press y to write the settings into flash memory. AWK-3121-RTG restarts, and the “Press Ctrl-C to enter Firmware Recovery Process…” message will reappear.
