Page 1: Quick Installation Guide

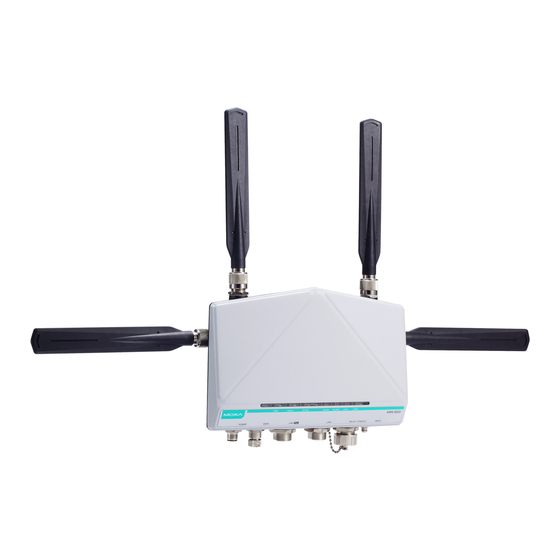

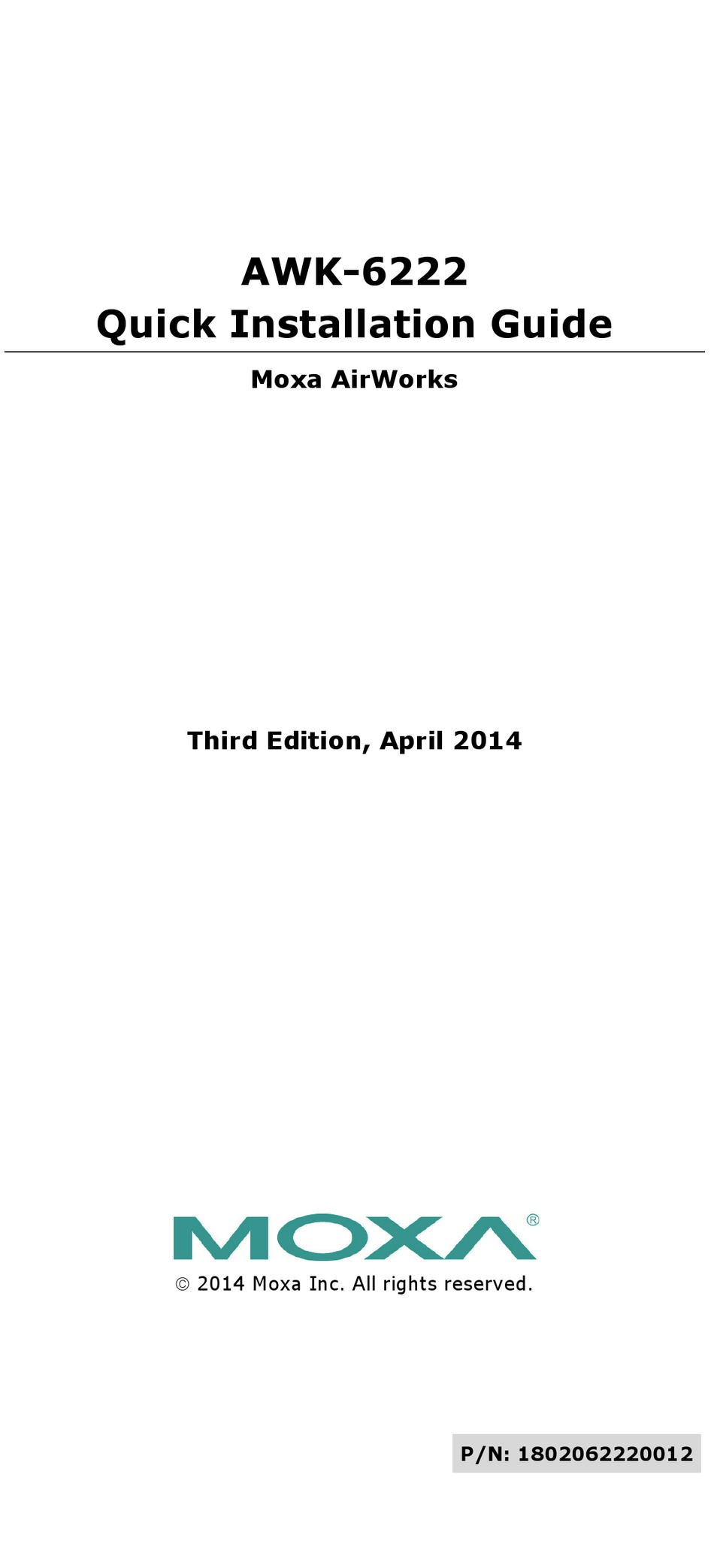

AWK-6222 Quick Installation Guide Moxa AirWorks Third Edition, April 2014 2014 Moxa Inc. All rights reserved. P/N: 1802062220012... -
Page 2: Notes For The Reader
NOTE Highlights important information related to this product. Package Checklist Moxa’s AWK-6222 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. - Page 3 NOTE To make the change effective, you must save the change and then click Restart Save and Restart button to apply all changes. Panel Layout of the AWK-6222 1. MAIN 1 antenna port. 2. MAIN 2 antenna port. 3. AUX 1 antenna port.
-
Page 4: Dimensions (Unit = Mm)
Dimensions (unit = mm) Wall Mounting In most applications, wall mount provides an easier installation. You will find it quite easy to mount AWK-6222 on the wall, as illustrated below. STEP 1: STEP 2: Attach the wall-mounting kit Mounting the AWK-6222 on the wall with M4 screws, as shown in requires 4 screws. -
Page 5: Din-Rail Mounting (Optional)
DK-DC50131s is needed for DIN-Rail mounting. To install the DIN-Rail mounting kits, tightly attach the two DIN-Rail mounting kits on the rear panel of AWK-6222 with 12 screws. (6 screws for each kit) To Install STEP 1: STEP 2:... -
Page 6: Wiring Requirements
To Release STEP 1: STEP 2: Pull out the two spring-loaded Pull the AWK-6222 out and upward. brackets from the bottom until they are fixed in the “release” position. Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-6222. -
Page 7: Wiring The Redundant Power Inputs
802.3af compliant power source or an IEC60950 compliant limited power source. When AWK-6222 is powered via DC power, the M12 A-coding connector on the bottom panel is used for the AWK-6222’s two redundant inputs. The pin assignment is shown below:... -
Page 8: Communication Connections
Wiring the Digital Inputs and Relay Contact (Digital Output) The AWK-6222 has two sets of digital input—DI1 and DI2. Each DI comprises two contacts of the 8-pin M12 connector on the AWK-6222’s bottom panel. These two digital inputs can be connected to digital-output-enabled sensors for on-site status monitoring. - Page 9 RS-232 Connection The AWK-6222 has one RS-232 (8-pin RJ45) console port located on the bottom panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-6222’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-6222 for console configuration.
- Page 10 Tightly screw the clamp ring ④ to the housing and check to make sure that the plug is securely fastened. (NOTE: for a tighter connection, you can connect the RJ-45 plug to the AWK-6222 before STEP 4.) - 10 -...
-
Page 11: Led Indicators
LED Indicators The front panel of the Moxa AWK-6222 contains several LED indicators. The function of each LED is described in the table below. Color State Description Power is being supplied (from power input 1 or 2, or PoE) Green Power is not being supplied. -
Page 12: Specifications
Specifications WLAN Standards IEEE 802.11a/g/b for Wireless LAN IEEE 802.11i Wireless Security IEEE 802.3u 10/100BaseT(X) for Ethernet LAN EEE 802.3af for Power-over-Ethernet IEEE 802.1D/w STP/RSTP Spread Spectrum and DSSS with DBPSK, DQPSK, CCK Modulation (Typical) OFDM with BPSK, QPSK, 16QAM, 64QAM 64QAM @ 54 Mbps, 16QAM @ 24/36 Mbps, QPSK @ 12/18 Mbps, CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBSK@ 1 Mbps... - Page 13 5 years Details: See http://www.moxa.com/warranty ATTENTION The AWK-6222 is NOT a portable mobile device and should be located 20cm away from the human body. The AWK-6222 is NOT designed for the general public. A well-trained technician is required to safely deploy AWK-6222s and establish a wireless network..
-
Page 14: Technical Support Contact Information
ATTENTION Use the antennas correctly: The 2.4GHz antennas are needed when AWK-6222 operates in IEEE 802.11b/g. The 5GHz antennas are needed for IEEE802.11a. Make sure your antenna installation is within a safety area, which is covered by a lightning protection or surge arrest system.
