  • Page 1 FZR 2028 E...
  • Page 2 English ........................................1 - 18 Čeština........................................19 - 34 Slovenština ......................................35 - 50 Magyarul ......................................51 - 64 Polski .........................................65 - 84 FZR 2028 E...

  • Page 3: Table Of Contents

    Table of Contents Electric Lawnmower USER’S MANUAL Thank you for purchasing this rotary electric lawnmower. Before you start using it, please, carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS..........................4 Important safety notice ............................4 Packaging ..................................4 Instructions for use ..............................4...

  • Page 4: General Safety Instructions

    Following the instructions in the included user's manual is a prerequisite for the proper use of the machine. The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 2028 E...

  • Page 5: Symbols

    Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a sufficient distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cord is damaged, disconnect the power plug from the mains.

  • Page 6: Description (Fig. 1)

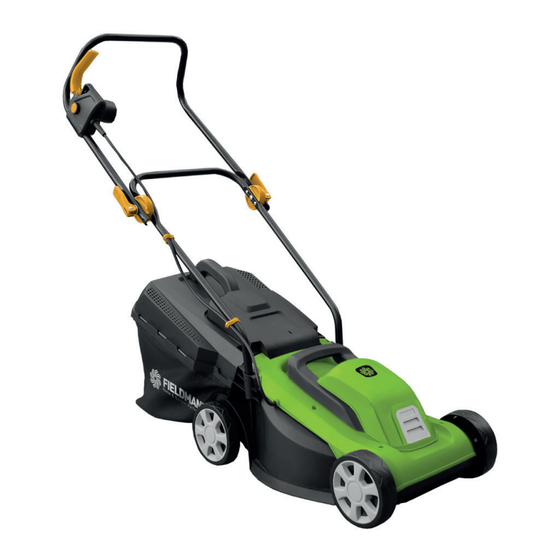

    (FIG. 1) 1. Top Handle 2. Start lever Fig. 1 3. Start button 4. Nut with quick coupler 5. Lower handle 6. Safety grass catcher cover 7. Transport handle 8. Wheels 9. Lawnmower chassis 10. Grass catcher FZR 2028 E...

  • Page 7: Fundamentals Of Work Safety

    Fundamentals of work safety 4. FUNDAMENTALS OF WORK SAFETY Never use the machine if the power cord is damaged or visibly worn out. In the event that you connect the lawnmower using a damaged power cord to a power source and then touch the place that is uninsulated before the lawnmower is disconnected from the power source, you subject yourself to a risk of injury by electrical shock.

  • Page 8: Before You Start Using The Lawnmower

    OPERATION Only operate the machine during daylight hours or under sufficient artificial lighting. If possible, do not mow wet grass. Make sure that during work you always have firm support and a secure stance. FZR 2028 E...

  • Page 9: Maintenance And Storage

    Fundamentals of work safety Do not run when pushing the mower but rather walk at a normal pace. The following general rules apply for work with the lawnmower: When mowing vegetation on a slope, one does not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope.

  • Page 10: Assembly

    Attach the top handle part using screws with the quick coupler, see fig. 2.2. The thorx design allows you to set the handle height. Attach the main switch onto the mower’s top handle, see fig. 2.3. Secure the main switch cable in the handle using the attached clips (1), see fig. 2.4. FZR 2028 E...

  • Page 11: Installing The Grass Catcher, Attaching The Wheel Cover

    Assembly 5.2 INSTALLING THE GRASS CATCHER, ATTACHING THE WHEEL COVER Fig. 3.3 Fig. 3.1 Fig. 3.2 Fig. 3.4 Fig. 3.5 Attach the handle to the top part of the grass catcher, see fig. 3. 1 . Attach the steel mesh frame to the top cover of the grass catcher using the screw with nuts (1), see fig. 3.2. Insert the mesh in the groove along the circumference of the grass catcher cover and press down firmly.

  • Page 12: Operation

    The length of the power cord should not exceed 30 m. The lawnmower may lose power when a longer power cord is used. 6.3 TURNING THE LAWNMOWER ON/OFF ATTENTION: Do not start the lawnmower when it is standing in a place with tall grass. FZR 2028 E...

  • Page 13: Mowing

    Operation Turning on: Press and hold the safety button. Figure 5, point A. Then pull the starting lever to the handle. Figure 5, point B. Release the safety button. Turning off: Release the starting lever (Figure 5, point B) Fig. 5 ATTENTION: The blade will rotate several seconds after the lawnmower is turned off.

  • Page 14: Technical Specifications

    Technical Specifications 7. TECHNICAL SPECIFICATIONS Model FZR 2028 E Power supply 230-240 V, 50 Hz Power input 1300 W Idling speed 3,400 min Coverage width (blade length): 330 mm Mowing heights 20/40/60 mm - 3 positions Grass catcher volume 30 l...

  • Page 15: Maintenance

    In the event that despite regular maintenance, the machine does not work, please contact our customer service, the potential repair should be carried out by our contractual partner in one of the specialised workshops of the Fieldmann brand. 8.1 BLADE REPLACEMENT For this task, we recommend that you contact an authorised service centre.

  • Page 16: Disposal

    This product meets all the basic requirements of EU directives related to it. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes. User s manual in the original language. FZR 2028 E...
  • Page 17 EU DECLARATION OF CONFORMITY Product / brand: Electric Lawn Mower / FIELDMANN EU DECLARATION OF CONFORMITY Type / model: FZR 2028-E as factory model YJ-3313-2 AC 230 V; 50/60Hz; 1300W; speed 3400 rpm; width 310 mm; Class II; IPX4 Product / brand:...
  • Page 18 FZR 2028 E...
  • Page 20 Tel.: +420/ 323 204 120 Tel.: +420/ 531 010 295 Tel.: +421/ 249 105 811 Fax: +420/ 323 204 121 Fax: +420/ 531 010 296 Fax: +421/ 249 105 81 O ser v is.praha@fastcr.cz ser vis.brno@fastcr.cz fastplus@fastplus.sk www.fastcr.cz www.fastcr.cz www.fastplus.sk FZR 2028 E...
  • Page 21 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 22 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
