  • Page 1 High pressure cleaners D 16/220...

  • Page 2: Dear Customer

    - barrels and - flagstones types containers - terraces - sheds - machines - channels - streets technical D 16/220 specifications operating pressure, steplessly adjustable 10 - 220 bar permissible 240 bar overpressure water output at 1800 rpm 16 l/min hot water input up to 70 °C...

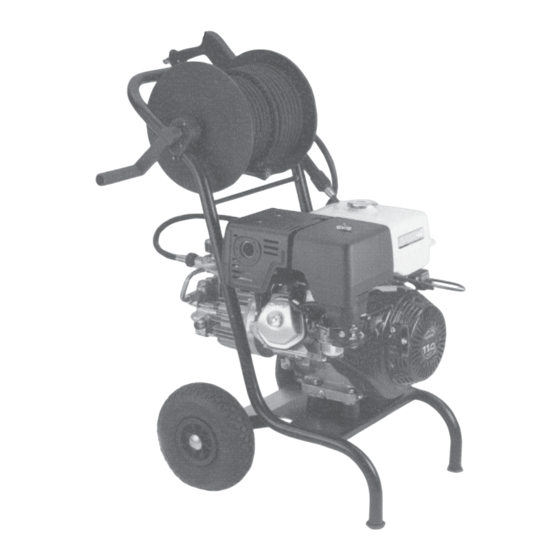

  • Page 3 Description Description Description water Construction The KRÄNZLE D 16/220 - high pressure cleaners are mobile machines. The design can be seen from the diagram. Item 6 Injector for cleaning agents 1 Water inlet connection with filter 7 High pressure hose...

  • Page 4: Unloader Valve - Safety Valve

    Description Description Description Description Description Water - and Cleang - Care System Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.

  • Page 5: Setting Up: Location

    Description Description Description Description Description For the motor follow the Y For the motor follow the Yanmar For the motor follow the Y anmar anmar anmar For the motor follow the Y For the motor follow the Y anmar operating manual only operating manual only operating manual only.

  • Page 6: High Pressure Hose And Spray Device

    Description Description Description Description Description Brief operating instructions 1. Connect the high pressure hose with spray gun and machine. 2. Connect the suitable water supply. 3. Flush the air from the pump (open and close the spray gun several times). 4.

  • Page 7: Safety Notes

    Safety notes Safety notes Safety notes Safety notes Safety notes As to the recoil - see notice on page 2. Apply the safety catch on the spray gun after each use, in order to prevent unintentional spraying. Always aim the underbody lance.

  • Page 8: This Is What You´ve Purchased

    2. Spray gun with insulated pistol grip and screw connection 3. KRÄNZLE - High pressure cleaner D 16/220 4. High pressure hose 10 m 15 m HP-hose for cleaners with hose drum 5. Operating instructions pump Operating instructions motor 6.

  • Page 9: Prepare For Use

    Prepare for use Prepare for use Prepare for use Prepare for use Prepare for use 1. Oil-measuring stick 2. Connect the high pressure lance to the spray gun. 3. Unwind the high pressure hose without leaving kinks or "nooses" and connect it to the spray gun and pump.

  • Page 10: Preparation For Use

    Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use 4. The machine can be connected to a pressurised water line with cold or 60 °C respectively 70 °C hot water (see page 2). Ensure that the water supply ist clean when sucking from external sources.

  • Page 11: Adjusting The Pressure

    Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. To shut down the pump: 1. Switch off the machine 2.
  • Page 12 This is prohibited This is prohibited This is prohibited This is prohibited This is prohibited Never allow children to use the high pressure cleaner ! Never direct the water jet at the machine itself !
  • Page 13 This is prohibited This is prohibited This is prohibited This is prohibited This is prohibited Never direct the water jet at people or animals ! Never pull the high pressure hose if it has formed kinks or "nooses"! Never pull the hose over sharp edges !
  • Page 14 Additional KRÄNZLE accessories Additional KRÄNZLE accessories Additional KRÄNZLE accessories Additional KRÄNZLE accessories Additional KRÄNZLE accessories Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose Order No. 8 m - 41.051 Order No. 15 m - 41.058 Underbody lance, new Order No.
  • Page 15 for further combination possibilities for further combination possibilities for further combination possibilities for further combination possibilities for further combination possibilities Car cleaning, glass, caravan, boat etc.: rotary washing brush with 40 cm extension ST 30 nipple M 22 Cleaning pipes, channels and drains: Pipe cleaning hose with KN nozzle and ST 30 nipple M 22.

  • Page 16: Small Repairs

    Small repairs – Small repairs – Small repairs – Small repairs – Small repairs – You only get a weak flow of water or no water at all ! The pressure gauge shows a 10% higher pressure than the working pressure. The injector may be dirty Now turn on the water and you...

  • Page 17: Do-It-Yourself

    Do it yourself ! Do it yourself ! Do it yourself ! Do it yourself ! Do it yourself ! The nozzle is blocked ! No water but the gauge shows full pressure. You should now have but if you only Rinse the hose through a powerful stream of get a few drops...
  • Page 18 Small repairs - Do it yourself ! Small repairs - Do it yourself ! Small repairs - Do it yourself ! Small repairs - Do it yourself ! Small repairs - Do it yourself ! Valve dirty or sticky ! Pressure gauge does not show full pressure.

  • Page 19: Accident Prevention

    General rules General rules General rules General rules General rules Inspections: The machine must be inspected according to the "Guidelines for Liquid Spray Devices" at least once every 12 months by a qualified person, to ensure that continued safe operation is guaranteed. The results of the inspection are to be recorded in writing.

  • Page 20: Complete Assembly

    Complete Assembly Complete Assembly Complete Assembly Complete Assembly Complete Assembly...
  • Page 21 KRÄNZLE KRÄNZLE D 16/220 D 16/220 D 16/220 KRÄNZLE KRÄNZLE D 16/220 D 16/220 Spare parts list Profi-Jet D 16/220 with undercarriage Complete Assembly Description Qty. Ord.-No. Wagen 41.101 7 Wagen kompl. (Pos. 1 + 3) 41.101 5 Sechskantschraube M 8 x 30 40.221...
  • Page 22 T T T T T ransmission unit ransmission unit ransmission unit ransmission unit ransmission unit...
  • Page 23 Spare parts list Profi-Jet D 16/220 Transmission unit AQ-Pump Description Qty. Ord.-No. Ölgehäuse 40.501 O-Ring 13,94 x 2,62 42.167 Ölablassstopfen R 3/8“ 42.019 Innensechskantschraube M 8 x 25 40.053 Sicherungsscheibe 40.054 Flachdichtung 40.511 Öldichtung 20 x 30 x 7 40.044 1 Wellenscheibe 40.043...
  • Page 24 V V V V V alve housing alve housing alve housing alve housing alve housing...
  • Page 25 Spare parts list Profi-Jet D 16/220 Valve housing AQ-Pump Ventilgehäuse AQ mit integr. UL 40.521 Dichts topfen M 10 x 1 43.043 ohne integr. Druckschalter Edelstahlkugel Ø10 12.122 Rücks chlagfeder „K“ 14.120 1 O-Ring 18 x 2 40.016 Einlass- / Auslass- Ventil 42.024...
  • Page 26 Unloadervalve Unloadervalve Unloadervalve Unloadervalve Unloadervalve...
  • Page 27 KRÄNZLE KRÄNZLE KRÄNZLE D 16/220 D 16/220 D 16/220 KRÄNZLE KRÄNZLE D 16/220 D 16/220...
  • Page 28 Hose drum Hose drum Hose drum Hose drum Hose drum...
  • Page 29 Spare parts list Profi-Jet D 16/220 Hose Drum Description Qty. Ord.-No. Description Qty. Ord.-No. Seitenschale Schlauchführung 40.302 Kurbelarm 40.309 1 Seitenschale Wasserführung 40.301 Hülse 40.309 2 Trommel Unterteil 40.304 Druckfeder 40.309 3 Trommel Oberteil 40.303 Bolzen 40.309 4 Innensechskantschraube M 4 x 25 40.313...

  • Page 30: Speed Control

    Speed control Speed control Speed control Speed control Speed control Spare parts list Profi-Jet B 16/220 Speed control Description Qty. Ord.-No. Grundteil 42.581 Druckhülse 42.584 Steuerkolben 42.582 Querbolzen 42.583 Druckfeder 2,0 x 9,5 x 70 42.587 Gewindestift M4 x 6 DIN 913-A2 42.592 Parbaks 7 mm 15.013...
  • Page 31 Starlet II - Pistole Starlet II - Pistole Starlet II - Pistole Starlet II - Pistole Starlet II - Pistole Spare parts list Profi-Jet D 16/220 Starlet II Description Qty. Ord.-No. Ventilkörper mit Handgriff 12.294 Sc hutz hülse 12.295 Abdeckschutz 12.296...
  • Page 32 T T T T T urbokiller urbokiller urbokiller urbokiller urbokiller Spare parts list Profi-Jet D 16/220 Turbokiller 055 Description Qty. Ord.-No. Sprühkörperschutz 41.528 Sprühkörper 41.529 O-Ring 6,88 x 1,68 41.521 Düsensitz 41.522 Düse 055 41.532 Ring 41.533 Rotor 41.534 Stabilisator 41.524...
  • Page 33 Standard regulation nozzle Standard regulation nozzle Standard regulation nozzle Standard regulation nozzle Standard regulation nozzle Spare parts list Profi-Jet D 16/220 Standard reg. nozzle Description Qty. Ord.-No. Nippel ST30 M22x1,5 AG / M 12 x 1 13.363 Rohr 400 mm, bds. M 12 x 1 15.002...
  • Page 34 Inspirection report Inspirection report Inspirection report Inspirection report Inspirection report for KRÄNZLE - High Pressure Cleaners Regular inspection every 12 months if used professionally! Appliance No: Type: The following must be checked: 1. Safety features 2. General condition a) Manometer a) High pressure hose b) Safety valve (pressure control) b) Spray gun...

  • Page 35: Ec Declaration Of Conformity

    High-pressure-cleaners Nettoyeurs à haute pression Hochdruckreiniger I. Kränzle GmbH Elpke 97 . 33605 Bielefeld EC declaration of conformity We hereby declare, Kränzle D16/220 that the high-pressure models: (techn. documentation available from): Manfred Bauer, Fa. Josef Kränzle Rudolf-Diesel-Str. 20, 89257 Illertissen comply with the following guidelines and Machine guideline 2006/42/ specifications and their amendments for...
  • Page 36 Reprint only allowed with the authorization of As date of 01/03/11...
