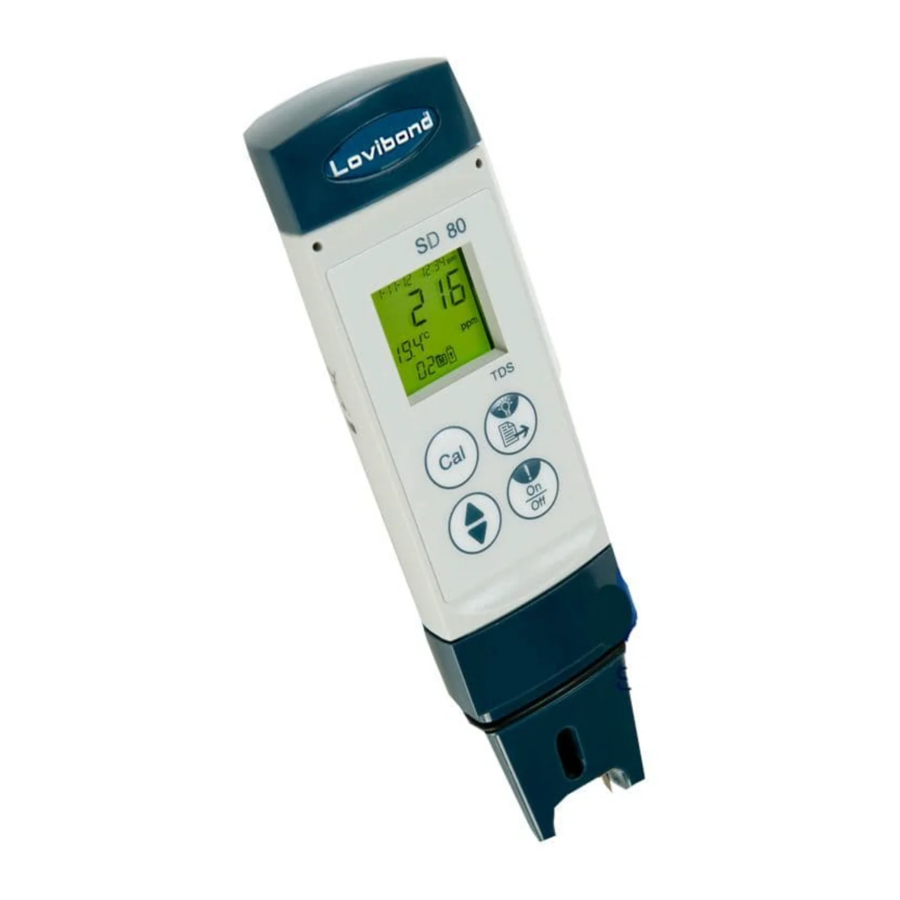

Lovibond SD 80 - Tester Manual

Table of Contents

Contents

1 On/Off function GB
2 Measurement
3 Calibration
4 Viewing saved data
5 Deleting saved data
6 Selection of TDS-factor
7 Type of display of date and time
8 Adjusting date and time
9 Adjusting the temperature unit
10 Replacing electrodes
11 Replace battery
12 Error messages and procedure
13 Specifications
14 Accessories
15 Warranty
16 Documents / Resources
- 16.1 Download manual

On/Off function GB

Press briefly

If! appears, deactivate with

Automatic shut-off after 8 min. of inactivity

Press and hold for 3 sec. to switch off the device

Display lighting on/off

Measurement

Hold the device without protective cap in the sample water to be measured so that the device is immersed in the sample water no higher than the seal ring.

The measurement is displayed.

Briefly press! to freeze/release the measurement

Press and hold for 3 sec. to save the measurement
The storage location (e.g. 01) appears in the display while the button is pressed

Calibration

The electrode must be rinsed off after each measurement/calibration with distilled water. Recalibrate as necessary. If the temperature is outside of the measuring range, 'ERR' appears. The measuring device automatically returns to measuring mode. When the readout of the standard is more than 30% outside of the standard buffer range, 'ERR' appears.

Autom. recognition of limited to: 100999 ppm; limited to 1 - 10 ppt.

Pull off the protective cap, switch on the device, rinse the electrode with distilled water, then immerse in the calibration solution.

Press Cal for 3 sec.

CAL blinks in the display

The value can be adjusted as follows:

Press and hold (+) to increase, or with

increase

Press (-) to decrease

Saving and closing the calibration
The device jumps back to display mode

Remove the protective cap, switch on the device, rinse the electrode with distilled water, then immerse in the calibration solution.

Press Cal for 3 sec.

CAL blinks in the display

The value can be adjusted as follows:

Press and hold (+) to increase, or with

increase

Press (-) to decrease

Saving and closing the calibration
The device jumps back to display mode

shows the type of calibration in the display.

Viewing saved data

Switch on

Press for 3 sec.

The last storage location blinks

Confirm

The last storage location is shown

Switch between storage locations

To close

Deleting saved data

View the saved values (see 4.)
Press for 3 sec.

CLEAR blinks

Confirm deletion of values
All values are deleted

Process closes automatically

Selection of TDS-factor

Switch on

Press for 3 sec.

Press 1 x
Adjusted TDS factor blinks

Confirm

Selection of TDS factor
(0.7 or 0.5)

Save and close

Type of display of date and time

Switch on

Press for 3 sec.

Press 4 x

Date appears
Confirm

Choose between 12-hour clock (AM/PM) and 24-hour clock

Save and close

Adjusting date and time

Switch on

Type of display must be selected beforehand (see 7.) Press for 3 sec.

Press 2 x

Time blinks

Confirm

Minutes can be adjusted.

To increase

To decrease

Save and switch to hours

To increase

To decrease

Save and switch to year

To increase

To decrease

Save and switch to month/day

To increase

To decrease

Save and close

Adjusting the temperature unit

Switch on

Press for 3 sec.

Press 3 x

Temperature unit blinks

Confirm

Selection of temperature unit (°F/°C)

Save and close

Replacing electrodes

Replace battery

Error messages and procedure

Description	Measuring range	Procedure
Err 1 Electrode not installed or defective	Thermistor: 0.5~100 kΩ	Install electrode or replace
Err 2 not used
Err 3 Temperature outside of the measuring range	0~60°C	Bring the solution to a temperature within the measuring range
Err 4 not used
Err 5 Calibrated offset outside of the measuring range	70 -130% (compare to the standard value)	Calibrate the electrode - again, replace it, or use the standard value (remove batteries)
Err 6 Conductivity outside of the measuring range	< 10.00 ppt	Use a different solution

Specifications

Operating range: 0-60°C, <10.00 ppt
Automatic pole change between ppm and ppt. ppm: 0~999 ppm; ppt: 1,00~10,00 ppt
Up to 2-point calibration for manual mode. +/-50% adjustable value
TDS resolution: 1ppm (<= 999 ppm) and 0.01 ppt (1.00 - 10.00 ppt); Accuracy: ±3% FS
Temperature resolution: 0.1°C; Accuracy: ±1°C, optional °C/°F System
Optional TDS factor, 442:0.7, NaCl: 0.5
Display of time and date with 25 storage locations (not permanent)
22x22 mm LCD screen with yellow-brown background lighting
2 x AAA batteries 1.5 V
Automatic shut-off to save battery life (with 8 min. of inactivity)
Battery capacity > 100 h with continuous use (without display lighting)
Low battery indicator in the display

Accessories

1950026	AAA batteries in 4-pack (2 batteries required)
19 48 22	Spare electrode
38 48 01	Measuring beaker, 100 ml
19 48 10-16	Plastic box
46 76 42	Conductivity (1413 µS) and TDS (998 ppm) adjusting solution 100 ml
46 76 43	Conductivity (12.89 mS) and TDS (9.02 ppth) adjusting solution 100 ml

Warranty

The warranty for the SD 80 is valid for a period of 2 years from the date of purchase; the warranty for the electrode is 12 months. This does not cover damages resulting from improper handling or based on mechanical damage.
