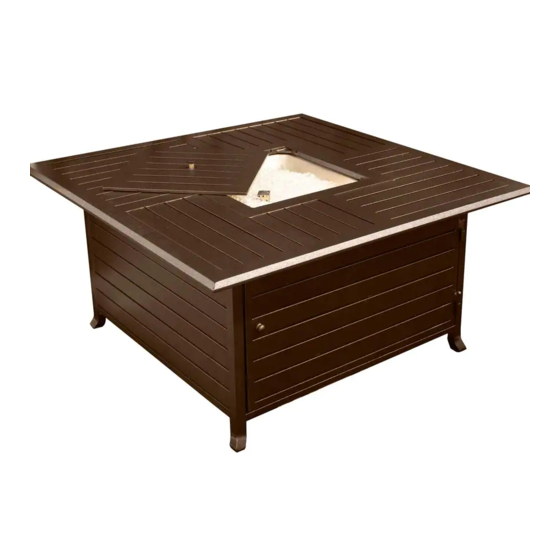

Hiland F-1108-FPT Owner's Manual

Outdoor fire pit table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
ANS Z83.26-2014 ・ CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customerservice
department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday –Friday. Or email the Warranty
Department at warranty@azpatioheaters.com.
Purchase Date
1
OWNER'S MANUAL
OUTDOOR FIRE PIT TABLE
MODEL # F-1108-FPT
DANGER
WARNING:
WARNING
For Outdoor Use Only
WH17/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-1108-FPT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hiland F-1108-FPT

Summary of Contents for Hiland F-1108-FPT

  • Page 1 OWNER'S MANUAL OUTDOOR FIRE PIT TABLE MODEL # F-1108-FPT DANGER WARNING: For Outdoor Use Only Precaution! The Powder Coating paint process has become the most WARNING common widely used application in the outdoor furniture category. Unfortunately powder coating is extremely sensitive to Humidity and Moisture.
  • Page 2 HOW TO REMOVE OXIDATION Rub the surface with automotive rubbing or polishing compound to abrade away oxidation. 1. Apply a coat of automotive paste wax to the surface. 2. Allow the wax to dry for a few minutes. 3. Remove residue and polish surface with a clean cloth. Oxidation can also be a problem metal painted surfaces, since the outermost layers of paint are constantly exposed to air and water.

  • Page 3: Replacement Parts List

    REPLACEMENT PARTS LIST PART QUANTITY DESCRIPTION Removeable Burner Cover Table To p Burner Connecting Rod Burner Bracket Side P anel Side Panel with a hole Back-Support Frame Gas Tank Bracket (side) Gas Tank Support (bottom) Door Frame Stud(8x50mm) Bolt (6*20mm) Washer Bolt (6*30mm) Washer Screw Driver...

  • Page 4: Hardware Contents

    HARDWARE CONTENTS Screwdriver Bolt (6*20mm) Bolt (6*30mm) Stud (8x50mm) Qty.1 Washer Washer Qty. 4 Qty. 4 Qty. Washer Wrench Spring Washer Glass Beads Qty. 1 Qty.4 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.

  • Page 5: Explosion - Fire Hazard

    SAFETY INFORMATION DANGER DANGER EXPLOSION - FIRE HAZARD CARBON MONOXIDE HAZARD Keep solid combustibles, such as building materials, This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.

  • Page 6: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and "...

  • Page 7: Operation Checklist

    OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this checklist before each use. Before Operating: 1. Become familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact, and operable. 3.
  • Page 8 ASSEMBLY INSTRUCTIONS 1.Connect (F)(H)(K)(G) Side panel using (M) Bolts (6x30mm)、Washer , like the figure 1 show. Hardware Used Bolt (6x30mm) Washer (M6) 2. Using Bolts and Was her(N) to connect and fix the Gas Tank Bracket and Gas T ank Support (J) into the unit, then put the(R) Guard bar onto the (I) Gas Tank Bracket.(Refer to the following figure2).
  • Page 9 ASSEMBLY INSTRUCTIONS 3.Fix the Burner Bracket (E) Burner(C) onto the Unit. Make sure the switch of the burner is aligned with the Side Panle(G). Then attach the Connecting rod(D) to the Burner(C) by screwing bolt tightly. Hardware Used 4.First fix the Stud(L) to the four conner fixing holes. Then attach the Table Top(B) to the Side panels using Washers, Spring Washers and Nut(S).
  • Page 10 ASSEMBLY INSTRUCTIONS 5.Put the Glass Beads (Q) around the Burner (C). Put the Burner Cover (A) on the burner, when the Fire Pit is NOT in use or after use. 6. Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately.Use a standard 20 lb.
  • Page 11 ASSEMBLY INSTRUCTIONS Adented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gascylinder s of the U.S.
  • Page 12 OPERATION INSTRUCTIONS Leak Check WARNING Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder Connection Connection 1.
  • Page 13 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in operation! • For outdoor use only. Never use inside house, or other Never lean over the fire pit while in use. Failure to comply with these instructions may result in unventilated or enclosed areas.

  • Page 14: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
  • Page 15 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
