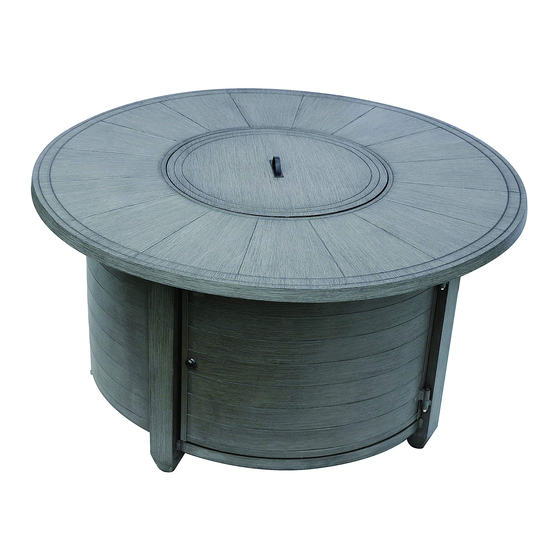

Outdoor fire pit table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? For small parts please call 1-888-775-1330, 8 a.m. - 4
p.m., MST, Monday - Friday. For damaged product, you may have to return to the retailer.
Purchase Date
1
OWNER'S MANUAL
OUTDOOR FIRE PIT TABLE
MODEL # FS-2017-FPT
WARNING
AZPH-ABEST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-2017-FPT and is the answer not in the manual?

Questions and answers

Related Manuals for Hiland FS-2017-FPT

Summary of Contents for Hiland FS-2017-FPT

  • Page 1 OWNER’S MANUAL OUTDOOR FIRE PIT TABLE MODEL # FS-2017-FPT AZPH-ABEST Precaution! The Powder Coating paint process has become the most WARNING common widely used application in the outdoor furniture category. Unfortunately powder coating is extremely sensitive to Humidity and Moisture. A simple process to protect your furniture, especially flat surfaces is to apply a simple coat of good quality car wax prior to using.

  • Page 2: Replacement Parts List

    REPLACEMENT PARTS LIST For small parts please call 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. For damaged product, you may have to return to the retailer. PART DESCRIPTION QUANTITY Burner Cover Table Top Burner Burner Bracket Side Panel 1 Side Panel 2 Side Panel 3 (Burner Controls) Side Panel 4 Door Frame)

  • Page 3: Hardware Contents

    HARDWARE CONTENTS Bolt (M8) Bolt (6*45mm) Bolt (6*15mm) Nut (M8) Washer,Nut（M6) Washer Washer Spring Qty. Qty. Washer Qty. 4 Wrench Screwdriver Glass Beads Qty. Qty. SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.

  • Page 4: Explosion - Fire Hazard

    SAFETY INFORMATION DANGER DANGER EXPLOSION - FIRE HAZARD CARBON MONOXIDE HAZARD Keep solid combustibles, such as building materials, This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a rotten egg”smell.

  • Page 6: Operation Checklist

    OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this checklist before each use. Before Operating: 1. Become familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact, and operable. 3.
  • Page 7 ASSEMBLY INSTRUCTIONS NOTE: It is best to assemble the fire pit with two people. 1.Connect Side Pannle (E,F,G,H) with Bolt (6*30mm)/ Washer (M6)(M) as shown in Figure 1 using Wrench. (make sure that holes1,2 can be found on the side panle and assemble as Figure 1, the two holes help fix the Gas Tank Bracket and Gas Tank Support in the Step 2.) (NOTE: Don’t put the Bolts on too tight.)
  • Page 8 ASSEMBLY INSTRUCTIONS 3. Place the Burner Bracke (D) onto the assembled panels as shown in Figure 3. Move the Burner (C) so that the burner controls can face Panel G. (NOTE: There is a HOLE at the top of Panel G to accommodate the control knob on the burner.) Make sure the switch of the burner is aligned with the(G).
  • Page 9 ASSEMB ASSEMBLLY INST Y INSTR RUCTIONS UCTIONS 5. Attach the 4- Bolt (8*55mm)(L) to the holes of theTableTop (B).Then align the Bolts with the holes in the Burner Bracket and assembled panels and insert the Bolts through the holes. Fix the TableTop to the Burner Bracket and assembled panels with 4 - Washer/Spring Washer/Nuts (L).
  • Page 10 ASSEMB ASSEMBL L Y INST Y INSTR R UCTIONS UCTIONS 7 Connect the hose and regulator to the cylinder The propane gas and cylinder are sold separately Use a standard 20 lb propane cylinder only Use this fire pit only with a propane vapor withdrawal supply system See Chapter 5 of the standard for storage and handling of liquefied petroleum gas ANSI NFPA 58 Your local library or fire department should have this book Storage of an appliance indoors is permissible only if the cylinder is...
  • Page 11 ASSEMBLY INSTRUCTIONS A dent ed, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a p ropane cylinder with a damaged valve co nnection. The propane cylinder must be constructed and ma rked in accor dance with the specifications f or LP gas cylinder s of the U.S.
  • Page 12 OPERATION INSTRUCTIONS Leak Test WARNING Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and do not leak. Hose Regulator Regulator Cylinder connection connection 1 Make 2 3 oz of leak test solution one part liquid dishwashing detergent and three parts water...
  • Page 13 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in operation! Never lean over the fire pit while in use. • For outdoor use only. Never use inside house, or other Failure to comply with these instructions may result in unventilated or enclosed areas.

  • Page 14: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
  • Page 15 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
  • Page 16 REPLACEMENT PARTS LIST For small parts please call 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. For damaged product, you may have to return to the retailer. PART DESCRIPTION QUANTITY Burner Cover Table Top Burner Burner Bracket Side Panel 1 Side Panel 2 Side Panel 3 (Burner Controls) Side Panel 4 Door Frame)
