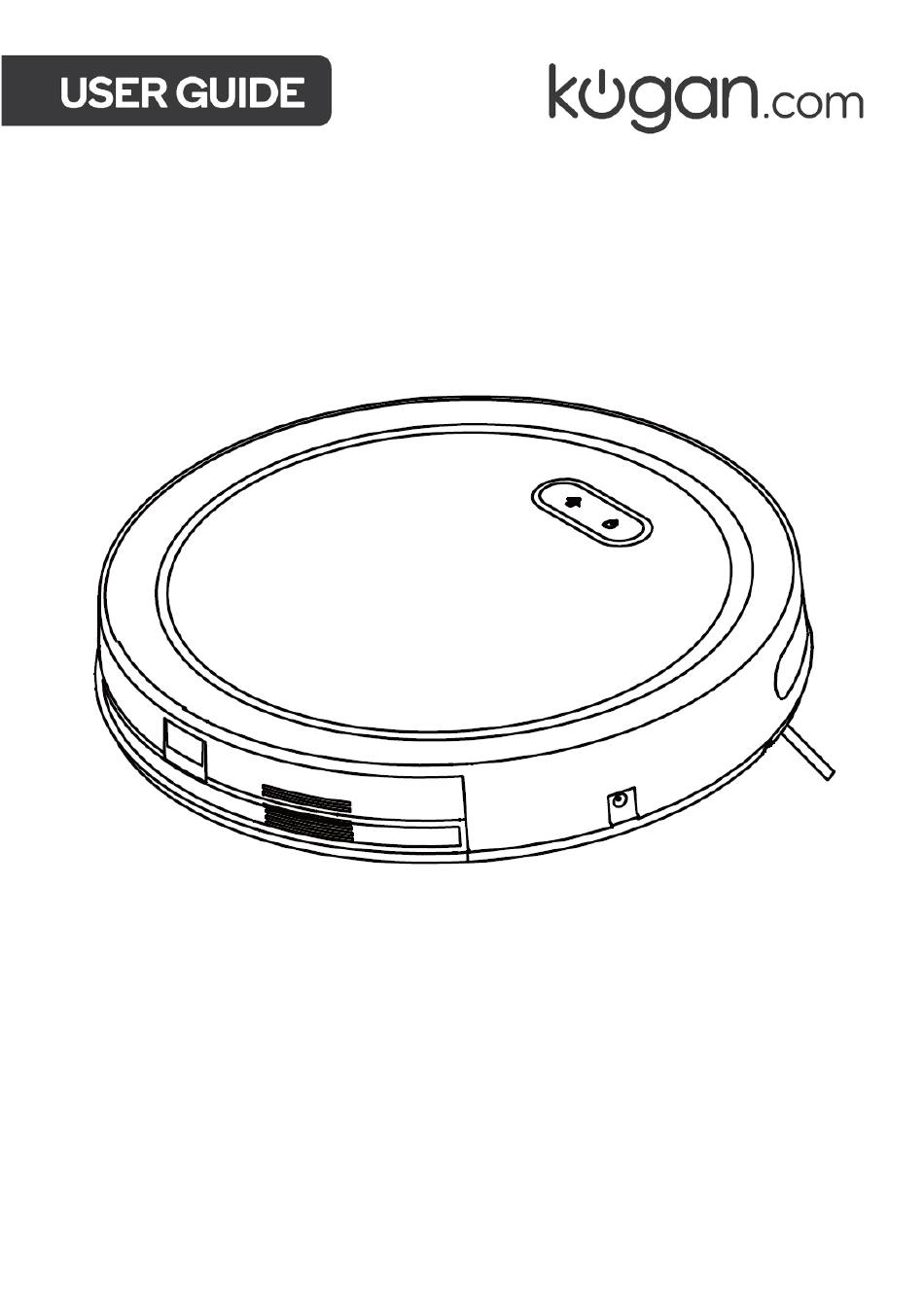

ULTRACLEAN G20 ROBOT VACUUM
WITH MOPPING FUNCTION
KAVACRBG20U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRACLEAN G20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan ULTRACLEAN G20

Summary of Contents for Kogan ULTRACLEAN G20

  • Page 1 ULTRACLEAN G20 ROBOT VACUUM WITH MOPPING FUNCTION KAVACRBG20U...

  • Page 3: Safety And Warnings

    SAFETY & WARNINGS Before using this product, read and follow all the safety instructions listed below. • Any operation not in compliance with this guide is likely to cause damage to the product or injury to the user. Warning Do not use any charger other Do not attempt to disassemble, than the one accompanying repair or modify the product, as...
  • Page 4 Attention Turn OFF the power before Ensure the power cord is tightly transporting or relegating it to connected to the charger or it prolonged storage. Otherwise, may cause electric shock, short the battery may be damaged. circuit, smoke or fire. To prolong battery life, charge robot for at least 16 hours after Check the connection between...
  • Page 5 OVERVIEW Vacuum Return home Start/Pause Panel DC recharging port Power switch Dustbin Bottom Down view sensor Recharging pole piece Universal wheel Side brush Recharging pole piece Down view sensor Down view sensor Battery box Side brush cover Right wheel Left wheel Suction inlet Dustbin...
  • Page 6 Dustbin Fan motor Filter Dustbin conductive pole Dustbin button Charging Dock IR signal emission window Power adapter Negative jack recharging pole Positive recharging pole...
  • Page 7 Remote Control Return home Forward Left Right Backward Stop cleaning Full go Wall following...

  • Page 8: Operation

    OPERATION Charging Connect the power adapter to the power adapter jack on the charging dock. Locate an electrical outlet on the wall close to the ground and plug in the power adapter. Place the charging dock in a flat position on the ground with the back pushed up against the wall.
  • Page 9 Charging status If the battery power is less than 20%, the indicator will begin blinking red. If the battery power is between 20% - 50%, the indicator will blink with a pink light. When the battery power is above 50%, the indicator will blink blue. After the robot is fully charged, the blue light will remain ON for few minutes before automatically turning OFF.
  • Page 10 Press the Return Home button on the panel when robot is in standby mode; the robot will enter into auto charging station. If battery is low, the indicator will illuminate red during the recharging process. The light will begin “breathing”, and the unit is fully charged when the light turns to a solid blue.
  • Page 11 Remote Control Power: Start or pause operation Return Home: Press for the robot to stop cleaning and return to the charging dock. Forward: Press while cleaning and the robot will move in a forward direction. Backward: Press while cleaning and the robot will move in a backward direction.

  • Page 12: Cleaning And Care

    CLEANING & CARE Removal and cleaning of the dustbin Press the dustbin button on the panel and take out the dustbin. Open the upper cover of the dustbin and pour out the dirt and other debris. Removal and cleaning of the side brush Gently pick up the robot and lay it with down its wheels facing up.
  • Page 13 Removal and cleaning of the mop Tear off the mop to clean. After cleaning the mop pad, simply re-attach it to the underside of the robot on the two Velcro strips.

  • Page 14: Specifications

    SPECIFICATIONS Robot Vacuum Rated voltage DC 14V Rated power Operating temperature range -10°C-45°C Input voltage/current 14V/0.5A Infrared remote control 38KHz Φ 310 x 68mm Dimension Weight Battery Lithium-ion 2600mAh Dustbin capacity 650ml Charging Dock Dimension L x W x H: 194 x 15 x 105mm Input voltage/current 14V/0.5A Operating temperature range...
  • Page 15 Remote Control Specifications Dimension L x W x H: 150 x 38 x 15mm Battery DC 3V (AAA) Remote control method Infrared Emitting and receiving distance ≤5M Operating temperature range -10°C-45°C Operating humidity range 85RH...

  • Page 16: Troubleshooting

    TROUBLESHOOTING Warning Cause Indicator light Troubleshooting Sound Drive wheel 1 sound The red indicator Check the wheel. If obstructed, 3 times light is ON. remove the obstacle. failure Check if the side brush is 2 sound The red indicator Side brush failure obstructed and clean the side 3 times light is ON.
  • Page 17 IN THE BOX Charging dock Cleaner Power adapter Dustbin station HEPA Side brush Remote control...
  • Page 18 NOTES...
  • Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
