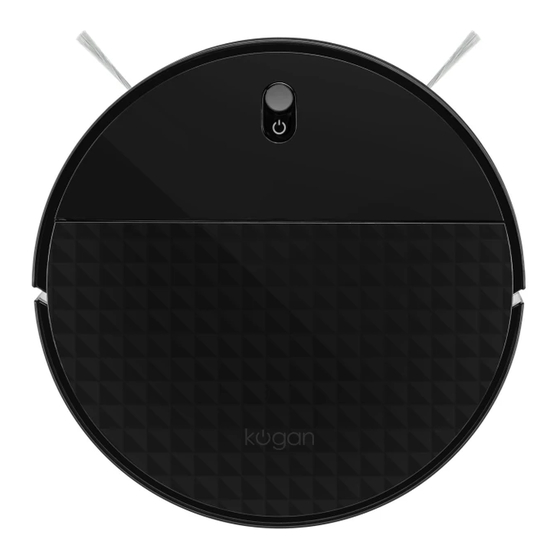

Robot vacuum cleaner and mop

Advertisement

Quick Links

EASYCLEAN R40 ROBOT
VACUUM CLEANER AND MOP
KAVACRBR40A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EASYCLEAN R40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kogan EASYCLEAN R40

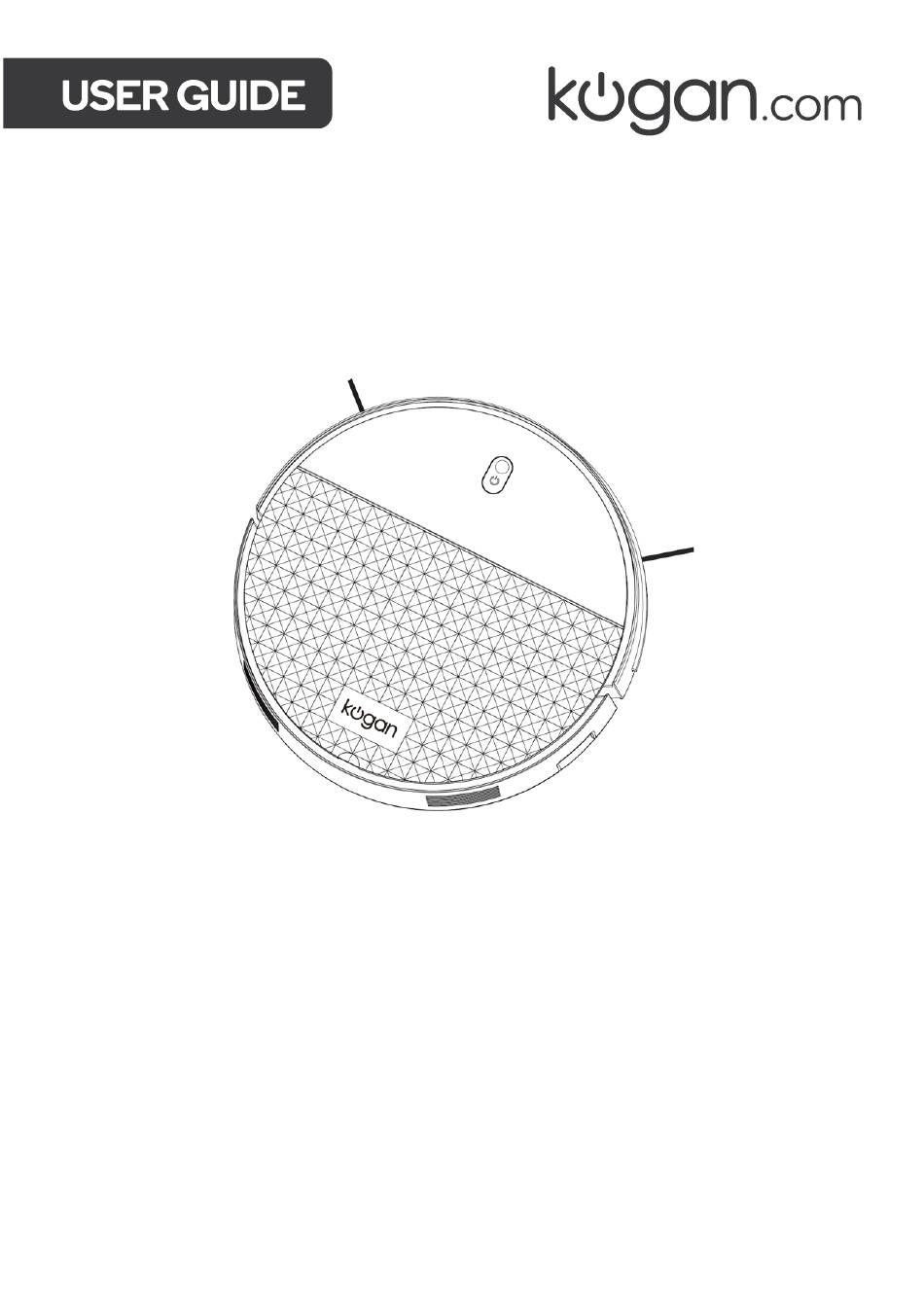

  • Page 1 EASYCLEAN R40 ROBOT VACUUM CLEANER AND MOP KAVACRBR40A...
  • Page 2: Table Of Contents

    Safety & Warnings Components Overview Operation Before First Use Cleaning & Care Troubleshooting Specifications Notes...
  • Page 3: Safety & Warnings

    Make sure the physical barrier is not a trip hazard. • Only use this appliance as described in this user guide. Only use attachments recommended or sold by Kogan.com. • Please make sure your power supply source voltage matches the power voltage marked on the adapter.
  • Page 4 • The appliance contains batteries that are only replaceable by trained professionals. To replace the battery, contact help.Kogan.com for support. • If the appliance will not be used for an extended time, power off and place it in storage.
  • Page 5: Components

    COMPONENTS Vacuum Dust Bin Mop pad Side Brush (x2) (inside the vacuum) (attached under the vacuum) Power adapter Remote control User guide...
  • Page 6: Overview

    OVERVIEW Vacuum Button Upper Cover Infrared Sensor Front Bumper Cover Dust Bin Power Switch Charging Socket Cliff Sensor Universal Wheel Left Brush Right Brush Cliff Sensor Cliff Sensor Right Wheel Left Wheel Suction Inlet Battery Cover Mop pad...
  • Page 7 Dust Bin Dust Bin Cover Dust Bin Filter Remote Control Standby/wake Start/stop Directional buttons Mode Spot clean Edge clean Auto...
  • Page 8: Operation

    OPERATION Quick Operation Charging • Charge the machine using the power adapter. • The indicator will be RED whilst charging. • The indicator will turn GREEN once fully charged. Note: Charge the machine for more than 8 hours for the first- time use.
  • Page 9 Remote Control Function • Press this button, the vacuum enters standby mode. During standby all other buttons are invalid. • Press this button again to wake up the machine. Standby/Wake Press this button to pause/resume cleaning. Start/Stop Press this button to change the machine direction. Directional buttons...
  • Page 10 Press this button to cycle through the different cleaning modes (Auto/Spot/Edge) Mode The vacuum will clean in a random zig-zag route. Auto...
  • Page 11 The vacuum will begin cleaning in a spiral pattern. Spot cleaning Press this button, the machine cleans along the wall or furniture edge Edge cleaning...
  • Page 12 Mop Function (wet/dry clean) • For mopping, damped the mop cloth with water and attach it to the lower part of the vacuum cleaner body. The vacuum cleaner will now operate in wet and dry-cleaning mode simultaneously. • When the mop pad is dirty. rinse it with clean water and reattach it to the vacuum cleaner to continue mopping.
  • Page 13: Before First Use

    BEFORE FIRST USE Checks to the area Ensure there are no loose wires or cables scattered on the ground. This is to prevent the vacuum becoming entangled or dragged along. Ensure all fragile items, those easy to topple, dangerous items, and valuables are removed. This is to prevent items being damaged and personal injuries.
  • Page 14: Cleaning & Care

    CLEANING & CARE Dust Bin Open the dust bin, remove the filter and empty the dirt into the bin. Clean the filter with water. Allow the filter to fully dry before placing it back in the vacuum. Note: Clean the dust bin frequently to ensure effective operation and avoid overworking the motor.
  • Page 15 Clean and dry the mop after every use. Suction Inlet & Side Brushes Clean the suction inlet and Release the screws and remove the two side brushes remove the dust and debris. and clear debris. Suction inlet Note: Use a screwdriver to remove the screws, then hold them in place.
  • Page 16 Additional Components Wipe the three cliff sensors on the underside of the vacuum. Cliff sensor Cliff sensor Cliff sensor Clean the gap between cover and the front bumper. Front bumper...
  • Page 17 Wipe the universal wheel, runner and spindle to reduce noise and avoid debris getting caught in the moving parts. Universal wheel Spindle Runner...
  • Page 18 Clean the Right and Left wheels to reduce noise and avoid debris getting caught in the moving parts. Right wheel Left wheel...
  • Page 19: Troubleshooting

    Turn the vacuum off and then on. Other abnormality or issue If the problem persists, persisting contact help.Kogan.com for support. Note: If the above solution can't solve the problems, contact help.Kogan.com for support. Do not disassemble or attempt to repair the machine by yourself.
  • Page 20: Specifications

    SPECIFICATIONS Work voltage 14.8V Rated power Rated Input Voltage Rated Input Current 0.6A Adapter input 100-240V, 50/60Hz. 0.5A Adapter output DC 19V 0.6A Battery Li-ion 2000mAh...
  • Page 21: Notes

    NOTES...
  • Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
