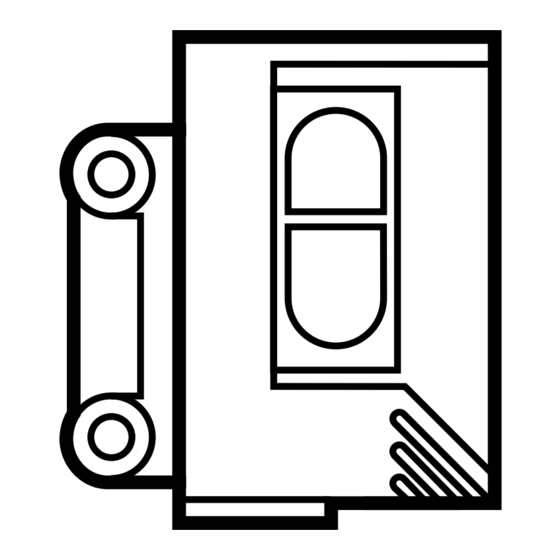

IFM OJ51 Series Operating Instructions Manual
Diffuse reflection sensor with background suppression
Hide thumbs
Also See for OJ51 Series:
- Operating instructions manual (9 pages) ,
- Operating instructions manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for IFM OJ51 Series
Summary of Contents for IFM OJ51 Series
- Page 1 Operating instructions Diffuse reflection sensor with background suppression OJ51xx laser...
- Page 2 Contents 1 Preliminary note3 11 Symbols used 3 2 Safety instructions 3 3 Functions and features 4 4 Installation 4 41 Mounting positions 5 5 Electrical connection5 6 Settings6 61 Setting of the sensitivity with stationary objects* 6 62 Setting of the maximum sensitivity* 7 63 Electronic lock 7 64 Programming the output function* 7 7 Operation 8...
- Page 3 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result → Cross-reference Important note Non-compliance can result in malfunctions or interference Information Supplementary note 2 Safety instructions According to the cULus approval Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure Visible laser light;...
- Page 4 3 Functions and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal Range: → type label (on white paper 200 mm x 200 mm). 4 Installation Side lens* Front lens* 1: LED 2: pushbutton * In the following sections installation and setup are described using the example of the type...
- Page 5 4.1 Mounting positions For demanding applications (small distance between the object and the background) we recommend the following mounting positions: Reflective background ► In case of highly reflective background surfaces and less reflective object surfaces the sensor should be mounted vertically to the background surface Reflective object >...
- Page 6 6 Settings 6.1 Setting of the sensitivity with stationary objects* Go into the programming mode of the unit ► Press for about 2 s until the red LED flashes > The red LED goes out; the yellow and green LEDs flash alternately >...
- Page 7 If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx 2 s The unit then passes into the operating mode with the sensitivity being unchanged If the setting button is not activated for 15 minutes during the programming process, the unit passes automatically into the operating mode with the...
- Page 8 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses ► Do not try to open the module enclosure There are no user - serviceable components inside Technical data and further information at wwwifmcom...
